Optical element, and display device, electronic apparatus, lighting device using the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Sep 11, 2015
filing date -
Sep 12, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

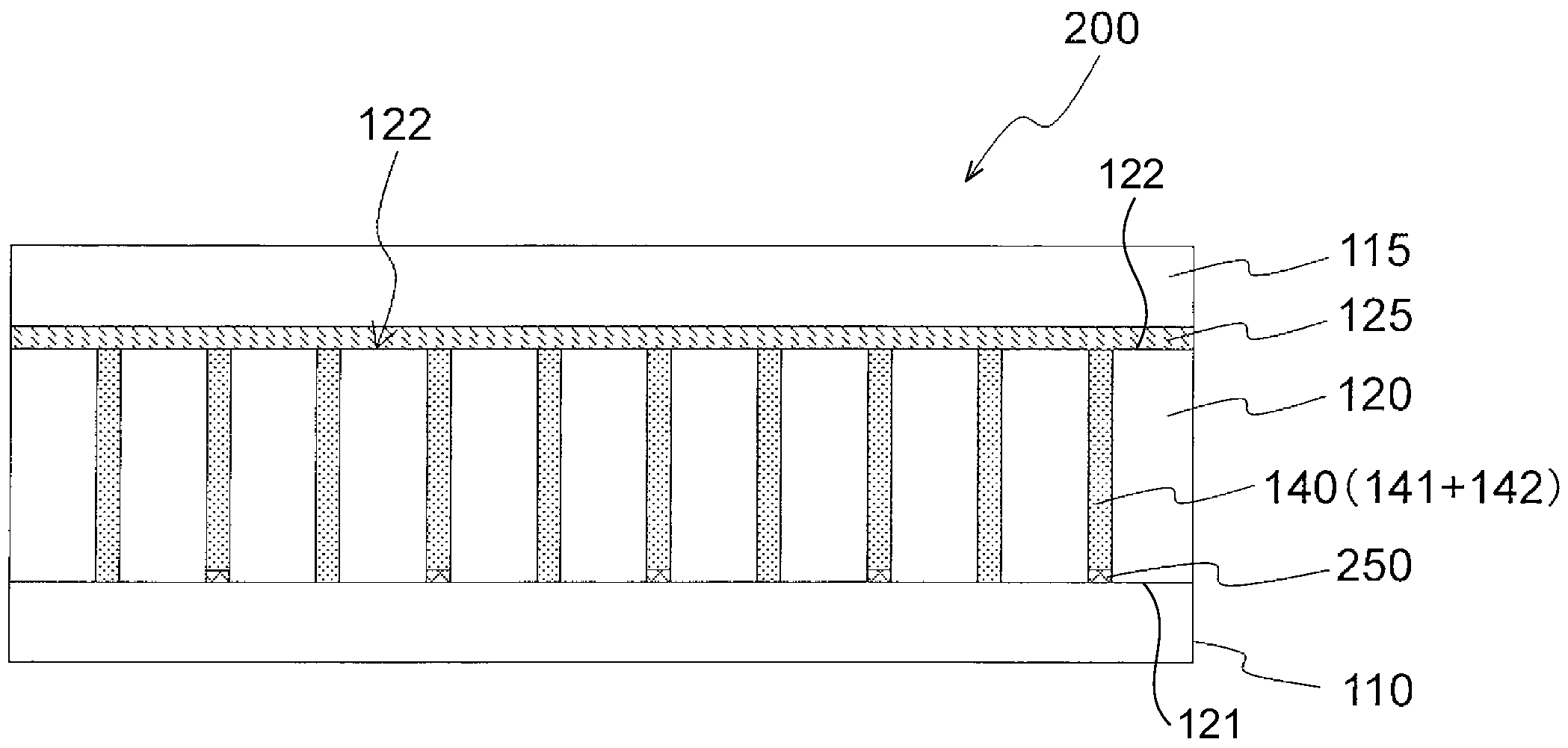

There is such an issue with the well-known optical element that it is difficult to achieve a high transmittance since the transmittance is determined according to the pattern size of the light transmission regions, so that the luminance of the display device to which such optical element is mounted is deteriorated. Provided is an optical element which employs a structure in which the shape of a conductive pattern where electrophoretic particles cohere in a wide viewing field mode is formed in a comb-like shape and plural stages and plural rows of light transmission regions are disposed in the spaces between the comb teeth. This makes it possible to exclude the electrophoretic particles from the regions other than the comb-like electrode for allowing the light to transmit that part.
