Minigun with improved barrel clamp
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Oct 13, 2017
filing date -
Jun 3, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

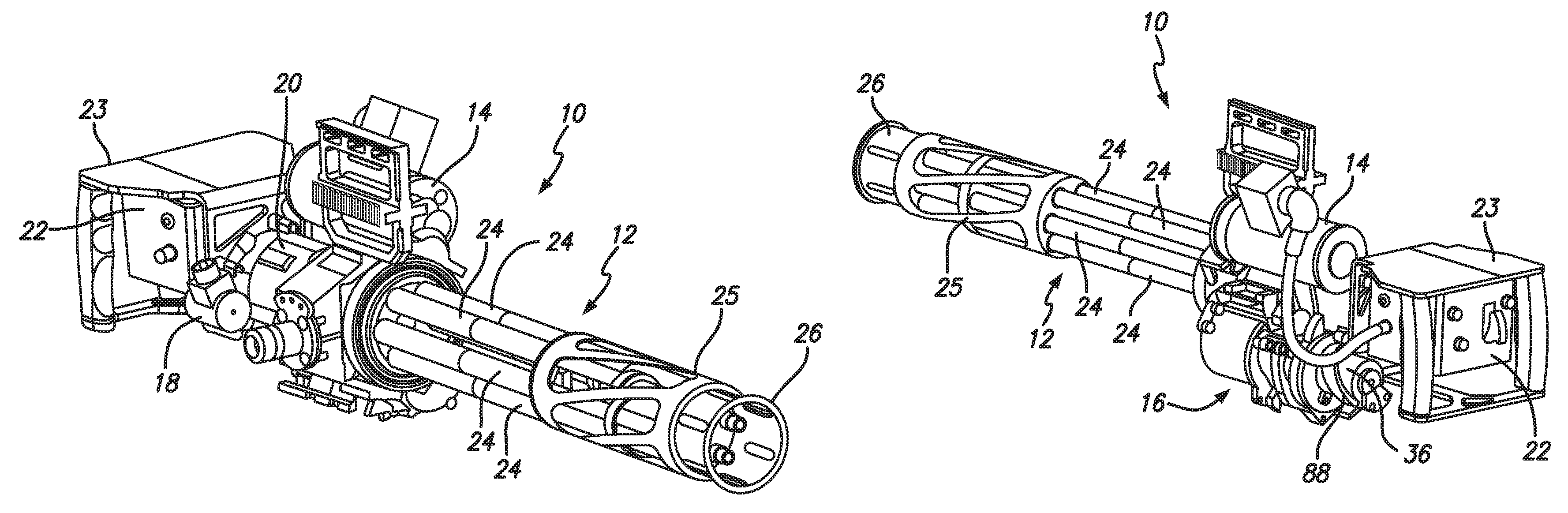

An improved barrel clamp assembly for a multi-barreled minigun includes a barrel clamp tube having a front end, a rear end, and a plurality of longitudinal openings extending along a portion the length of the tube between the front end and the rear end. An impeller is mounted in the barrel clamp tube between the tube front end and the tube rear end. The impeller includes a plurality of impeller blades that are spaced around a periphery of the impeller and that project forward from a rear flange portion of the impeller and the impeller blades define a plurality of air channels. A barrel assembly includes the barrel clamp tube, a flash suppressor mounted to the front end of the barrel clamp tube, and a barrel clamp collar mounted to the rear end of the barrel clamp tube. The impeller is mounted to the barrel clamp tube between the flash suppressor and the barrel clamp collar.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- F41F Class
- 36 Applications Filed
- 31 Patents Issued To-Date
- 86.12 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F41F Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
