Gasket and assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
May 27, 2013
filing date -
Oct 30, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

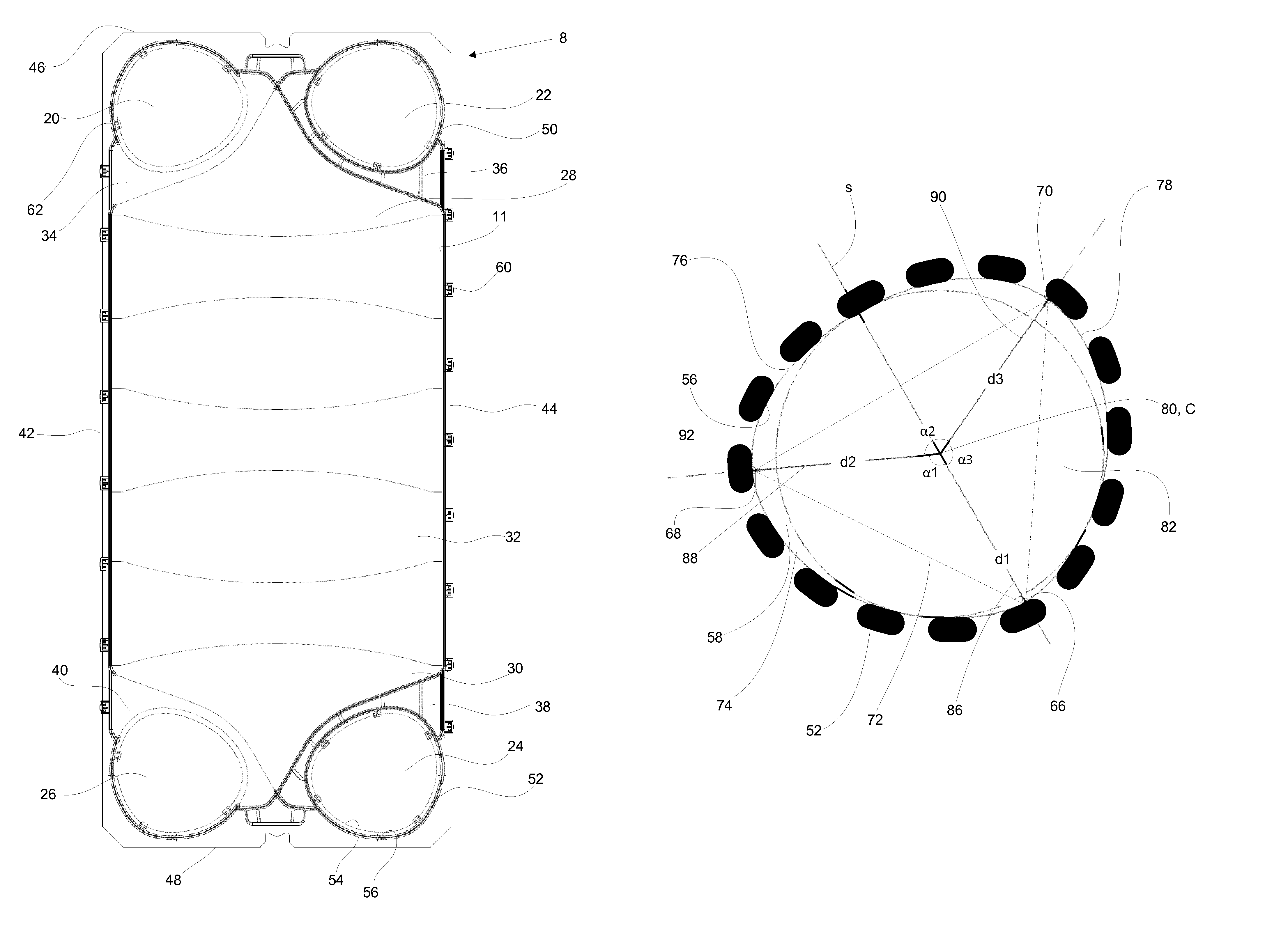

A gasket comprises an annular gasket portion arranged to enclose a port hole of a heat exchanger plate. An inner edge of the gasket portion defines an area including a reference point coinciding with a center point of a biggest imaginary circle fittable within the area. The area has a form defined by a number of corner points of an imaginary plane geometric figure of which at least one is displaced from an arc of the circle, and the same number of thoroughly curved lines connecting the corner points, wherein a first corner point is a first distance from the reference point, a second one is closest to the first corner point in a clockwise direction and on a second distance from the reference point, and a third one is closest to the first corner point in a counter clockwise direction and on a third distance from the reference point.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- F28D Class
- 654 Applications Filed
- 552 Patents Issued To-Date
- 84.41 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F28D Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
