Fluid distribution system for optimising consumption of energy
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Jun 17, 2013
filing date -
Jun 17, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

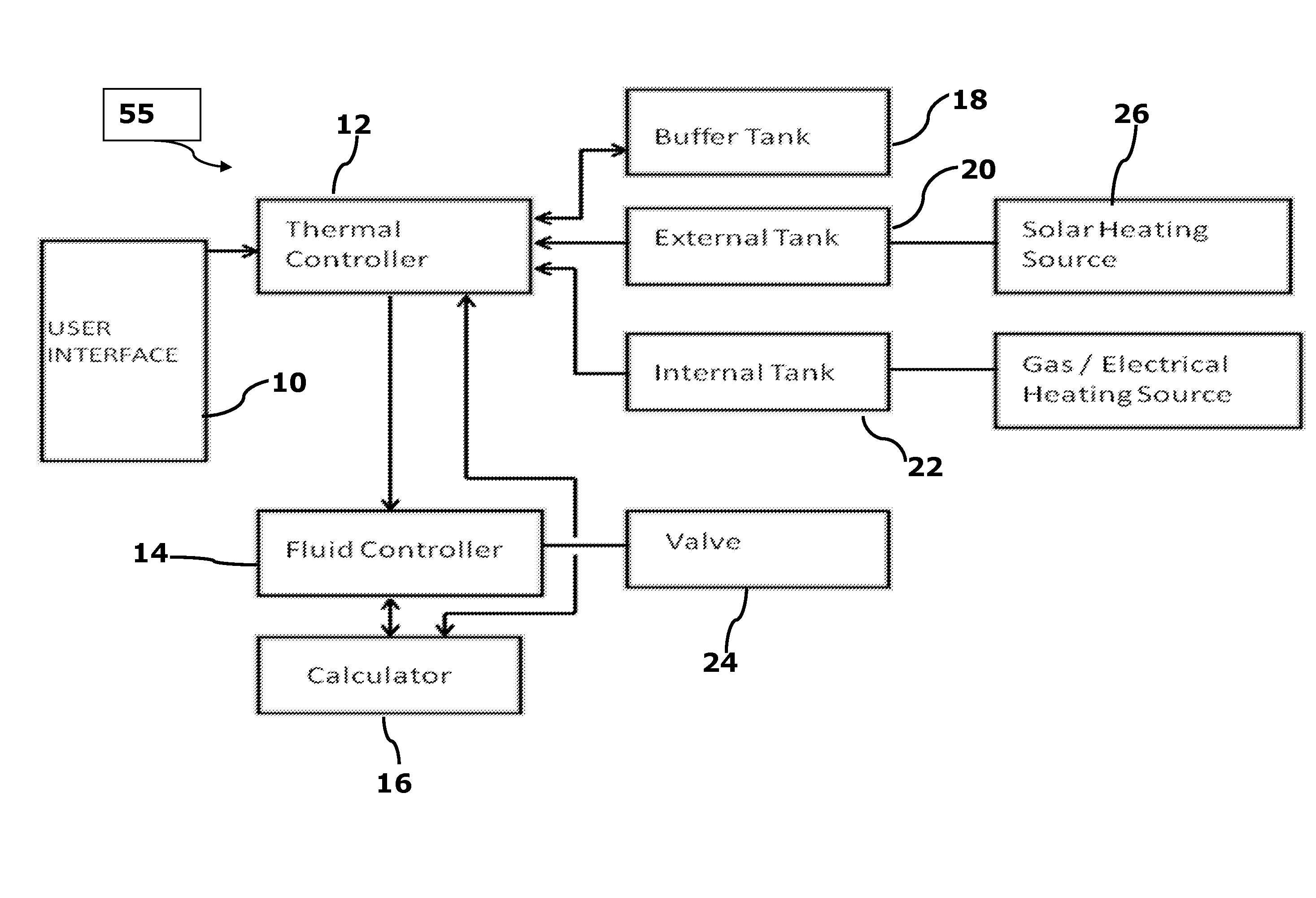

A fluid distribution system for optimizing consumption of energy is provided comprising: a thermal controller configured to be connected to an external fluid tank containing external fluid having an external fluid temperature adapted to be heated by solar energy, and to an internal fluid tank containing an internal fluid having an internal fluid temperature and a heater adapted to be heated by a non-renewable energy, the thermal controller being configured to be connected to thermostats located at the internal and external tanks for determining the internal fluid temperature and the external fluid temperature; a valve in fluid communication with the internal and external tanks; a fluid controller connected to the thermal controller and to the valve, the fluid controller being configured to operate the valve based on the internal and external fluid temperatures in such a manner to optimize consumption of the non-renewable energy for heating the internal fluid.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2013 Application Filing Year
- F24J Class
- 366 Applications Filed
- 309 Patents Issued To-Date
- 84.43 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F24J Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
