Wood burning fireplace assembly with automatic igniter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
May 20, 2016
filing date -
Jun 8, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

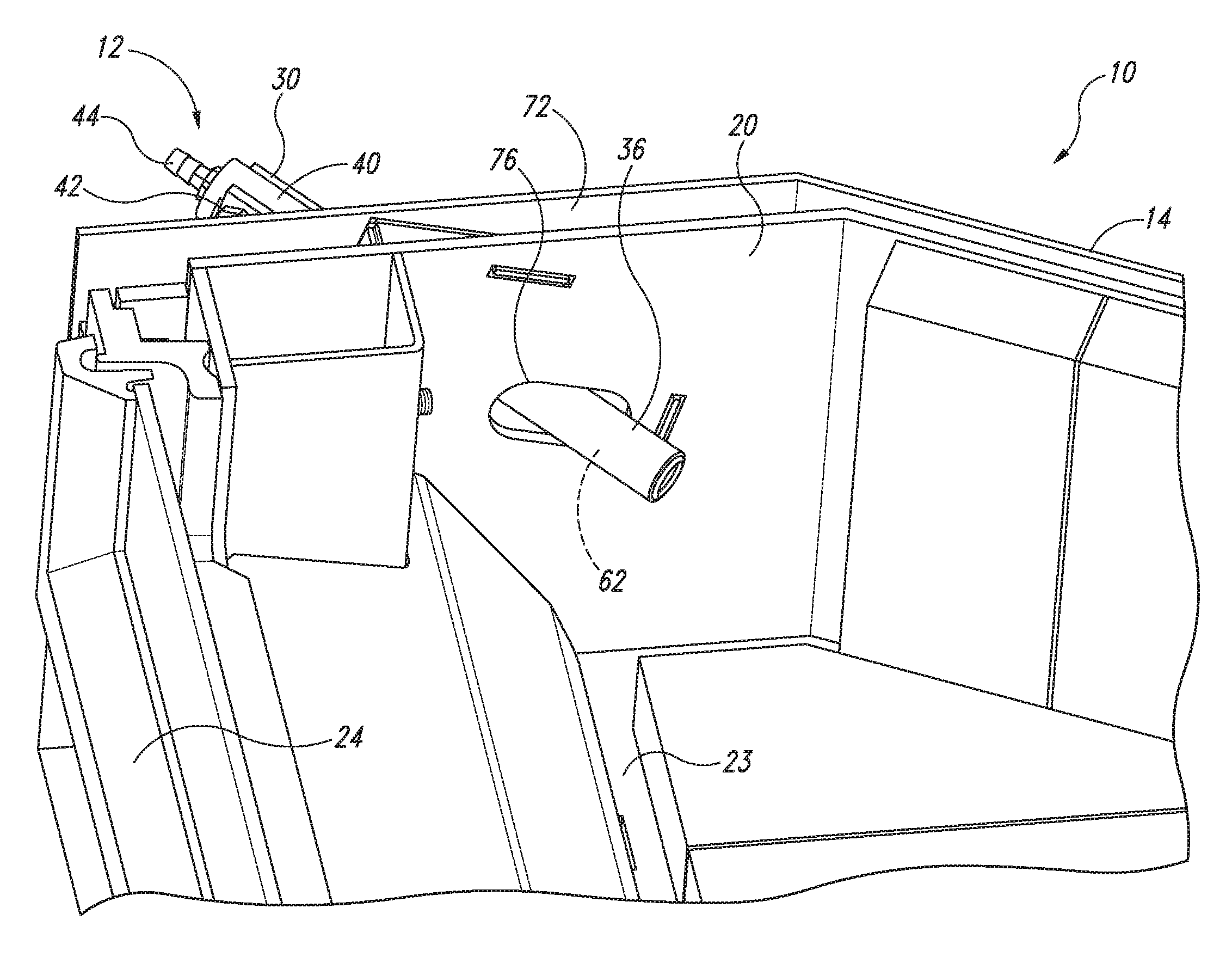

A fireplace assembly having a firebox, an igniter assembly coupled to the firebox and containing a heating element, a first portion of the igniter assembly extending through an aperture in a firebox wall, the igniter assembly having a first connector coupled to the heating element and coupleable to power source, and having a second connector coupleable to an air source and positioned to provide air flow through the igniter assembly over the heating element and into the firebox. A controller is operatively coupled to the igniter assembly and a temperature sensor. The controller controls operation of the heating element, the temperature sensor, and the air flow through the igniter assembly, and can activate and deactivate the igniter assembly based upon the temperature within the firebox.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F24B Class
- 71 Applications Filed
- 34 Patents Issued To-Date
- 47.89 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F24B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
