Apparatus for controlling hydraulic pump for construction machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Grant Date -
Feb 18, 2016
app pub date -
Mar 3, 2014
filing date -
Mar 21, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

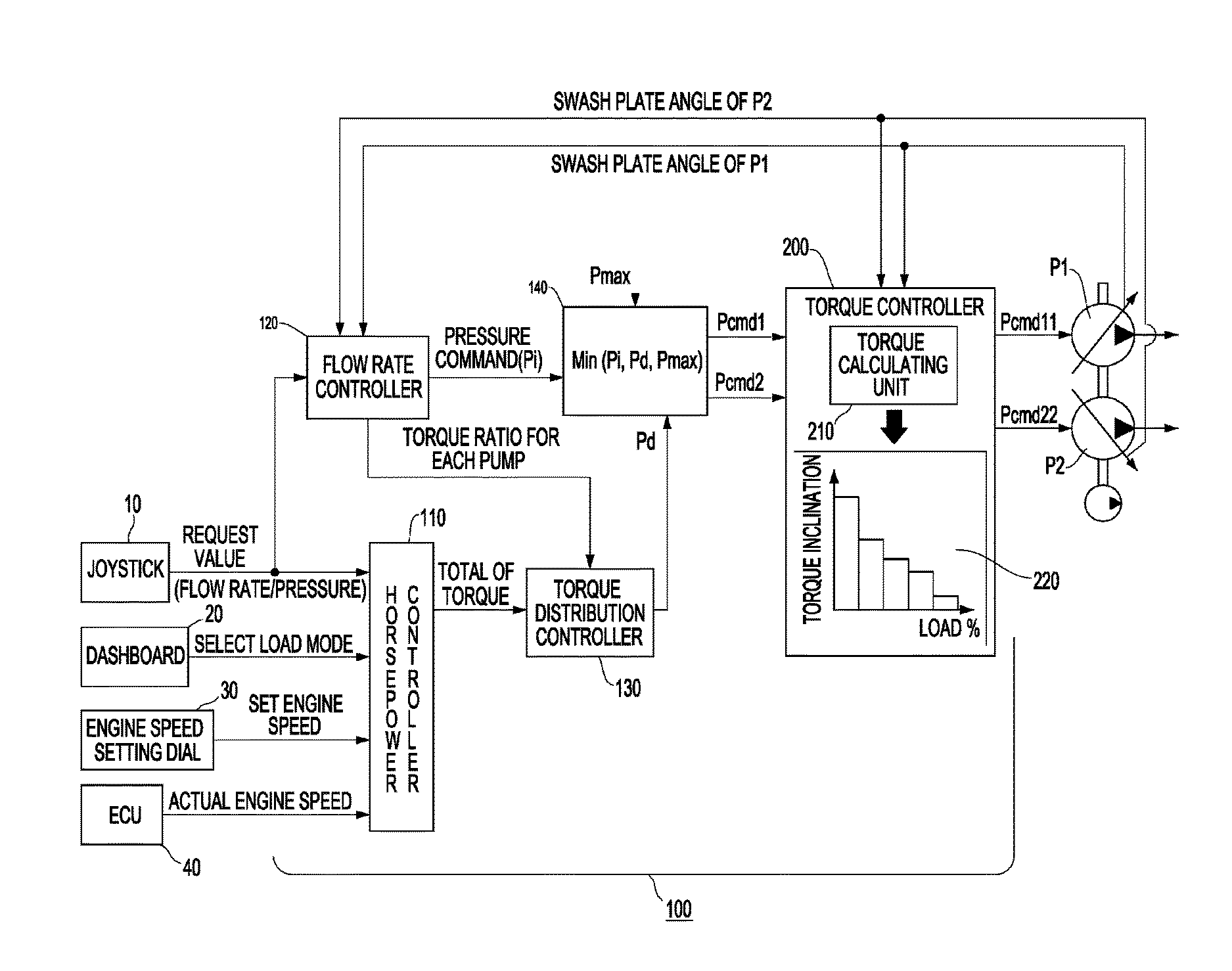

The present disclosure relates to an apparatus for controlling a hydraulic pump for a construction machine. The apparatus for controlling the hydraulic pump for the construction machine according to the present disclosure includes: a hydraulic pump control device configured to generate first and second pump commands for controlling first and second hydraulic pumps so that the first and second hydraulic pumps generate pump torque corresponding to a request value; and a torque controller configured to generate first and second corrected pump commands, which are the corrected first and second pump commands, by a torque inclination map generated by reflecting a dynamic characteristic of an engine, and to provide the first and second corrected pump commands to the first and second hydraulic pumps.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F15B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
