Wind turbine with oil lubrication
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Sep 16, 2011
filing date -
Sep 21, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

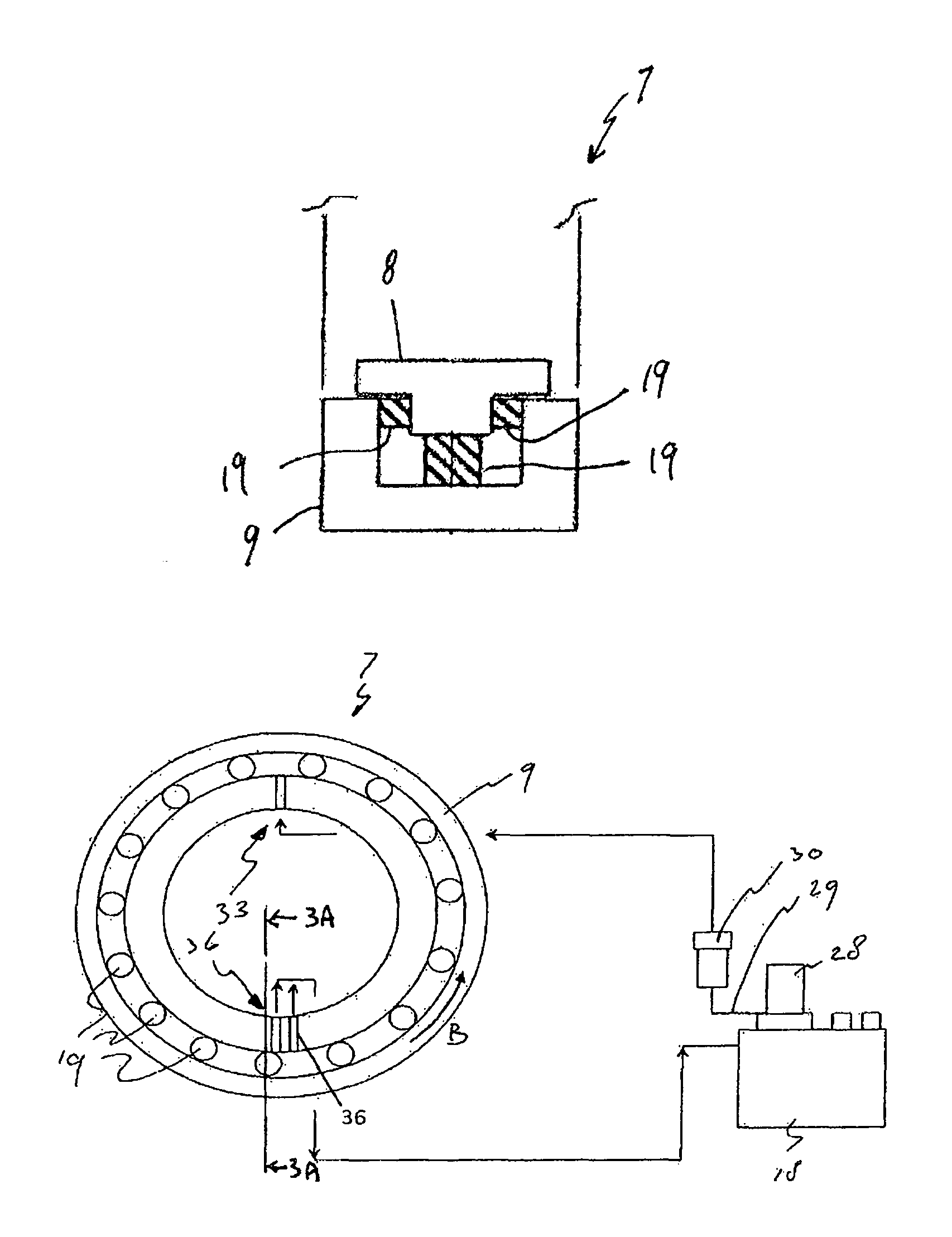

Lubrication method and wind turbine comprising a rotor with a hub supported by a main bearing with two opposite bearing races coaxially spaced by rotatably fitted bearing rollers in a lubrication area which is sealed by oil sealing rings between the bearing races. The lubrication area comprises one or more oil inlets operatively connected to an oil supply, and one or more oil outlets. The vertical distance between the outlet(s) and the lowest point of the lubrication area is 0-0.2 times the inner diameter of the outer bearing race. The inlet (s) and the oil supply are configured to supply an oil flow not exceeding the drain capacity of the one or more outlets.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- F16N Class
- 80 Applications Filed
- 62 Patents Issued To-Date
- 77.50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F16N Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
