Cost reduced variable geometry turbocharger with stamped adjustment ring assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Feb 23, 2011
filing date -
Mar 3, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

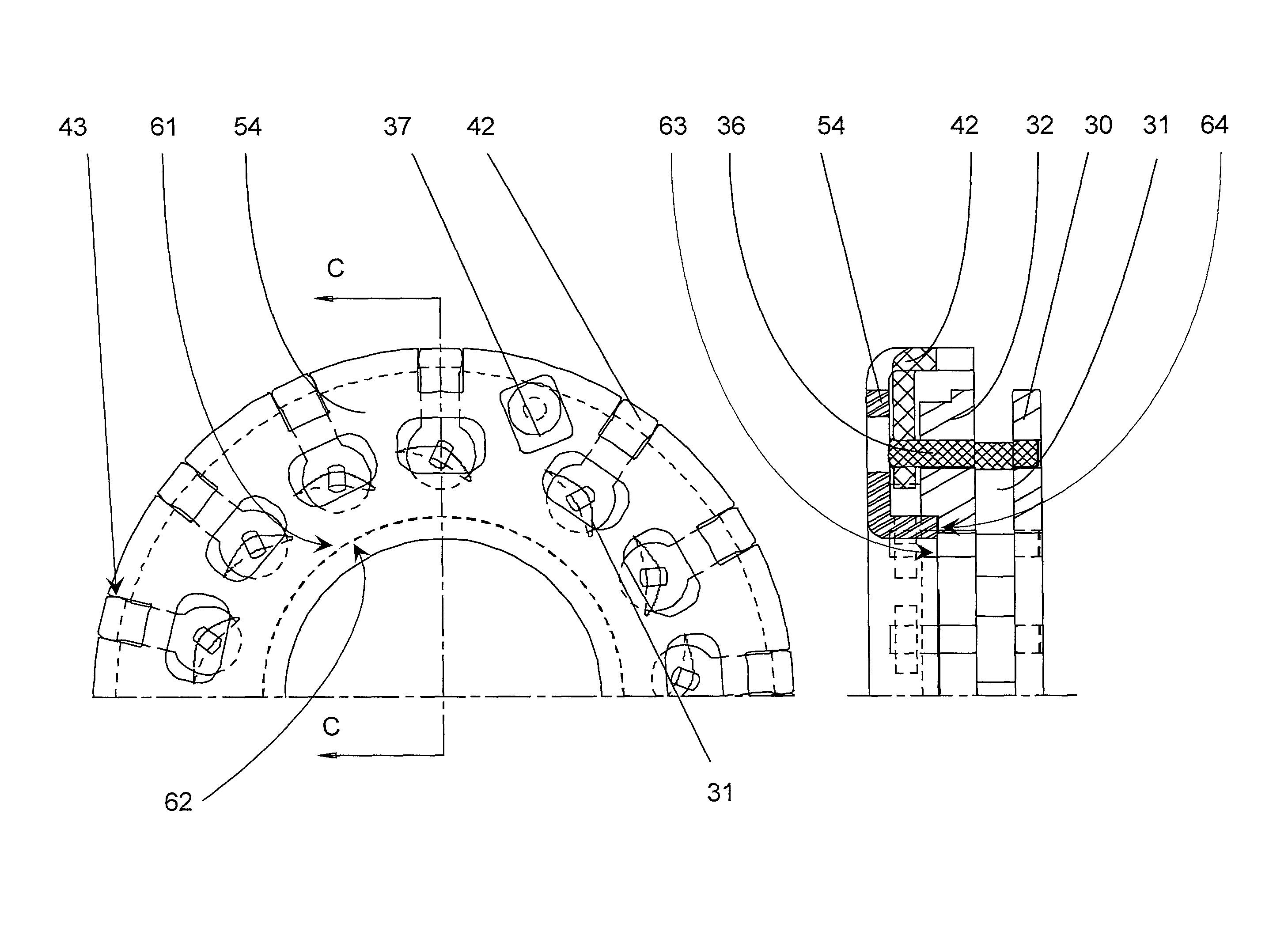

A variable geometry turbocharger is simplified yet able to reliably operate in a robust, cost effective manner. The adjusting ring assembly has a reduced number of parts in the vane adjusting assembly but still operates as it did with the parts in the conventional assembly, but at lower part and capital cost. The adjusting ring is constrained axially and radially by interaction with an inner diameter and an abutment provided in the upper vane ring of the vane pack.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2011 Application Filing Year
- F02B Class
- 870 Applications Filed
- 717 Patents Issued To-Date
- 82.42 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F02B Class
- 26.31 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
