Submerged combustion melter comprising a melt exit structure designed to minimize impact of mechanical energy, and methods of making molten glass
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Aug 3, 2015
filing date -
Apr 27, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

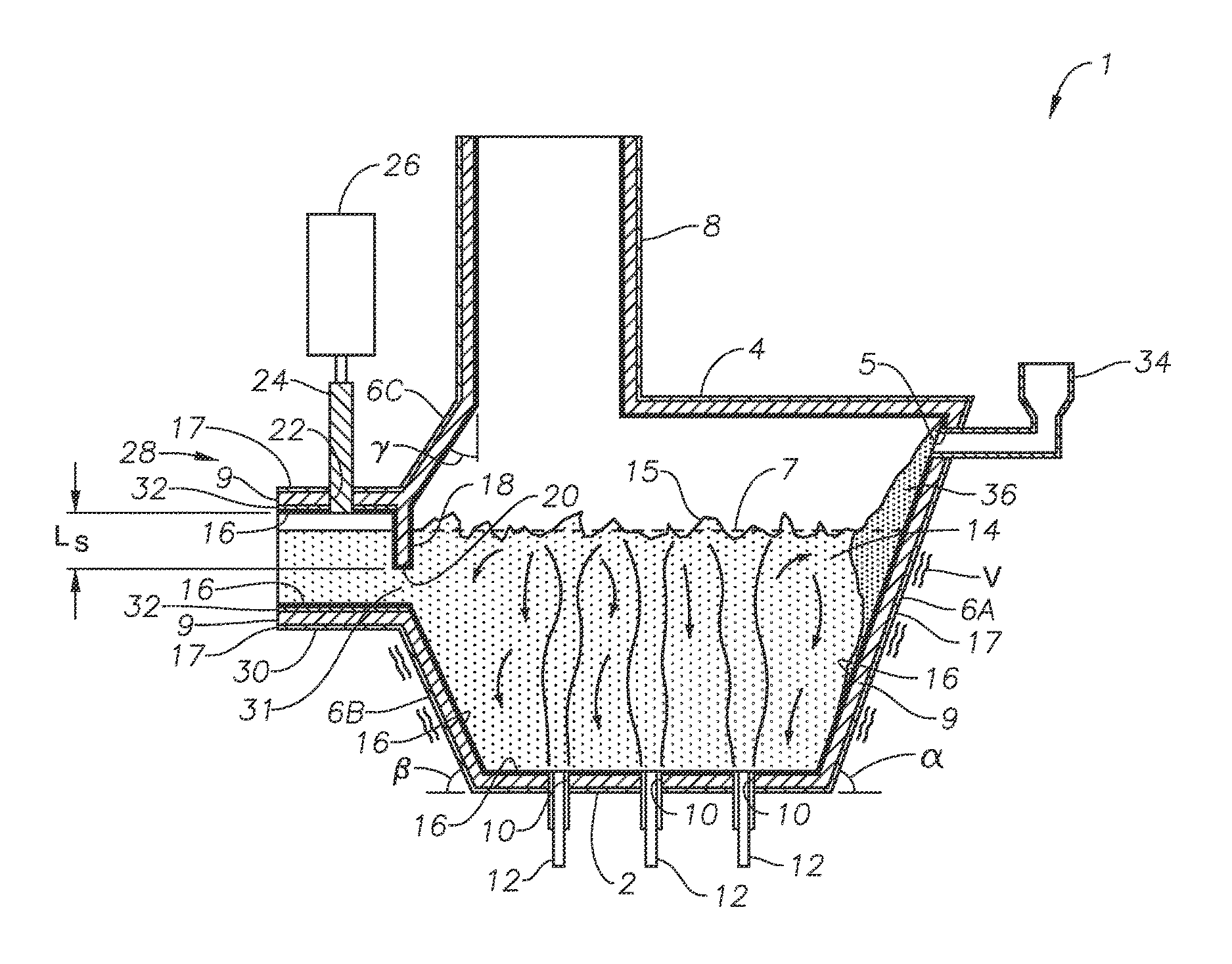

A melter apparatus includes a floor, a ceiling, and a wall connecting the floor and ceiling at a perimeter of the floor and ceiling, a melting zone being defined by the floor, ceiling and wall, the melting zone having a feed inlet and a molten glass outlet positioned at opposing ends of the melting zone. Melter apparatus include an exit end having a melter exit structure for discharging turbulent molten glass formed by one or more submerged combustion burners, the melter exit structure fluidly and mechanically connecting the melter vessel to a molten glass conditioning channel. The melter exit structure includes a fluid-cooled transition channel configured to form a frozen glass layer or highly viscous glass layer, or combination thereof, on inner surfaces of the fluid-cooled transition channel and thus protect the melter exit structure from mechanical energy imparted from the melter vessel to the melter exit structure.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- C03B Class
- 530 Applications Filed
- 395 Patents Issued To-Date
- 74.53 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 6 Citation Count
- C03B Class
- 50.57 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
