Packet of smoking articles provided with an inner package having a reclosable extraction opening
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Jun 29, 2015
filing date -
Jul 2, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

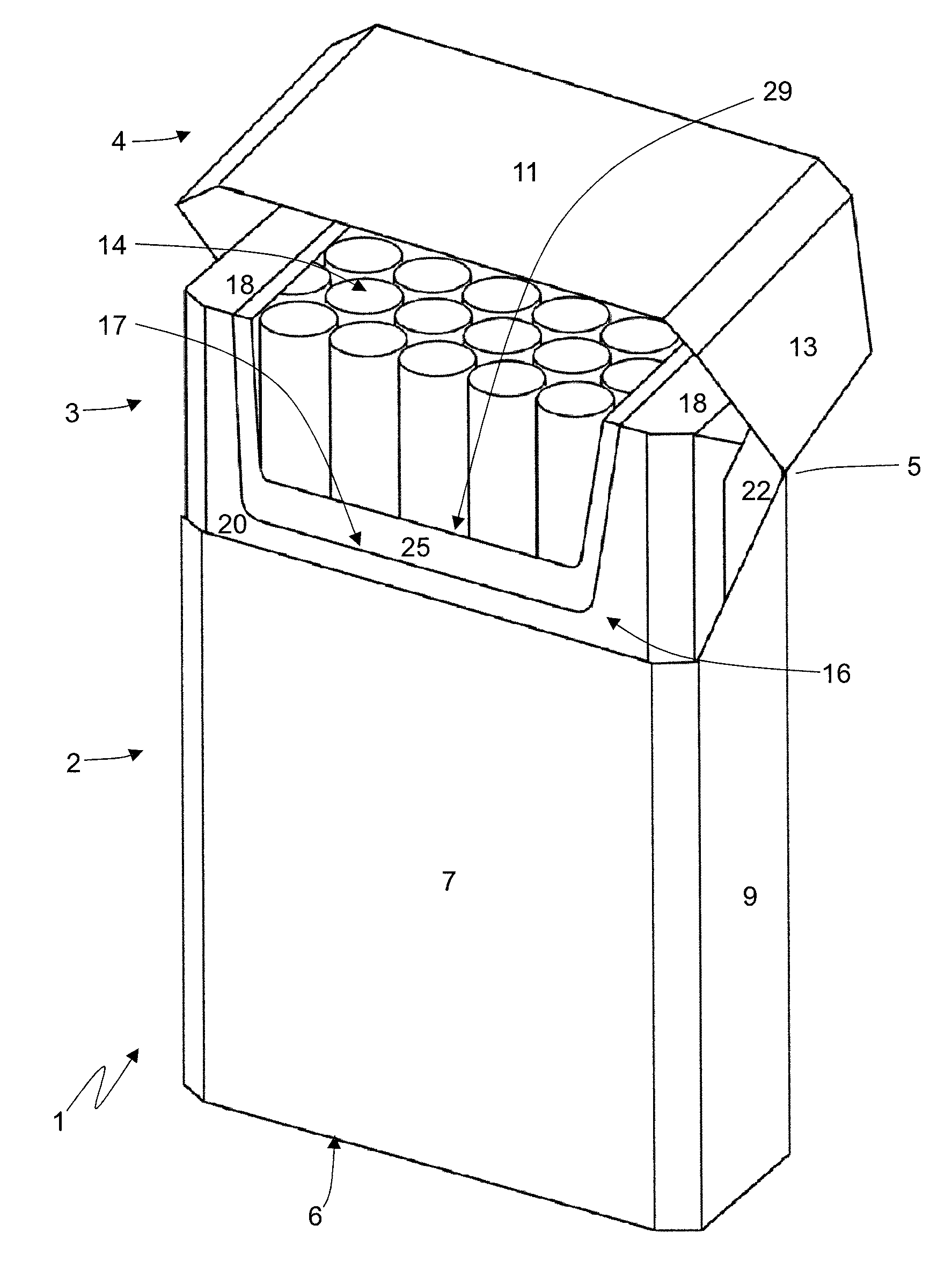

A packet of smoking articles having: a cup-shaped outer container; a cup-shaped lid hinged to the outer container to rotate, with respect to the outer container itself, between an open position and a closed position; a group of articles; an inner package which encloses the group of articles, is housed inside the outer container, and at the top and front has a lift-up portion separated from the rest of the inner package by a pre-weakened U-shaped parting line and is completely torn the first time the packet of smoking articles is opened to expose an article extraction opening; the lift-up portion of the inner package is directly in contact, without the interposition of other elements with an inner surface of the top wall of the lid and with an inner surface of the front wall of the lid.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B65D Class
- 4084 Applications Filed
- 2928 Patents Issued To-Date
- 71.70 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- B65D Class
- 36.20 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
