Automobile structural member and manufacturing method of the same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Apr 4, 2014
filing date -
Apr 4, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

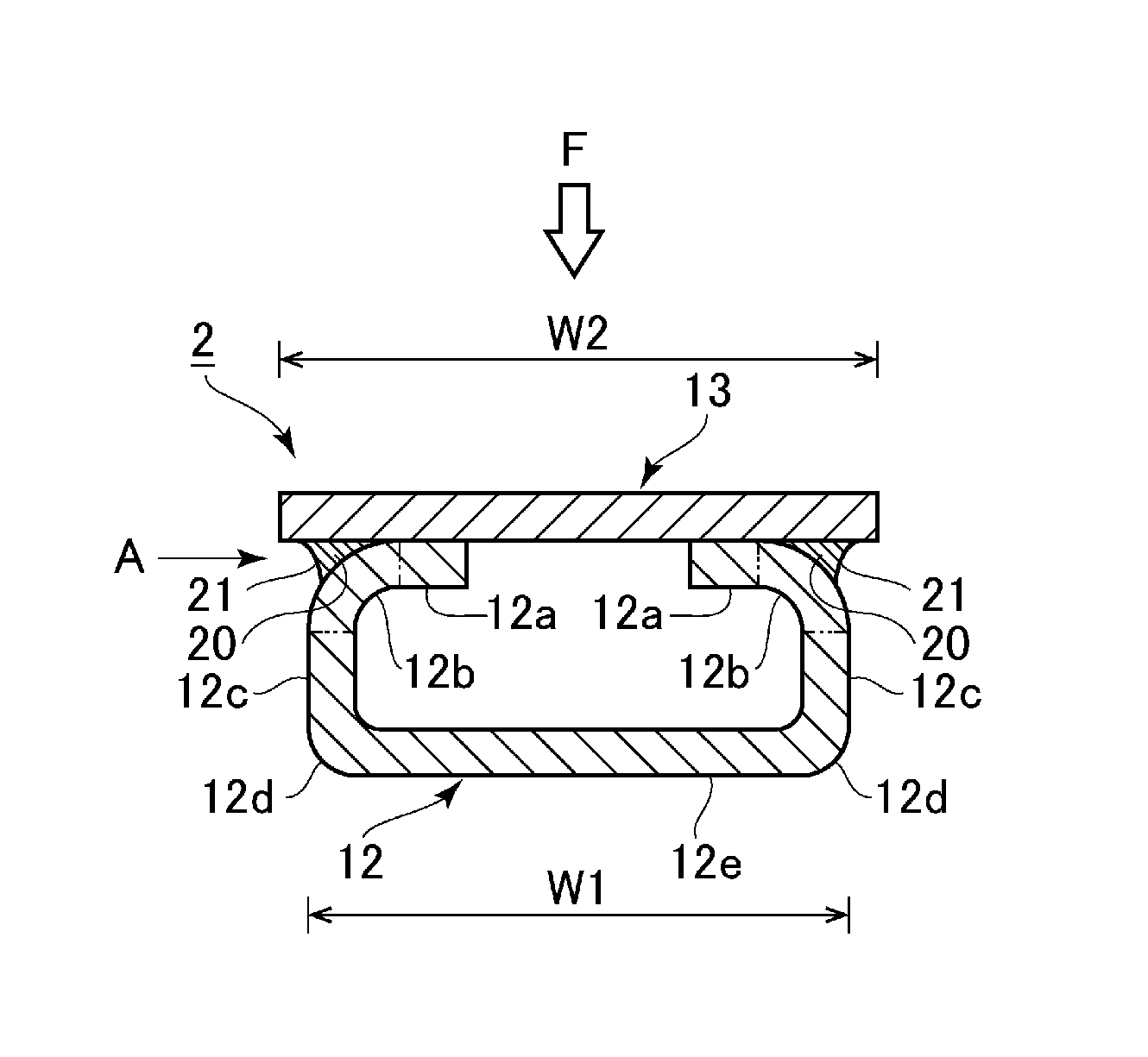

An automobile structural member (2) has a closed transverse section shape constituted with a first composing member (12) and a second composing member (13). The first composing member (12) has a vertical wall portion (12c), a bent portion (12b), and an inward flange (12a), and has a load transmission portion (20) formed in at least a part of a region being a region between the bent portion (12b) and the second composing member (13) and being a region of an extension of the vertical wall portion (12c) toward the second composing member (13) and which joins the bent portion (12b) and the second composing member (13). Thereby, a bending and crushing performance can be improved.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- B23K Class
- 37.97 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
