Tire tread with directional design
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Nov 22, 2013
filing date -
Nov 29, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

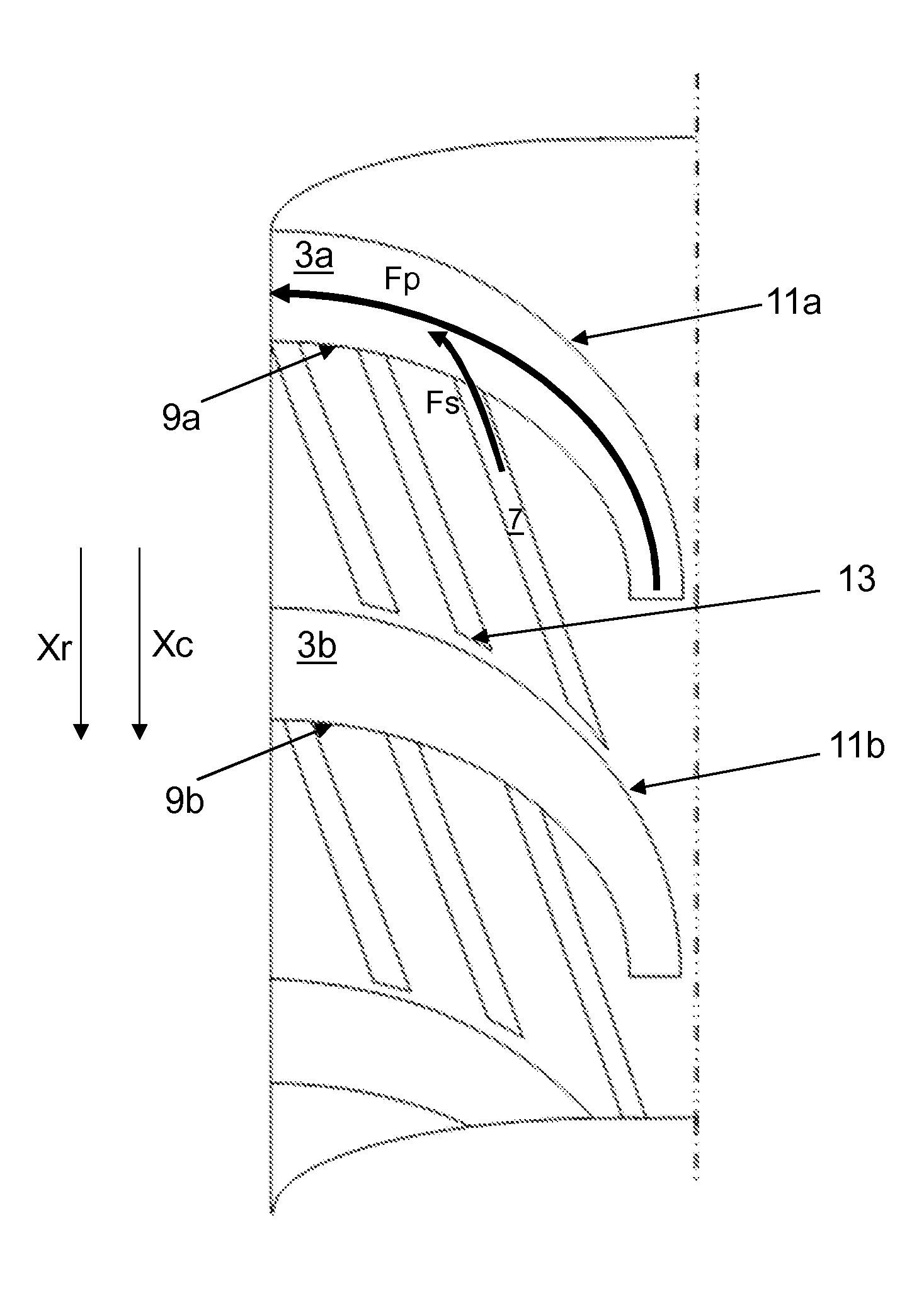

A tread having a plurality of grooves formed on each half of the tread on each side of a midplane X-X′, each opening axially to the outside and extending axially towards the midplane X-X′ so that the plurality of grooves forms a first pattern in the overall shape of a V pointing in a groove direction Xr. The tread includes a plurality of sipes. From a certain degree of wear onwards, all or some of the sipes become enlarged forming cavities extending in an oblique direction forming a second pattern in the overall shape of a V pointing in a cavity direction Xc. Each of these cavities opens into just one of the grooves of the tread, the plurality of grooves forming, at this level of wear, the same first pattern.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2013 Application Filing Year
- B60C Class
- 785 Applications Filed
- 670 Patents Issued To-Date
- 85.36 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60C Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
