Pneumatic vehicle tire, preferably pneumatic commercial vehicle tire
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Grant Date -
Jun 25, 2015
app pub date -
Mar 3, 2015
filing date -
Sep 4, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

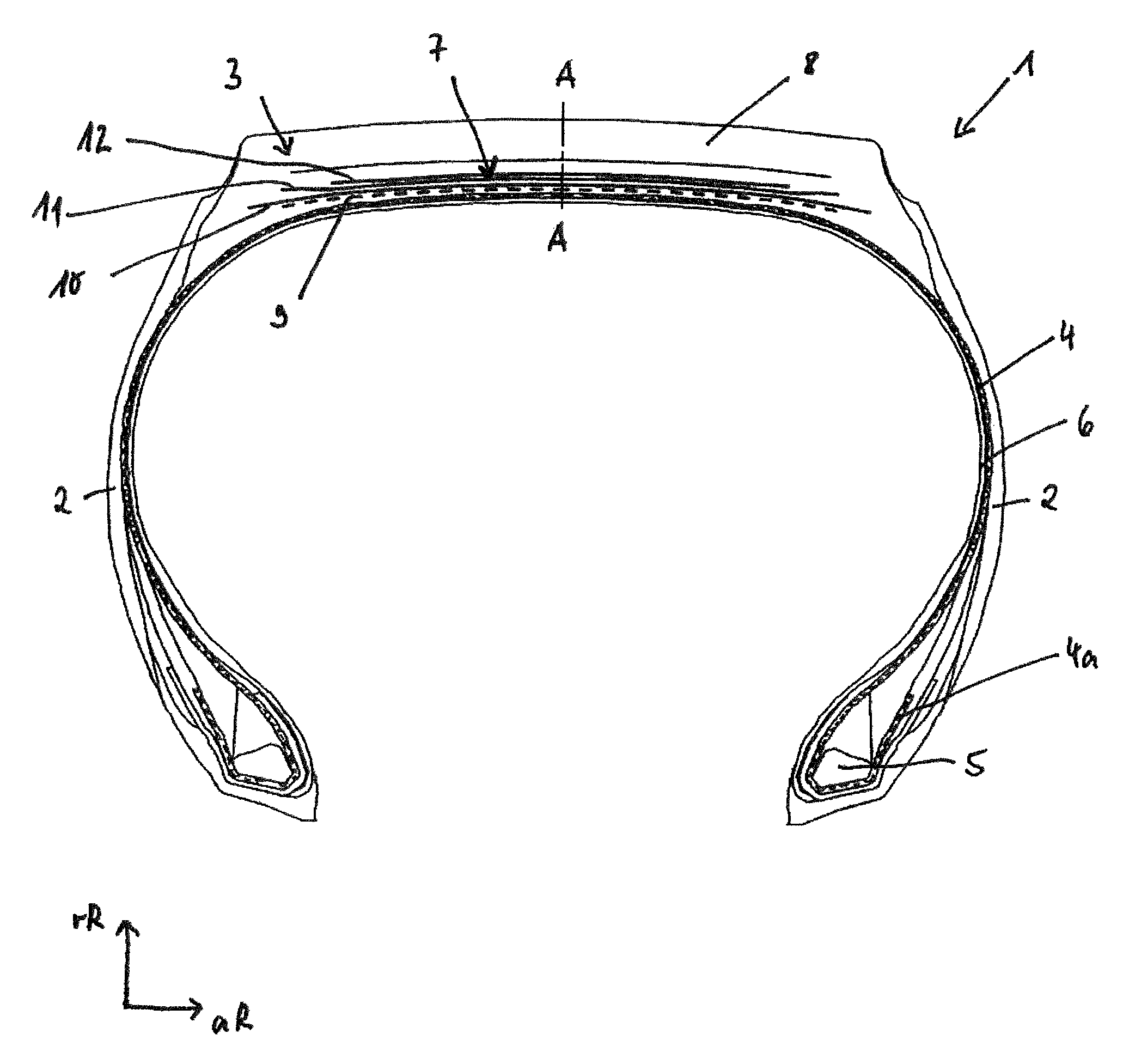

A pneumatic commercial vehicle tire of radial design includes at least a three-ply belt, of which two belt plies are working plies and one radially outermost belt ply is a cover ply. Each of these belt plies includes reinforcements which are made of steel cord and which are embedded in elastomer. The steel cords of each of the three belt plies are coated with brass so as to provide for good elastomer adhesion. The brass coating of the reinforcement supports of the two working plies has a copper proportion of 60 wt. % to 65 wt. % and the brass coating of the reinforcement supports of the cover ply has a copper proportion of 66 wt. % to 70 wt. %.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- D07B Class
- 82 Applications Filed
- 57 Patents Issued To-Date
- 69.52 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- D07B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
