Printer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Apr 25, 2017
filing date -
Apr 28, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

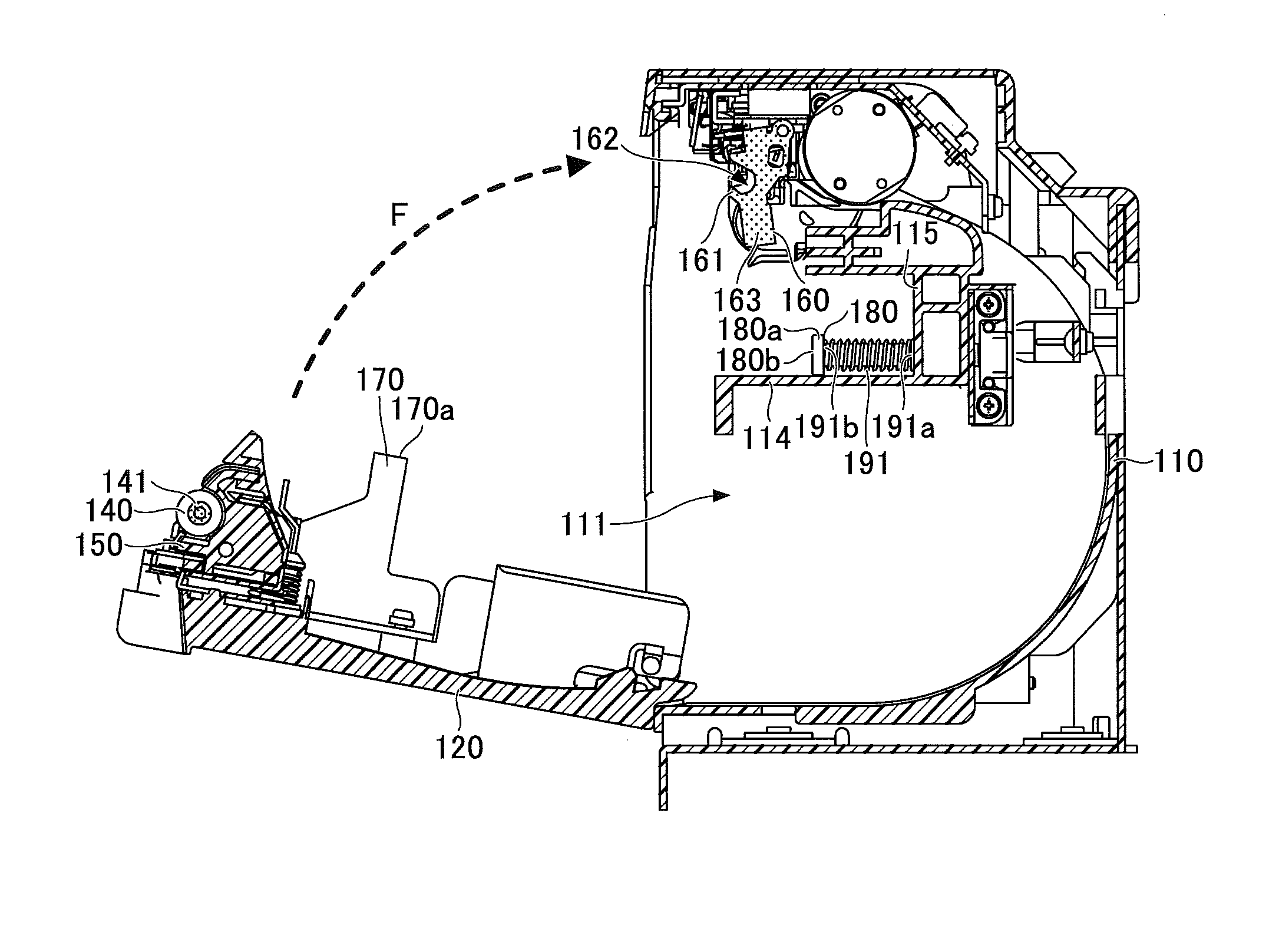

A printer includes a body configured to accommodate recording paper, a lid attached to the body to be openable and closable relative to the body, a pressing part on the lid, a platen roller attached to the lid, a movable shaft in the body, a spring that urges the movable shaft, and a lever configured to support bearings of the platen roller with the lid being closed. The movable shaft is provided at a position corresponding to the pressing part to be movable in a longitudinal direction of the movable shaft, and is pressed by the pressing part to generate a spring force in the spring during closure of the lid.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41J Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
