Metal foil for base material and producing method thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Grant Date -
Sep 12, 2013
app pub date -
Nov 16, 2011
filing date -
Nov 17, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

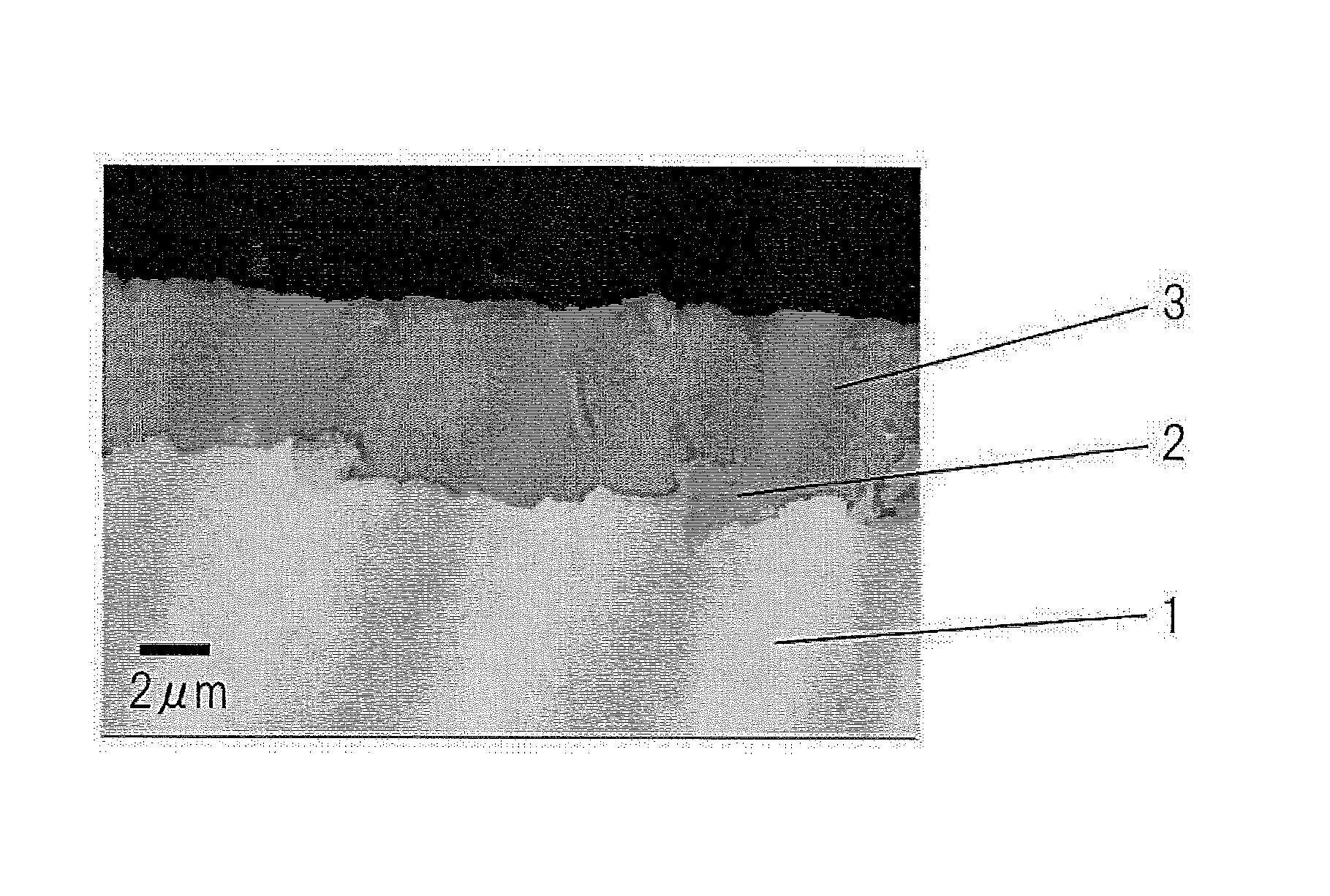

A metal foil including: a steel layer whose thickness is 10 to 200 μm; an Al-containing metal layer arranged on the steel layer; and plural granular alloys which exist in an interface between the steel layer and the Al-containing metal layer, wherein, when a cutting-plane line of a surface of the Al-containing metal layer is defined as a contour curve and an approximation straight line of the contour curve is defined as a contour average straight line, a maximum point, whose distance from the contour average straight line is more than 10 μm, is absent on the contour curve, and wherein, when an equivalent sphere diameter of the granular alloys is x in units of μm and a thickness of the Al-containing metal layer is T in units of μm, the granular alloys satisfy x≦0.5T.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 27, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 27, 2029 |
