Medical injection device
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 27, 2018
Issued Date -
N/A
app pub date -
Mar 15, 2013
filing date -
Apr 20, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

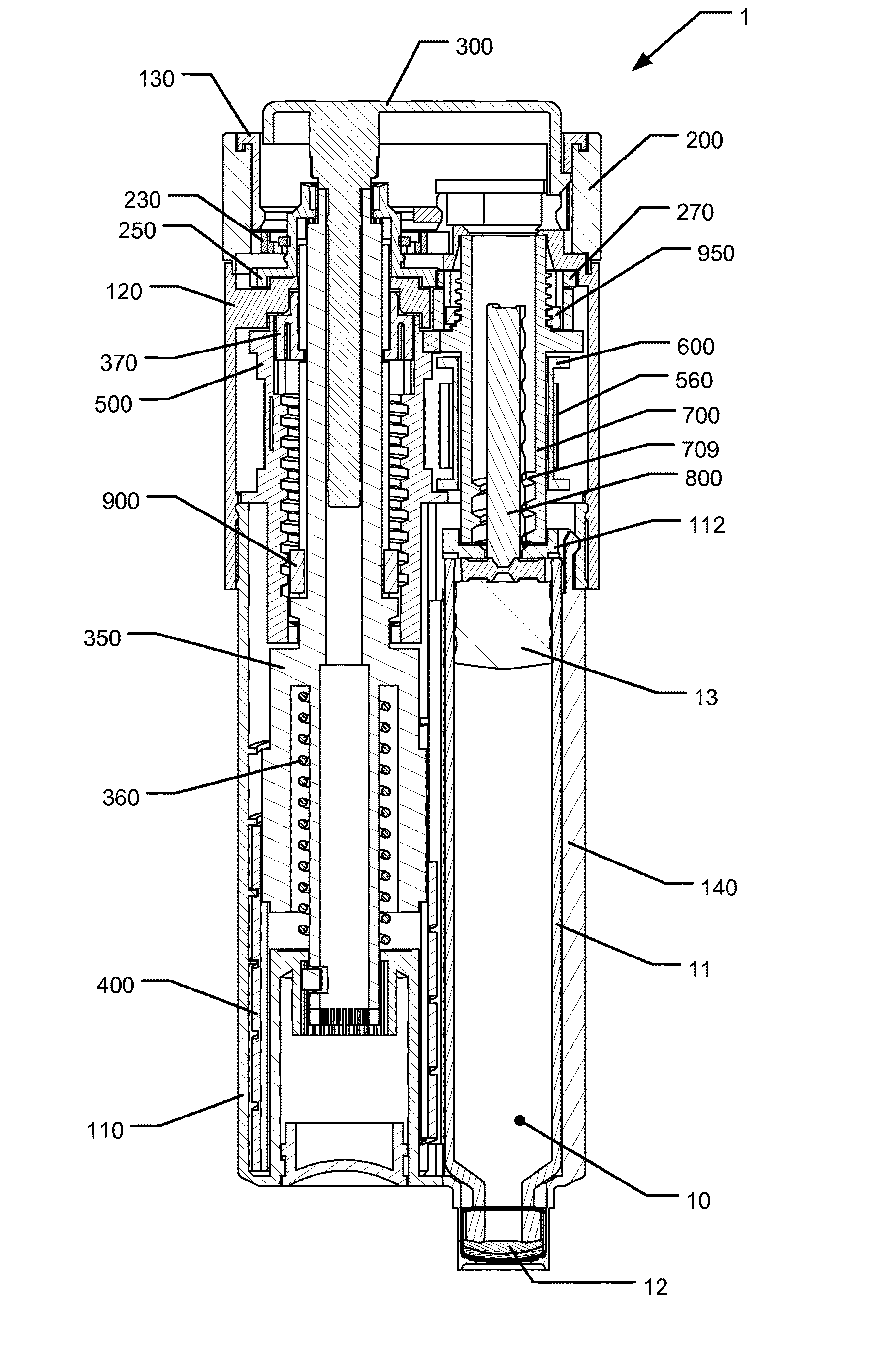

The present invention relates to an injection device (1) for setting and injecting set doses from a held drug cartridge (10). The injection device (1) comprises a housing (110, 120, 130, 140), a piston rod (800), a rotatable driver (500, 700) and a dose control member (350). A stored energy source (560) is configured to drive rotation of the driver (500, 700) to cause the piston rod (800) to expel a set dose. The dose control member (350) rotates during dose setting and during dose expelling. A first clutch (C1) is arranged between the dose control member (350) and the driver (500, 700). A second clutch (C2) is arranged between the driver (500, 700) and the housing (110, 120, 130, 140) to control the expelling movement. During dose setting the first clutch (C1) is disengaged and the second clutch (C2) is engaged. During dose expelling the first clutch (C1) is engaged and the second clutch (C2) is disengaged.
