Reconfigurable delay circuit, delay monitor circuit using said delay circuit, variation compensation circuit, variation measurement method, and variation compensation method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 2018
Issued Date -
N/A
app pub date -
Jul 29, 2014
filing date -
Aug 19, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

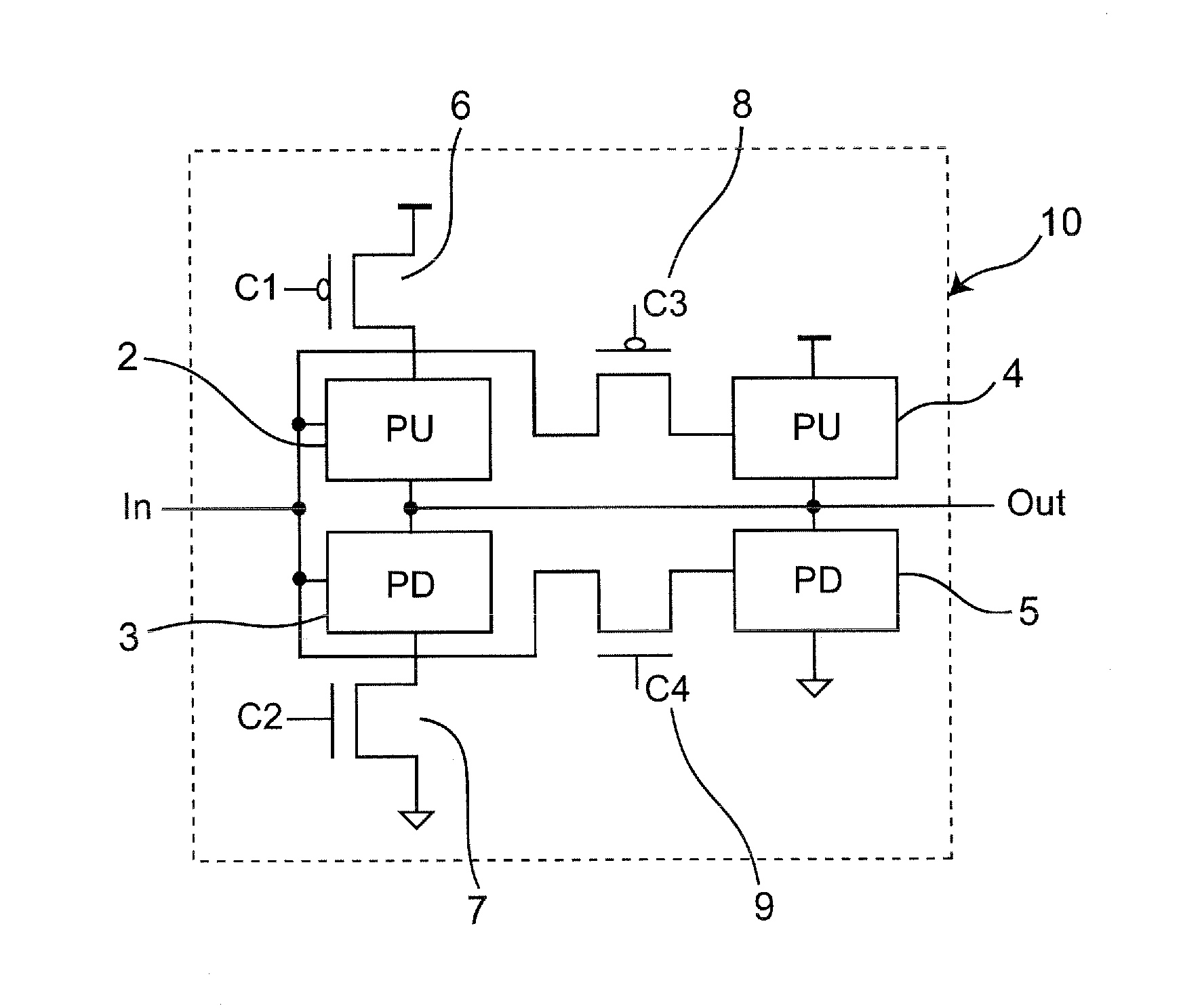

A delay circuit contains a first inversion circuit including a pull-up circuit and a pull-down circuit, and a second inversion circuit including a pull-up circuit and a pull-down circuit. The delay circuit further contains a first pass transistor connected in series to the pull-up circuit in the first inversion circuit between a power supply potential and an output node, a second pass transistor connected in series to the pull-down circuit in the first inversion circuit between a ground potential and the output node, a third pass transistor connected in series between the input node and the pull-up circuit in the second inversion circuit, and a fourth pass transistor connected in series between the input node and the pull-down circuit in the second inversion circuit. A delay characteristic of the delay circuit is changed by a combination of control signals applied to gates of the pass transistors.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| CN | B | CN105493405 | Jul 29, 2014 |
| WO | A1 | WO2015025682 | Jul 29, 2014 |
| EP | B1 | EP3038257 | Jul 29, 2014 |
| SG | A | SG11201601235S | Jul 29, 2014 |
| KR | B1 | KR102166653 | Jul 29, 2014 |
| JP | B2 | JP6297575 | Jul 29, 2014 |
| TW | B | TWI548221 | Aug 05, 2014 |
