Method and system for reconstructing scenes as 3D models from sequences of images using constraint satisfaction
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 2018
Issued Date -
N/A
app pub date -
Feb 3, 2016
filing date -
Feb 3, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

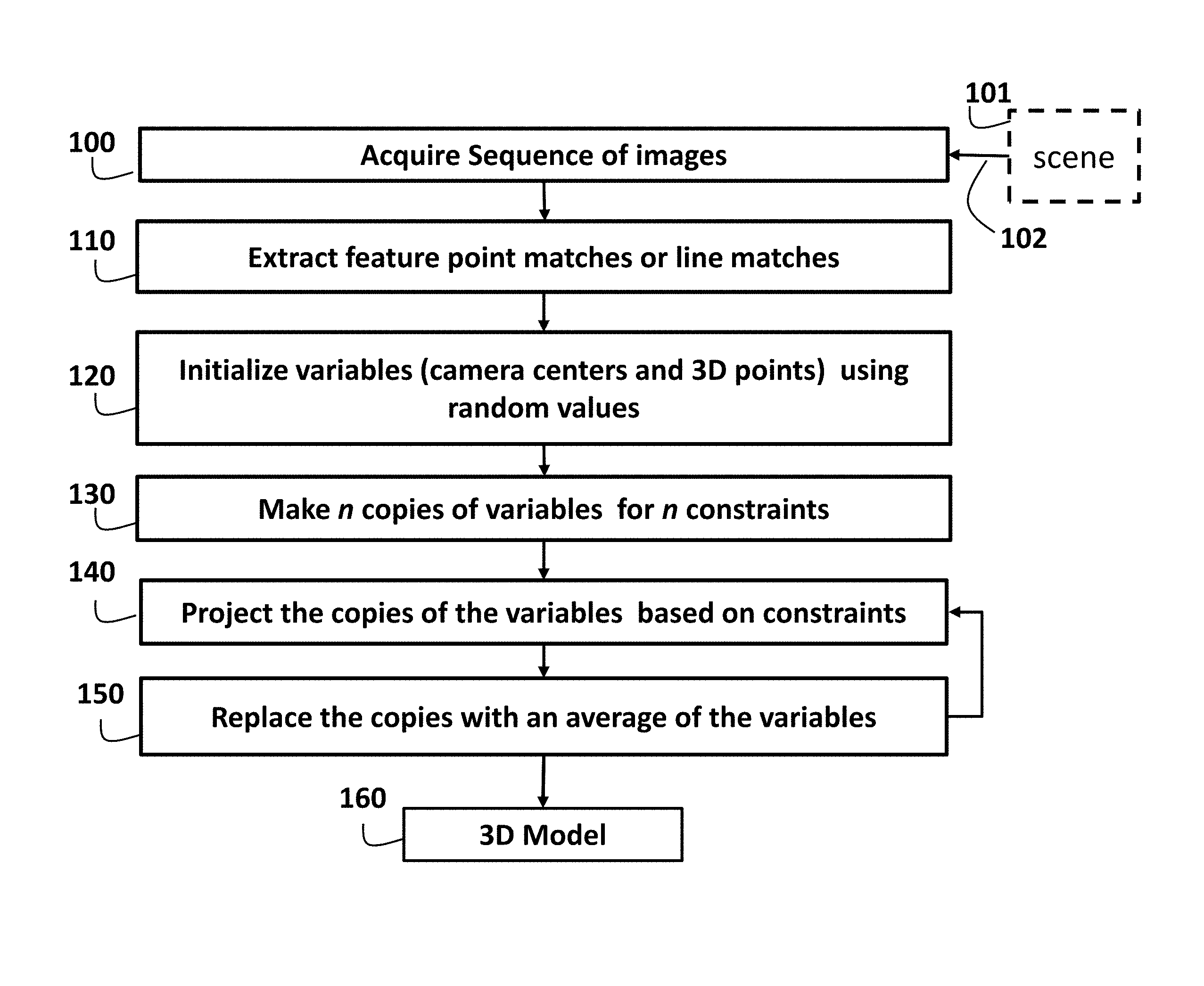

A method reconstructs a scene as a three-dimensional (3D) model by first acquiring a sequence of images of the scene with a camera. Then, feature point matches or line matches are extracted from the sequence of images, variables for camera optical centers and 3D points are initialized using random values, and n copies of the variables are made depending on an availability of n constraints. The n copies are projected to satisfy each of the n constraints. Then, the n copies are replaced with averages of the copies and the projecting and the replacing are repeated until convergence to provide the 3D model.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date | Type | Sub-Type |
|---|
International Classification(s)
- 2016 Application Filing Year
- G06T Class
- 11416 Applications Filed
- 7909 Patents Issued To-Date
- 69.28 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G06T Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 20, 2029 |
