Force-based touch interface with integrated multi-sensory feedback
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 22, 2017
Grant Date -
Apr 9, 2015
app pub date -
Oct 8, 2014
filing date -
Oct 8, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

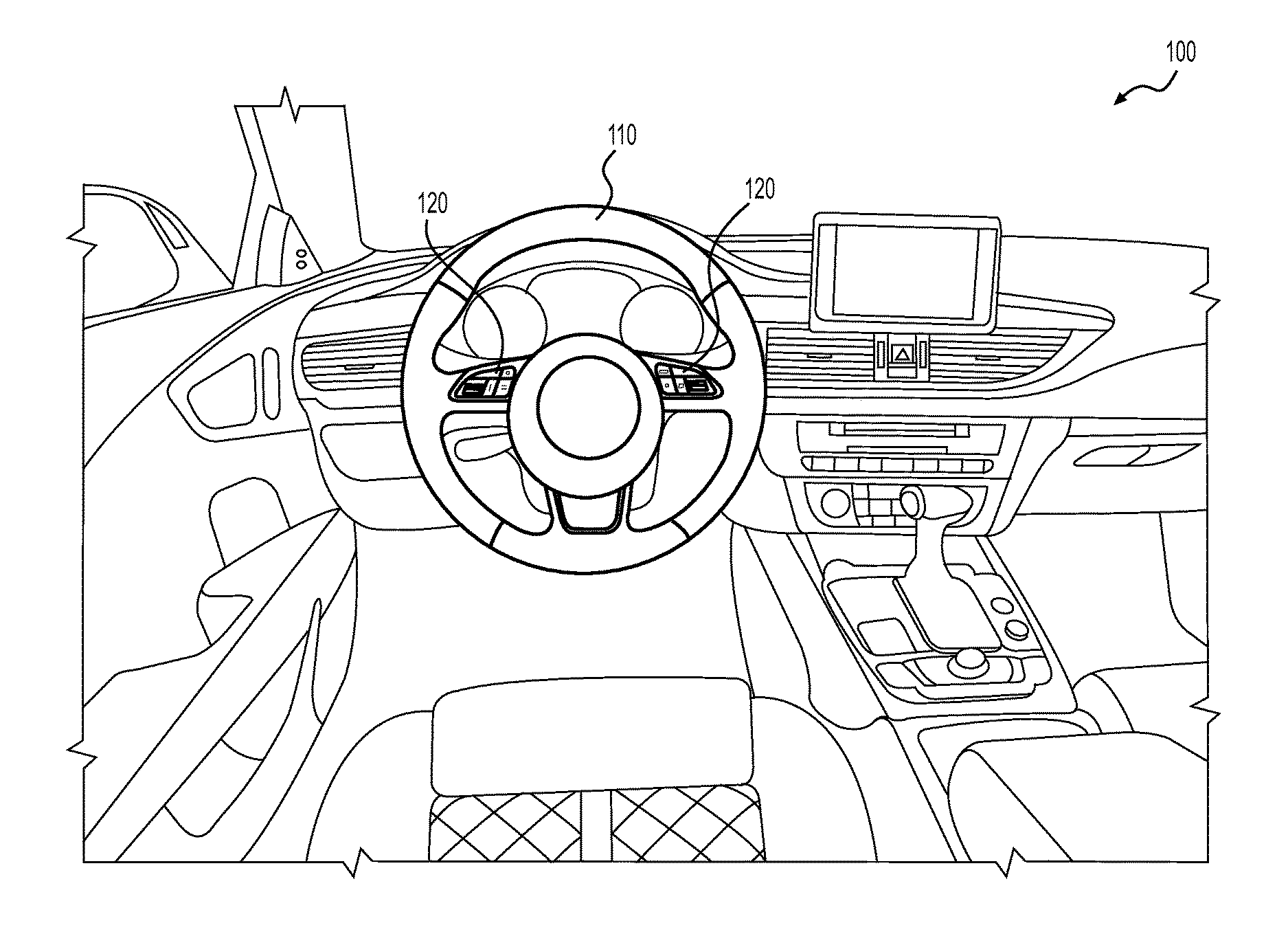

A force-based haptic switch panel, comprising a touch plate having first and second surfaces, the first surface comprising a touch surface and the second surface opposing the first surface. The haptic switch panel may also comprise a circuit board having a plurality of force sensors electrically coupled thereto. The force sensors are disposed between the circuit board and the second surface of the touch plate, wherein each force sensor is configured to measure a respective portion of a force applied to the touch surface of the touch plate. The haptic switch panel may also comprise an acoustic actuator disposed proximate a second surface of the touch plate and configured to generate a haptic output and an audible output responsive to the force applied to the touch surface.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- G06F Class
- 51669 Applications Filed
- 44228 Patents Issued To-Date
- 85.60 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- G06F Class
- 20.77 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 20, 2029 |
