Machine tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 2018
Issued Date -
N/A
app pub date -
Oct 20, 2014
filing date -
Oct 24, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

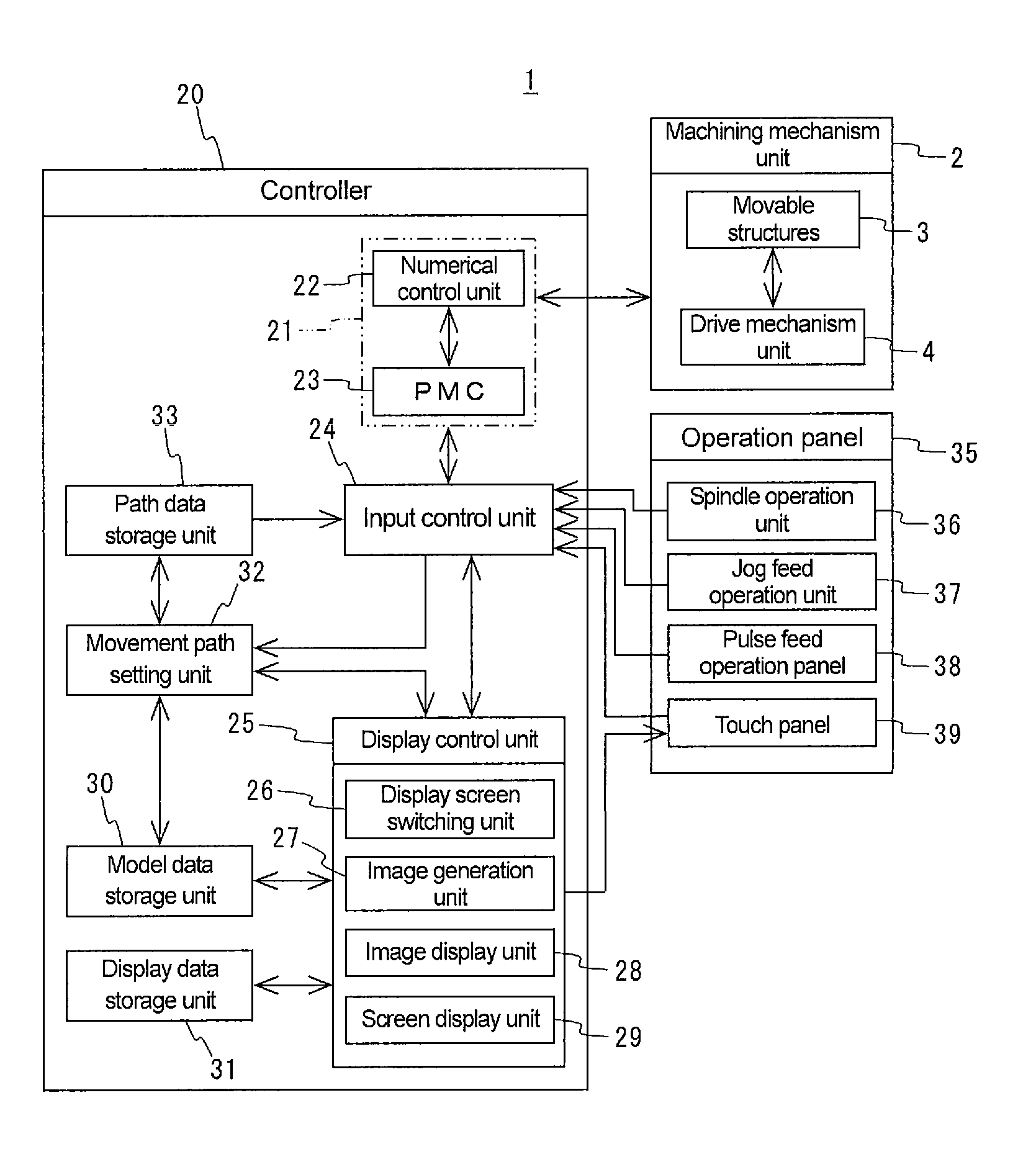

A machine tool includes a movable structure 3, a numerical control unit 22, an external input unit 39 having a dedicated operation key for inputting an operation signal associated with at least a movement end point to which the movable structure 3 is moved, a display unit 39 displaying an image, a display control unit 25 controlling the display on the display unit 39, an input control unit 24 processing a signal input from the external input unit 39, and a movement path setting unit 32 receiving the operation signal input from the external input unit 39 and setting a movement path for moving the movable structure 3 corresponding to the operation signal to the movement end point according to a predetermined setting condition. The display control unit 25 displays an image relating to the movement path set by the movement path setting unit 32 on the display unit 39.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G05B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 20, 2029 |
