Control system for hybrid construction machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 2018
Issued Date -
N/A
app pub date -
Nov 1, 2013
filing date -
Nov 7, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

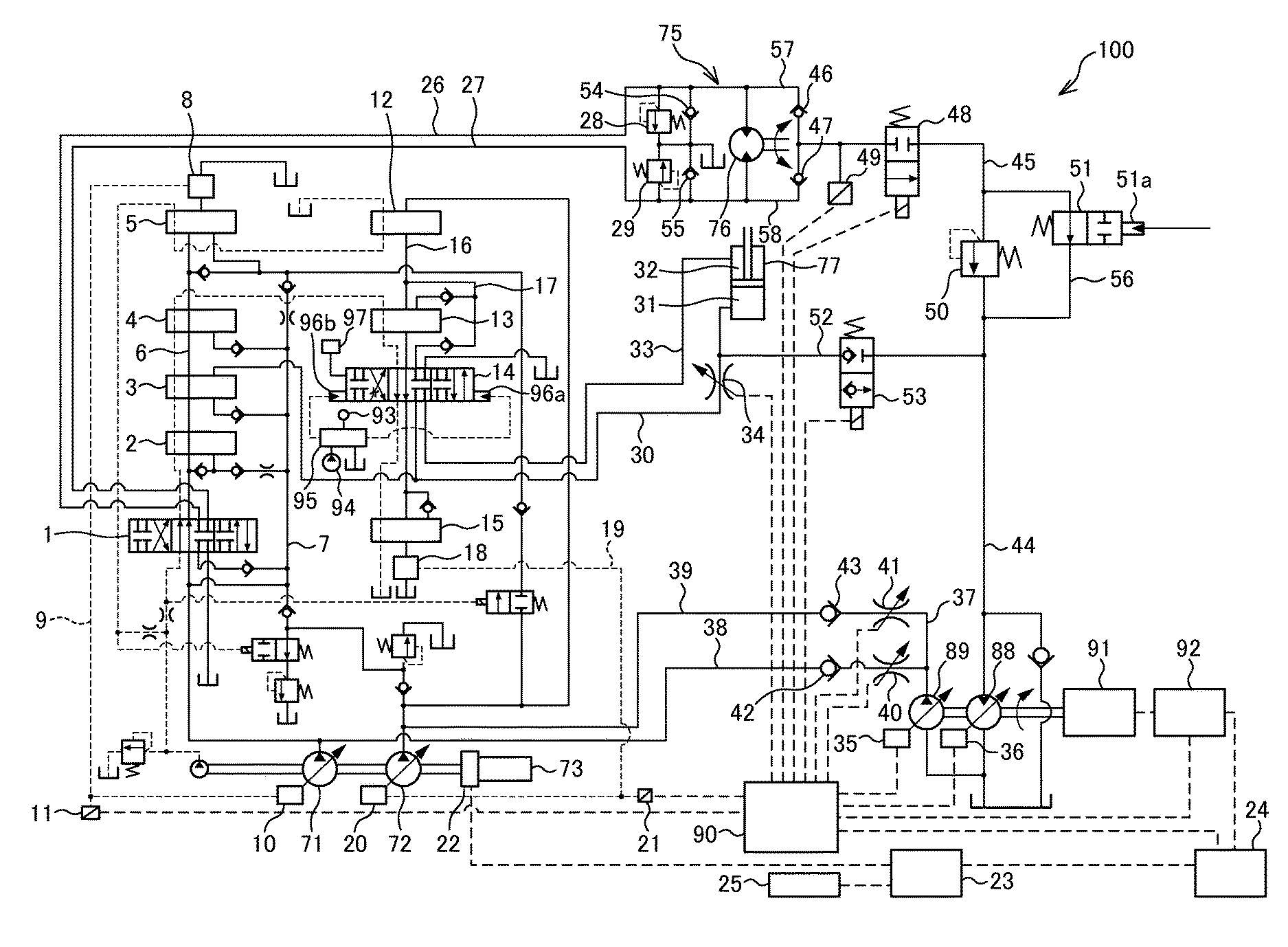

A control system for a hybrid construction machine includes a turning-regeneration-use switching valve that opens when a pressure detected by a pressure detector reaches a turning-regeneration starting pressure, so as to introduce the working fluid from a turning circuit to a regenerative motor, an operating-state detector that detects an operating state of a fluid pressure cylinder; and a cylinder-regeneration-use switching valve that opens based on a detection result of the operating-state detector, so as to introduce the working fluid from the fluid pressure cylinder to the regenerative motor. When the turning regeneration is performed alone, the working fluid from the turning circuit is introduced into the regenerative motor without pressure reduction, When the turning regeneration and the cylinder regeneration are simultaneously performed, the working fluid from the turning circuit is reduced in pressure, joins the working fluid from the fluid pressure cylinder, and is introduced into the regenerative motor.
First Claim
Family
International Classification(s)
- 2013 Application Filing Year
- F15B Class
- 471 Applications Filed
- 405 Patents Issued To-Date
- 85.99 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F15B Class
- 38.83 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 20, 2029 |
