Air intake tract with a hydrocarbon adsorber and related manufacturing methods
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 2018
Grant Date -
Oct 6, 2016
app pub date -
Mar 31, 2016
filing date -
Mar 31, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

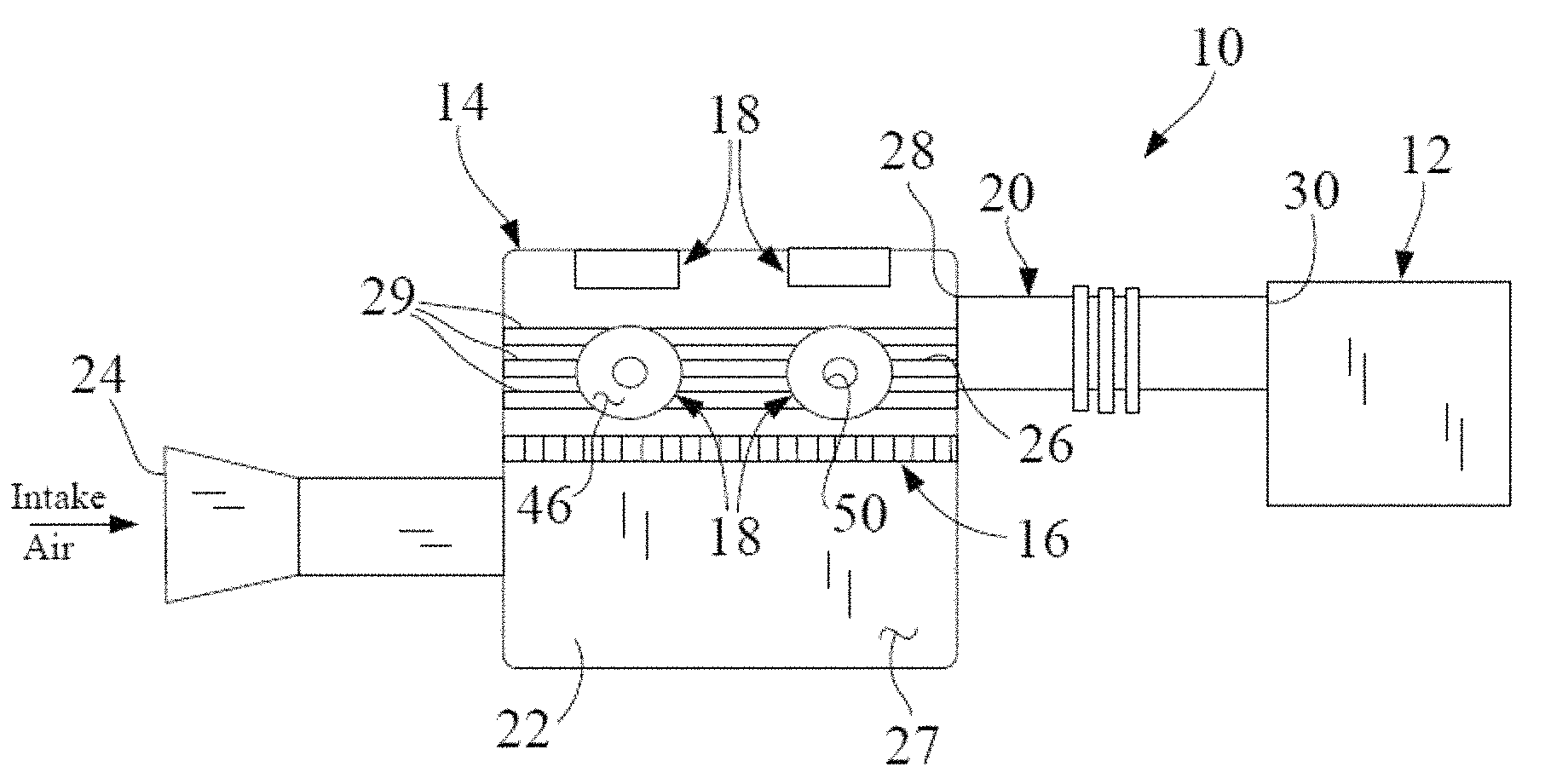

An air intake tract with a hydrocarbon adsorber is provided for adsorbing hydrocarbons of a motor vehicle. The hydrocarbon adsorber includes at least one first layer constructed of a hydrocarbon adsorbing material. Optionally, one or more stacked layers are provided including at least an uppermost layer and at least one intermediate layer. The at least one first layer includes a solid shape within an outer boundary and is adapted for sonic welding onto an interior of the air intake tract. The uppermost layer and any intermediate layers include an opening such that the uppermost layer provides access for a sonic welding tool from an upper side of the subassembly to the at least one first layer through the opening.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- F02M Class
- 1722 Applications Filed
- 1301 Patents Issued To-Date
- 75.56 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F02M Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 20, 2029 |
