Orifice plate flow path stabilizer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 2018
Issued Date -
N/A
app pub date -
Feb 19, 2016
filing date -
Dec 30, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

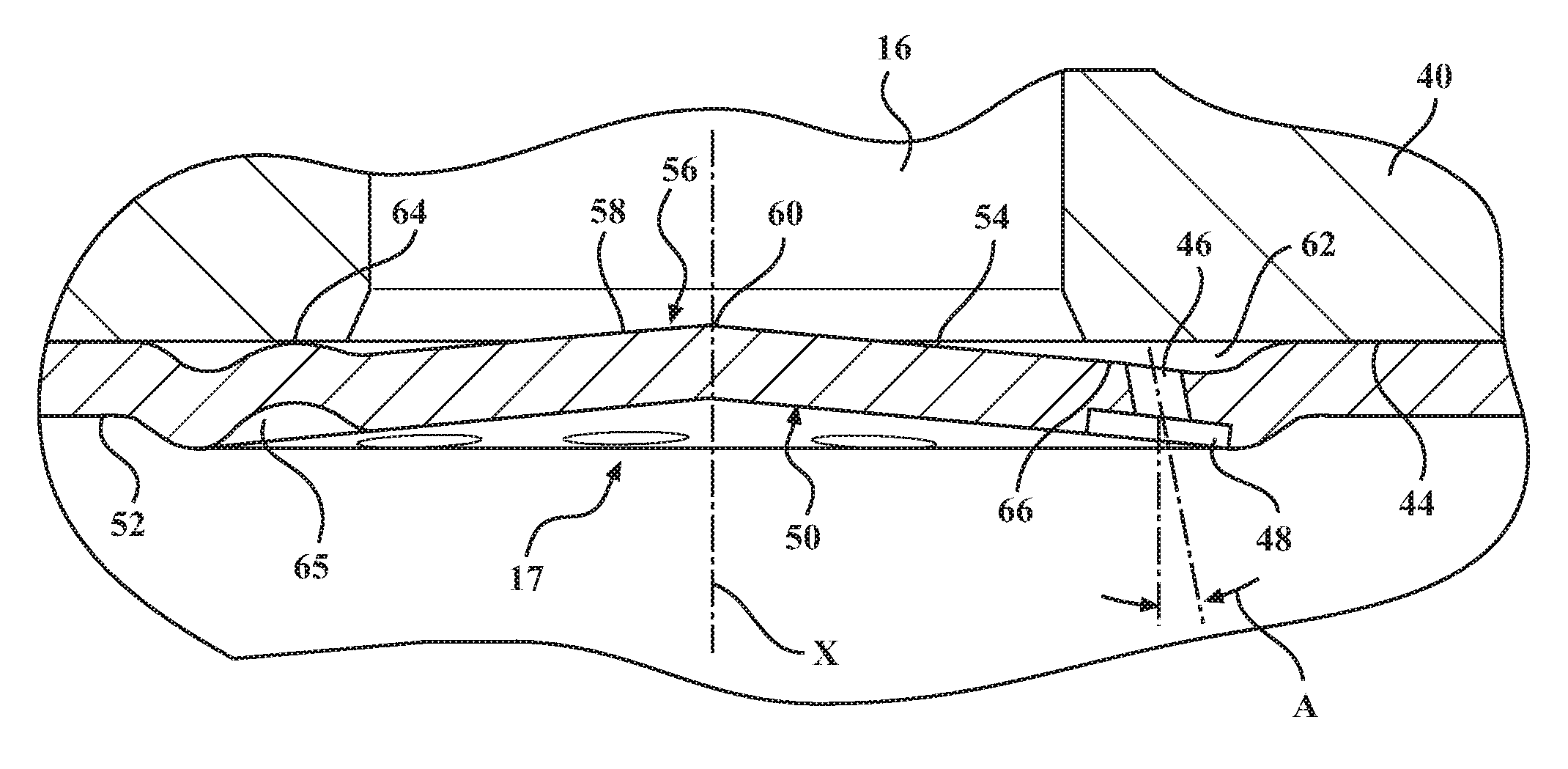

An orifice plate for an injector is provided, which includes a base portion disposed along a base plane. An offset portion is unitarily formed with the base portion. The offset portion is at least partially disposed outside of the base plane. The offset portion defines a flow entry side and a flow exit side, and the offset portion defines a plurality of exit apertures therethrough. A plurality of projections extends from the flow entry side of the offset portion. The plurality of projections is configured to contact an injector surface. An injector and a reductant delivery unit incorporating such an orifice plate are also provided.
