Hybrid electric generation plant fed by sources of a fossil/solar origin
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 2018
Issued Date -
N/A
app pub date -
May 24, 2013
filing date -
May 25, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

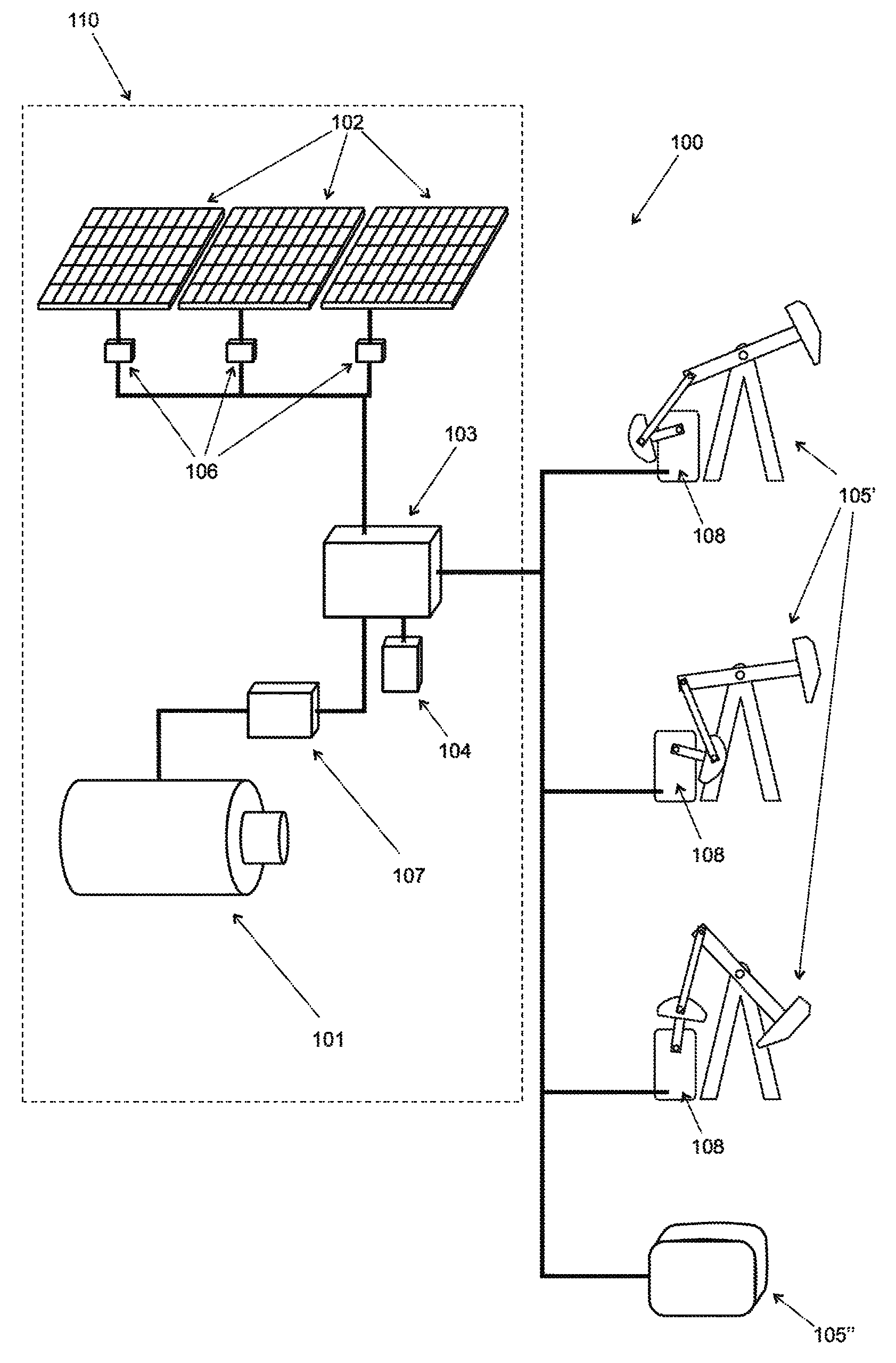

The present invention relates to an electric generation plant (110) of the type without connection to an distributed electric supply network for generating an alternating electric current destined for a plurality of utilities (105) comprising: a first generator (101) fed with fuel of a fossil origin for generating a first alternating electric current in continuous service, i.e. 24 hours a day; a second photovoltaic generator (102) for generating a second direct electric current by conversion of solar radiation comprising a plurality of inverters (106) of the distributed type for inverting and regulating said current; an electric feeding panel (103) of the power motor control center type fed by said first and second current; an energy management system (104) for regulating said first generator (101) in relation to the electric current generated by said second generator (102) and load requirements of possible electric utilities (105); a resistor (107) for preventing the inlet of electric currents in the first generator (101) potentially dangerous for the same. A further object of the present invention relates to an isolated electric system (100) comprising an electric generation plant (110) as described above for feeding a plurality of electric utilities (105).
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H02J Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 20, 2029 |
