Driving apparatus for direct-drive type washing machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 2018
Issued Date -
N/A
app pub date -
Dec 5, 2013
filing date -
Jun 8, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

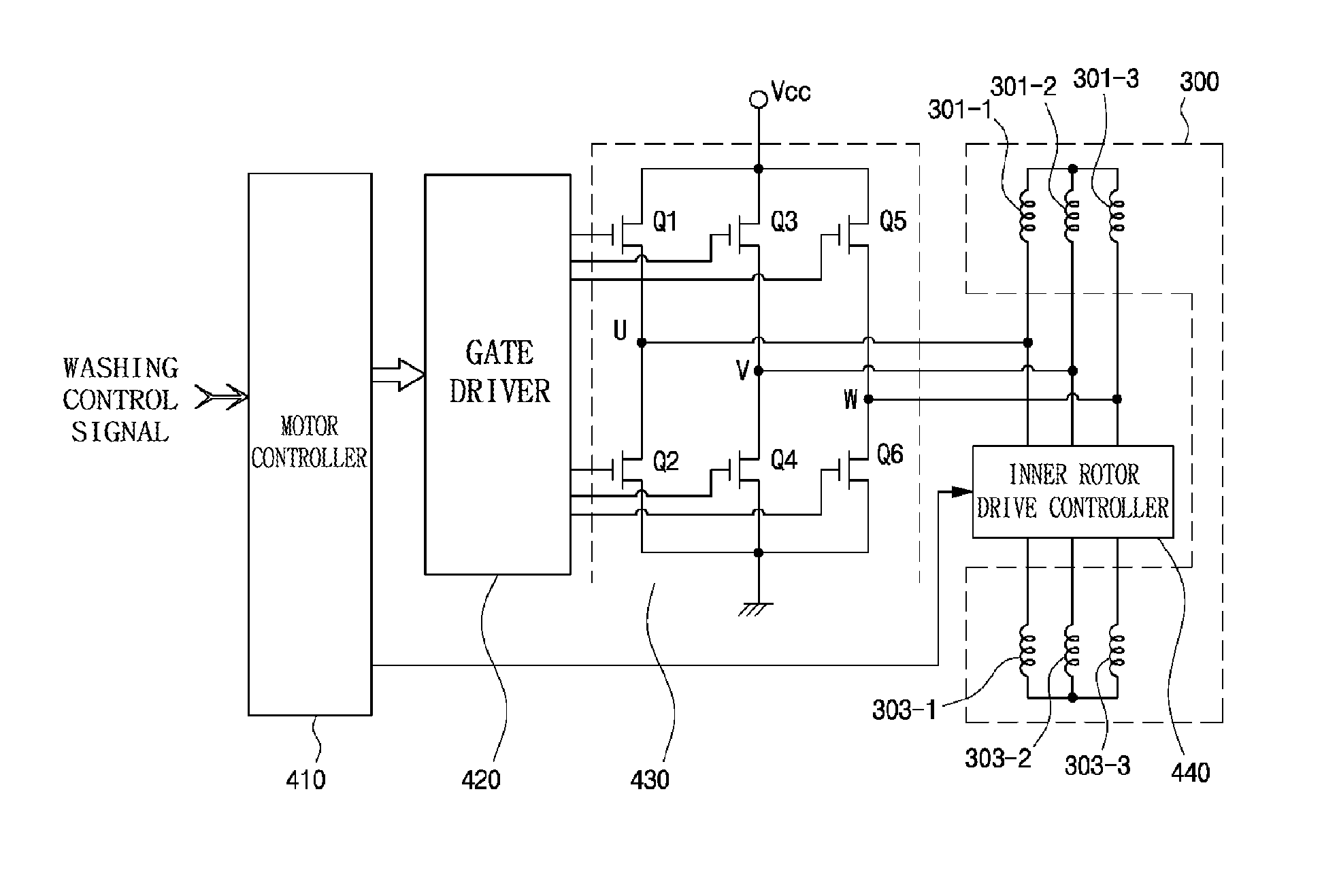

A driving apparatus for a direct-drive type washing machine includes a support member that is fixed to the lower side of a washing tub; a dehydrating tub rotating shaft that is rotatably supported on the support member and that is connected to a dehydrating tub to rotate the dehydrating tub; a pulsator rotating shaft that is rotatably arranged in the inside of the dehydrating tub rotating shaft and that is connected to a pulsator to rotate the pulsator; a drive motor comprising a double rotor including an outer rotor that is connected to the pulsator rotating shaft and an inner rotor that is connected to the dehydrating tub rotating shaft, and a double stator including a first stator coil for rotating the outer rotor and a second stator coil for rotating the inner rotor; and a motor drive unit that generates alternating-current (AC) power according to a washing control signal.
