Electric hydraulic catalyst loading and unloading device and methods therefor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 2018
Issued Date -
N/A
app pub date -
Oct 6, 2014
filing date -
Oct 7, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

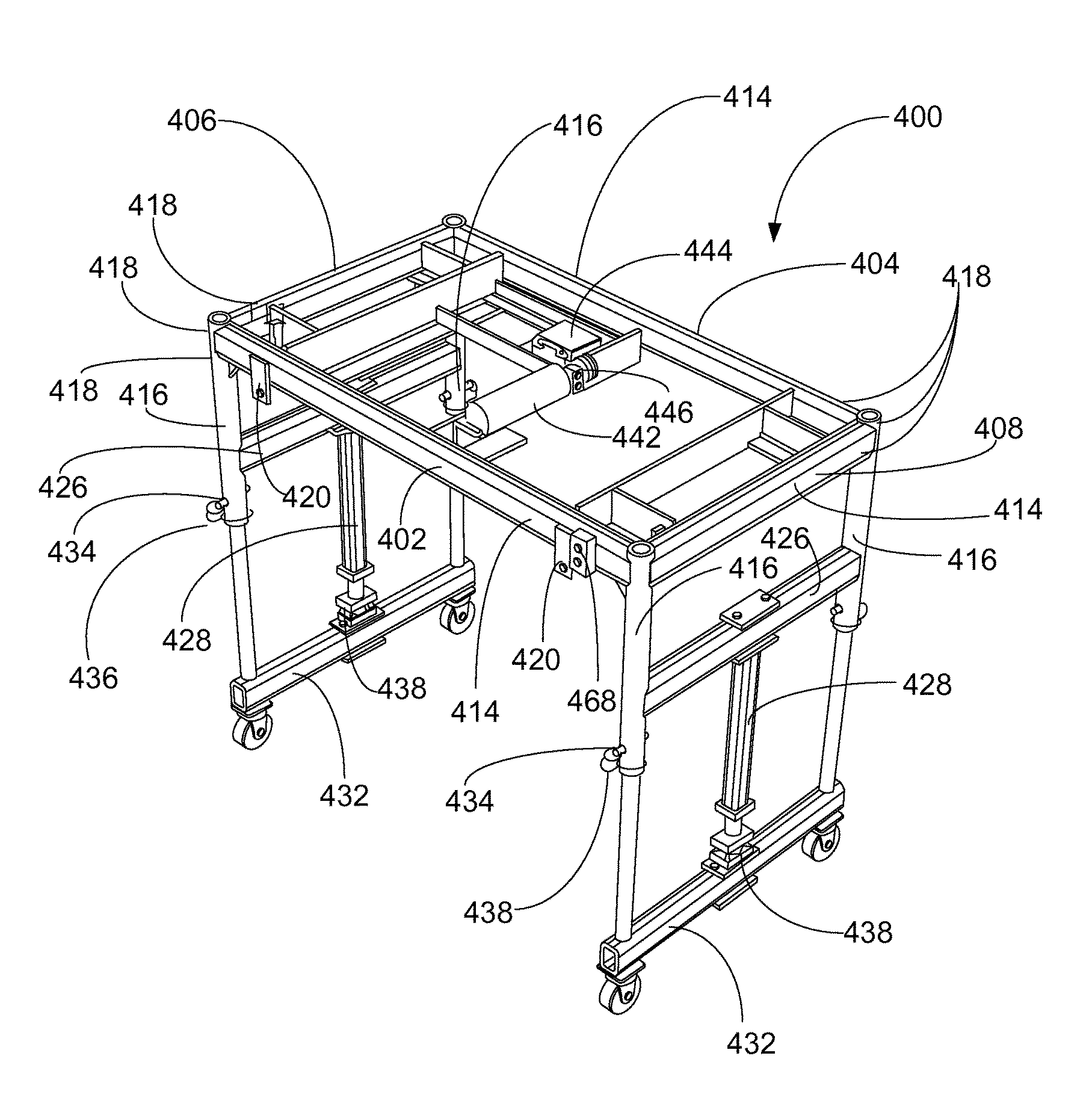

An overhead catalyst loading device eliminates the need for lower flanges of the overhead catalyst structural support frame or dedicated overhead trolley beams to prevent ash build up collecting on a selective catalytic reactor (SCR) reactor box and provides an advantageous electric hydraulic lifting mechanism suitable for integration into a SCR device. The overall width of the SCR device is reduced since the structural support frame in the SCR device fits in the gaps between catalyst blocks. The overhead electric hydraulic catalyst loading device also minimizes the chance of injury during catalyst block installation by using an electric hydraulic actuated lifting mechanism consisting of spacers and structural telescopic members which may comprise holes and pins for height adjustment to allow for loading and unloading catalyst blocks into and out of a SCR device. Methods of lifting and loading and unloading a catalyst block are also presented therein.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B23P Class
- 1101 Applications Filed
- 767 Patents Issued To-Date
- 69.67 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B23P Class
- 41.48 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 20, 2029 |
