Sheet conveying system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 2018
Issued Date -
N/A
app pub date -
May 10, 2017
filing date -
Nov 17, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

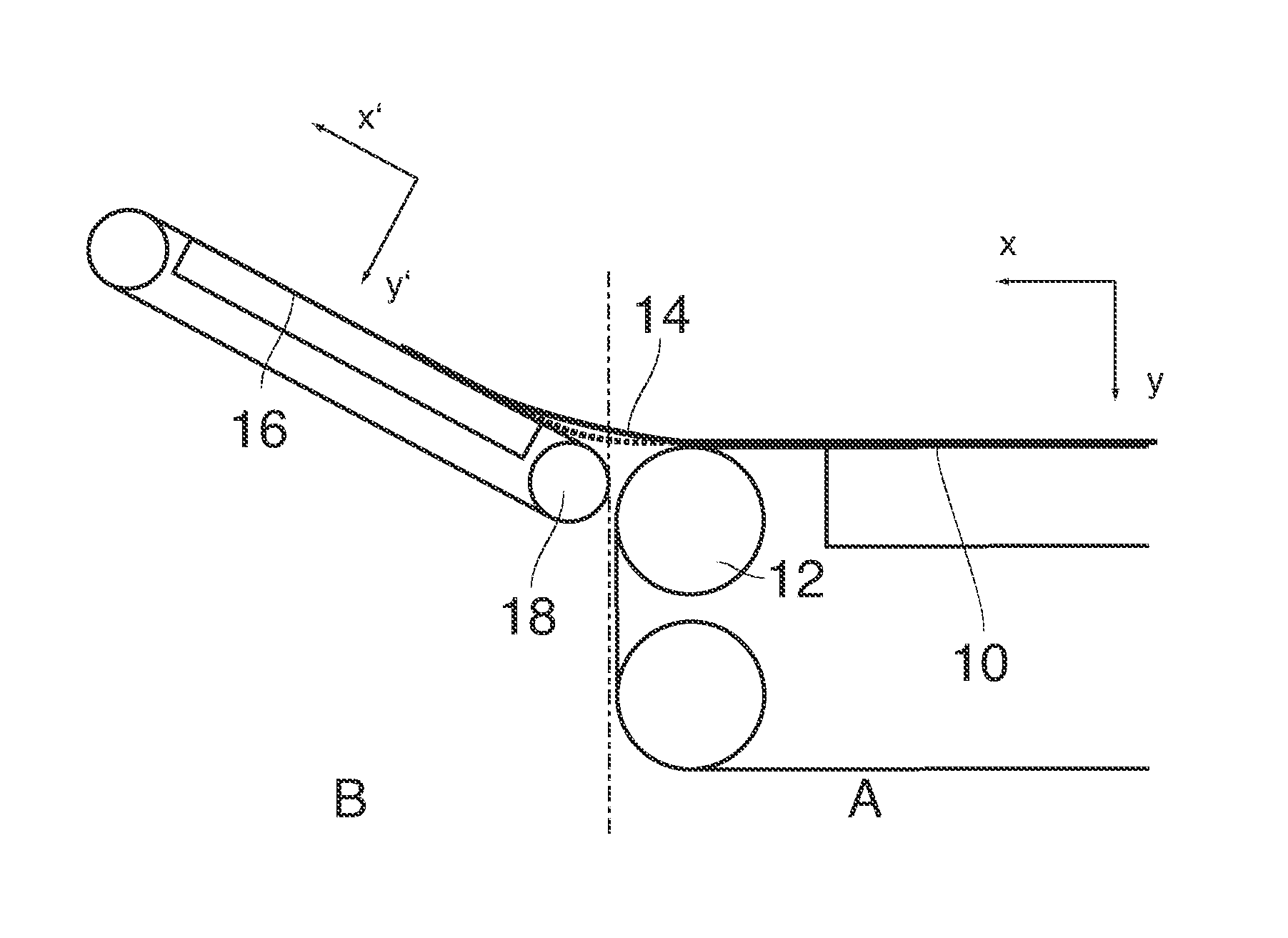

A sheet conveying system includes an upstream conveyor section having an endless first conveyor belt movable in a first conveying direction x and extending in a first lateral direction z, the first conveying direction x and the first lateral direction z defining a first conveying plane xz; and a downstream conveyor section having an endless second conveyor belt that adjoins the first conveyor belt and is movable in a second conveying direction x′ and extends in a second lateral direction z′, the second conveying direction x′ and the second lateral direction z′ defining a second conveying plane x′z′. The conveyor sections are adapted to hold the sheets slip-free on the first and second conveyor belts. The second conveyor belt has a shear compliance in the second conveying plane x′z′ that is larger than the shear compliance of the first conveyor belt in the first conveying plane xz.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| EP | B1 | EP3221245 | Nov 06, 2015 |
| WO | A1 | WO2016078940 | Nov 06, 2015 |
International Classification(s)
- 2017 Application Filing Year
- B65H Class
- 1541 Applications Filed
- 1205 Patents Issued To-Date
- 78.20 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B65H Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 20, 2029 |
