Fixing structure for inflator and airbag
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 2018
Grant Date -
Jul 28, 2016
app pub date -
Oct 1, 2014
filing date -
Oct 22, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

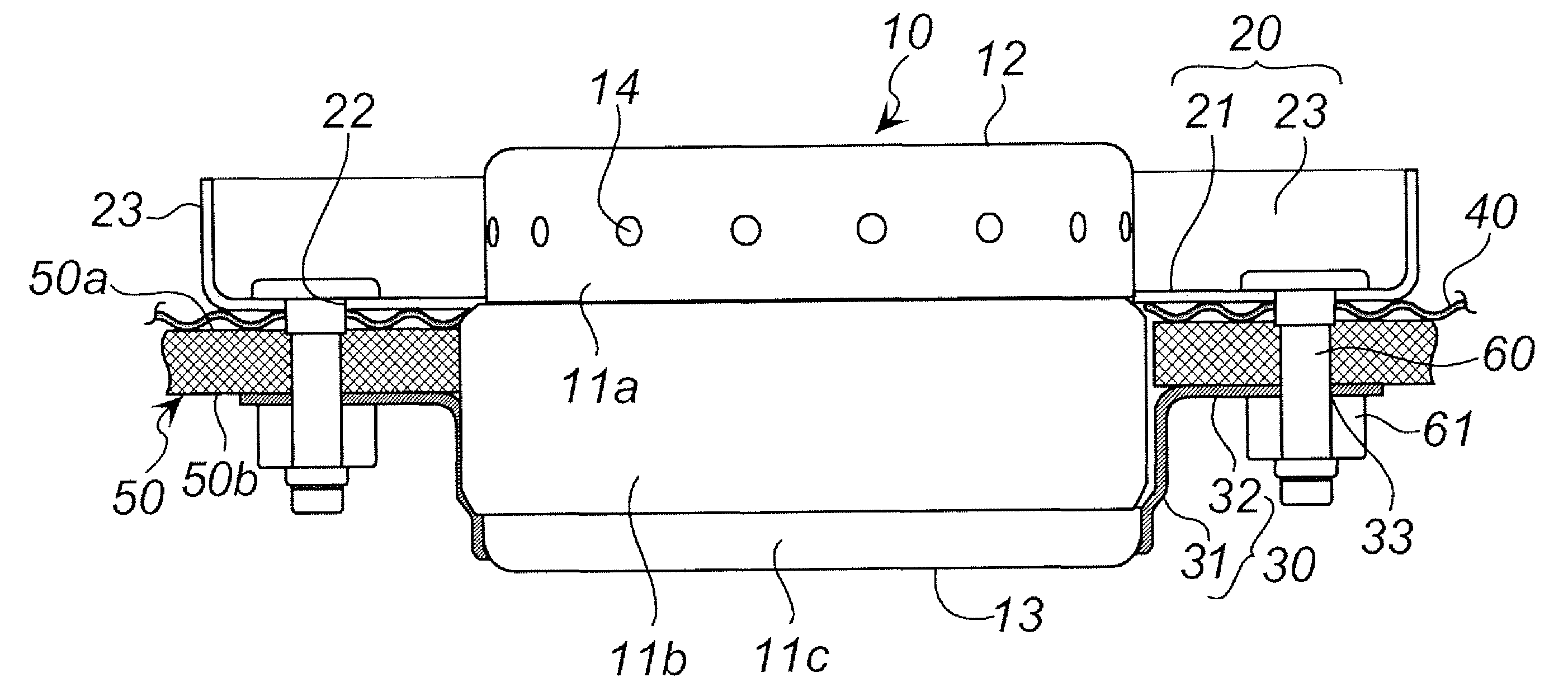

An inflator and airbag are fixed by a fixing member including a lower fixing member that supports and fixes the inflator from a lower surface side of a plate portion. The lower fixing member has a tubular wall portion and a flange portion formed at an opening at one end. The tubular wall portion has an inner surface in a shape that is fitted to a circumferential wall surface, including a lower annular step surface, of the inflator housing. The flange portion has a plurality of bolt holes and abuts against a lower surface of the plate portion. The airbag and the lower fixing member are fixed with a bolt and a nut mounted through the airbag, the plate portion, and the flange portion of the lower fixing member.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2014 Application Filing Year
- B60R Class
- 2971 Applications Filed
- 2488 Patents Issued To-Date
- 83.75 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60R Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 20, 2029 |
