Ski carrier clamp
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 2018
Grant Date -
Jul 20, 2017
app pub date -
Mar 31, 2017
filing date -
Dec 30, 2014
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

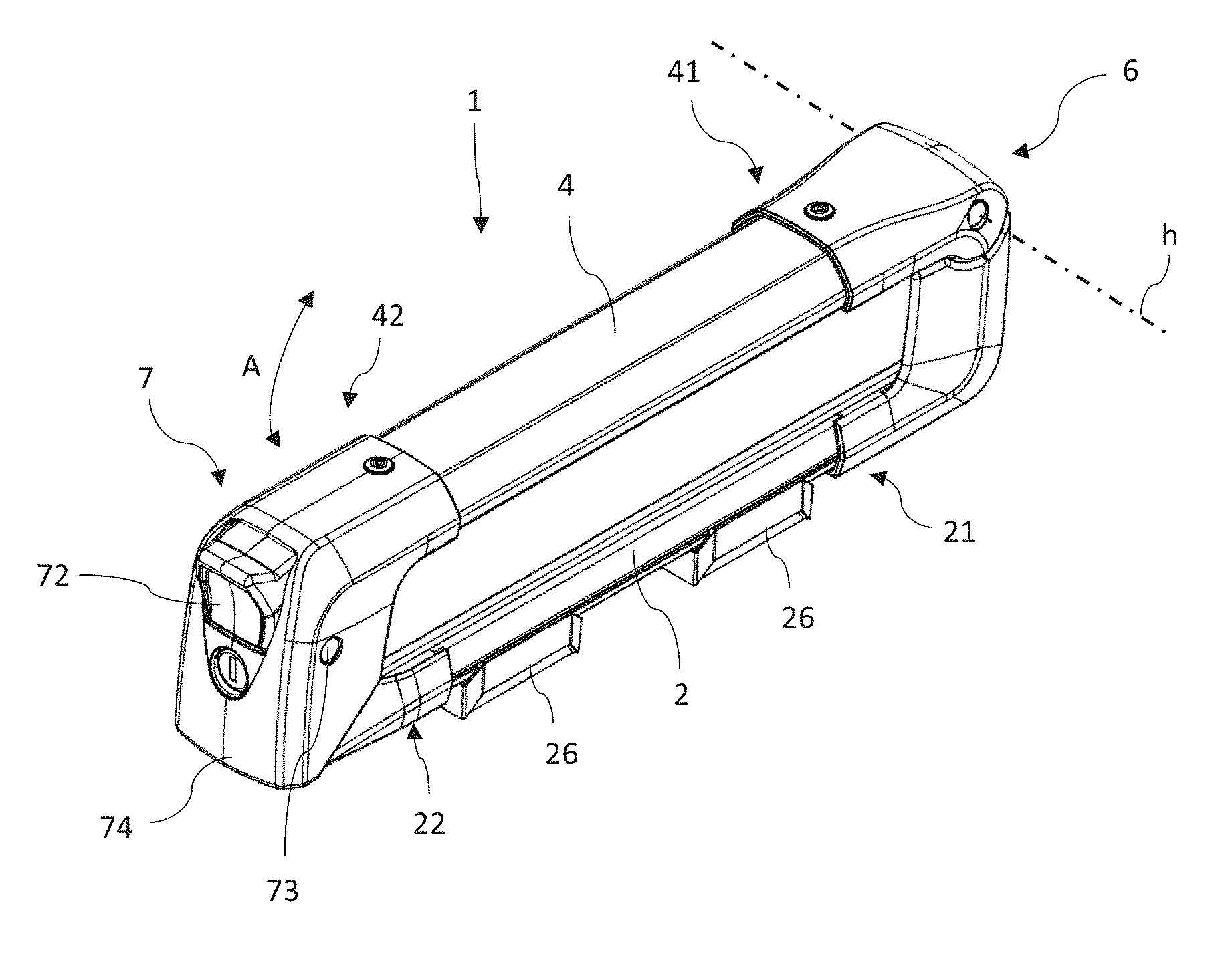

A ski carrier clamp mountable on a cross bar of a vehicle roof carrier includes an elongate base part having a first end portion and a second end portion, an elongate top part having a first end portion and a second end portion, and a hinge mechanism having a guiding portion coupled to the elongate base part and a guided element slidably disposed in the guiding portion. The hinge mechanism couples the first end portion of the elongate base part to the first end portion of the elongate top part. The first end portion of the elongate base part and the first end portion of the elongate top part are configured to move with respect to each other.
First Claim
all claims..Other Claims data not available
Family

- 15 United States
- 10 France
- 8 Japan
- 7 China
- 5 Korea
- 2 Other
Patent Owner(s)
Patent Owner | Address | |
---|---|---|
THULE SWEDEN AB | WHAT TOP HILLER OF SWEDEN HILLERSTORP VASTRA GOTALAND |
International Classification(s)

- 2017 Application Filing Year
- B60R Class
- 5134 Applications Filed
- 3775 Patents Issued To-Date
- 73.53 % Issued To-Date
Inventor(s)
Inventor Name | Address | # of filed Patents | Total Citations |
---|---|---|---|
Adler, Jan | Skillingaryd, SE | 38 | 384 |
# of filed Patents : 38 Total Citations : 384 | |||
Magnusson, Karl-Johan | Hillerstorp, SE | 4 | 18 |
# of filed Patents : 4 Total Citations : 18 | |||
Nilvius, Anders | Värnamo, SE | 19 | 59 |
# of filed Patents : 19 Total Citations : 59 |
Cited Art Landscape
- No Cited Art to Display

Patent Citation Ranking
- 0 Citation Count
- B60R Class
- 0 % this patent is cited more than
- 7 Age
Forward Cite Landscape
- No Forward Cites to Display

Maintenance Fees
Fee | Large entity fee | small entity fee | micro entity fee | due date |
---|---|---|---|---|
7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 20, 2025 |
11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 20, 2029 |
Fee | Large entity fee | small entity fee | micro entity fee |
---|---|---|---|
Surcharge - 7.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge - 11.5 year - Late payment within 6 months | $160.00 | $80.00 | $40.00 |
Surcharge after expiration - Late payment is unavoidable | $700.00 | $350.00 | $175.00 |
Surcharge after expiration - Late payment is unintentional | $1,640.00 | $820.00 | $410.00 |
Full Text

Legal Events
Date | Code | Event | Description |
---|---|---|---|
Sep 04, 2017 | LAPS | LAPSE FOR FAILURE TO PAY MAINTENANCE FEES | free format text: PATENT EXPIRED FOR FAILURE TO PAY MAINTENANCE FEES (ORIGINAL EVENT CODE: EXP.) |
Sep 04, 2017 | STCH | INFORMATION ON STATUS: PATENT DISCONTINUATION | free format text: PATENT EXPIRED DUE TO NONPAYMENT OF MAINTENANCE FEES UNDER 37 CFR 1.362 |
Aug 09, 2017 | FP | LAPSED DUE TO FAILURE TO PAY MAINTENANCE FEE | Effective Date: Aug 09, 2017 |
Mar 17, 2017 | REMI | MAINTENANCE FEE REMINDER MAILED | |
Feb 04, 2013 | FPAY | FEE PAYMENT | year of fee payment: 8 |
Jan 29, 2009 | FPAY | FEE PAYMENT | year of fee payment: 4 |
Aug 09, 2005 | I | Issuance | |
Dec 02, 2004 | P | Published | |
Feb 26, 2004 | AS | ASSIGNMENT | free format text: CORRECTIVE ASSIGNMENT TO CORRECT THE ASSIGNEE PREVIOUSLY RECORDED ON REEL 015636 FRAME 0388;ASSIGNORS:TOMPKIN, WAYNE ROBERT;SCHILLING, ANDREAS;STAUB, RENE;AND OTHERS;REEL/FRAME:017137/0167 Owner name: OVD KINEGRAM AG, SWITZERLAND Effective Date: Feb 26, 2004 |
Feb 26, 2004 | AS | ASSIGNMENT | free format text: ASSIGNMENT OF ASSIGNORS INTEREST;ASSIGNORS:TOMPKIN, WAYNE ROBERT;SCHILLING, ANDREAS;STRAUB, RENE;AND OTHERS;REEL/FRAME:015636/0388 Owner name: OVD KINEGRAM AG, SWITZERLAND Effective Date: Feb 26, 2004 |
Sep 06, 2002 | F | Filing | |
Sep 21, 2001 | PD | Priority Date |
