Multi-mode drive system for transaxle applications
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 2018
Issued Date -
N/A
app pub date -
Mar 30, 2015
filing date -
Jul 23, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

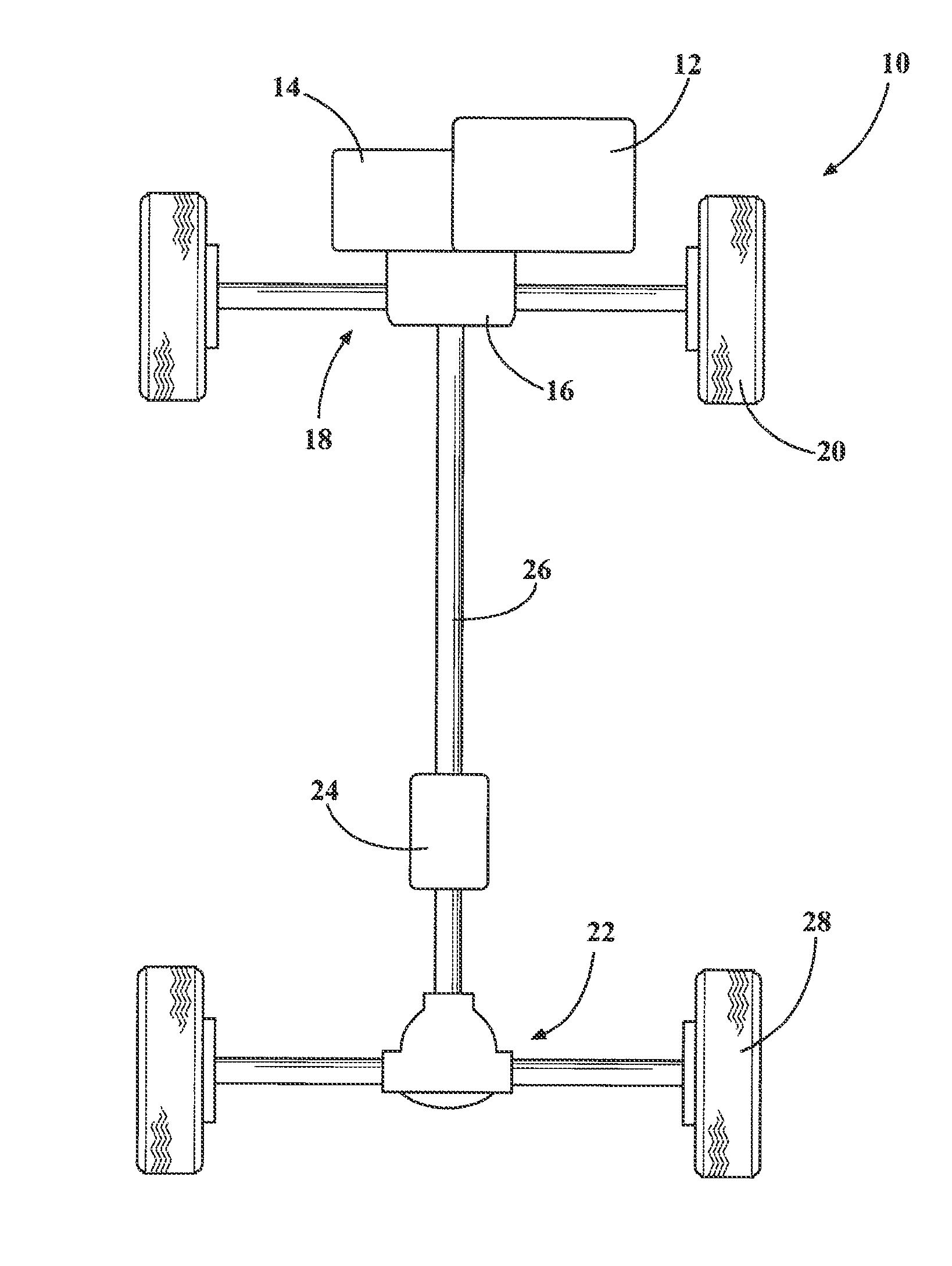

A vehicle drive system capable of selectively providing all-wheel drive and single-driven-axle modes includes a front drive unit having a planetary gearset with a grounded ring gear and a sun gear driven by the transaxle's drive spool via an input shaft, and a differential selectively coupled by a dog clutch to one of the sun gear or the planetary carrier, or neither of them, to thereby selectively provide both an available low range and a front axle disconnect. The front drive unit further defines a power take-off unit with a clutch selectively coupling the input shaft to a propshaft. The rear drive unit includes a planetary gearset with a grounded ring gear, a sun gear driven by the propshaft, and a differential selectively coupled by a dog clutch to one of the sun gear or the planetary carrier, or neither of them, to thereby likewise selectively provide both an available low range and a rear axle disconnect.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B60K Class
- 2427 Applications Filed
- 1969 Patents Issued To-Date
- 81.13 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B60K Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 20, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 20, 2029 |
