Two-color molding method and two-color molded article
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 2018
Issued Date -
N/A
app pub date -
Apr 16, 2015
filing date -
Apr 23, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

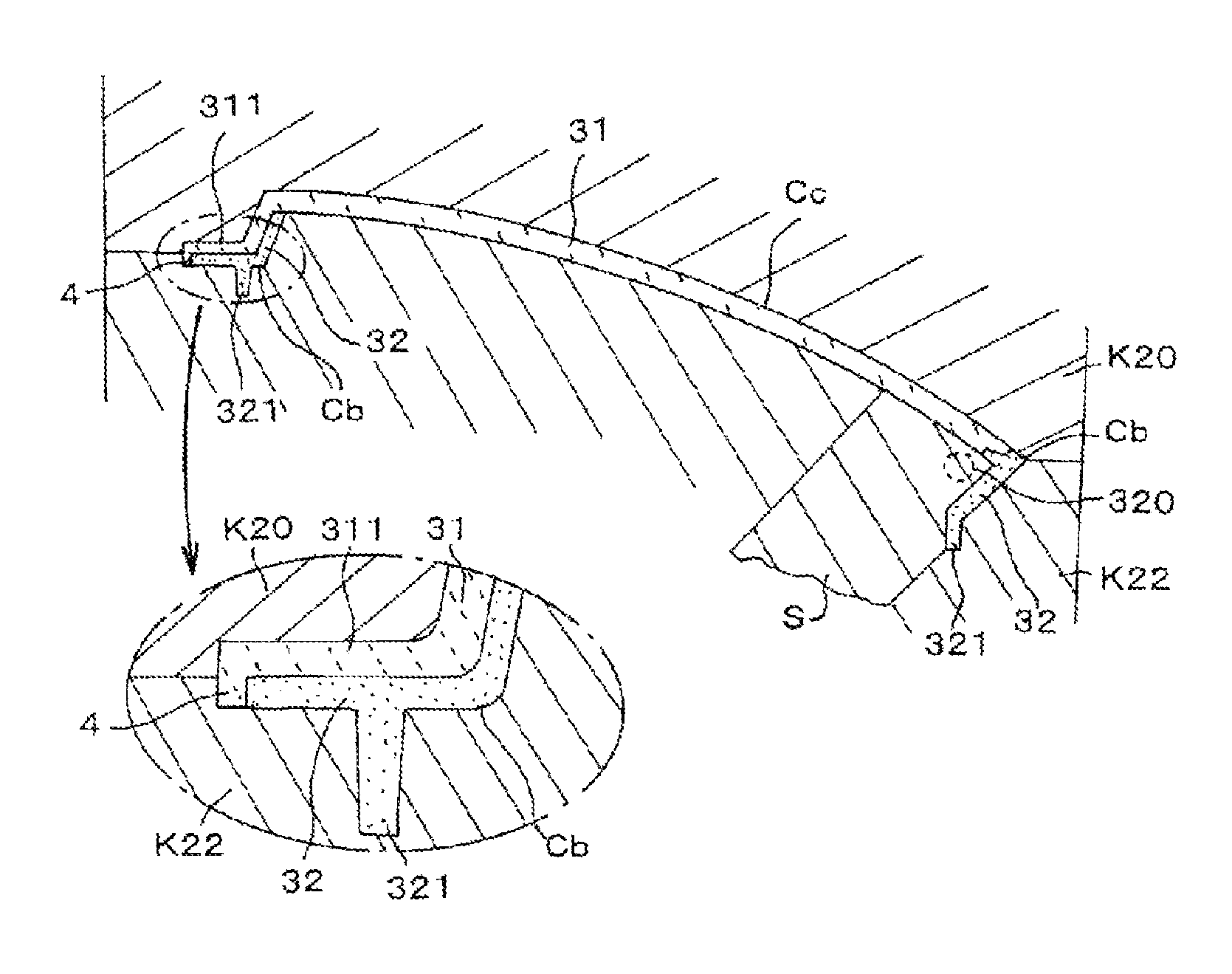

Provided are a two-color molding method, and a two-color molded article capable of suppressing deterioration of the appearance quality which is caused by resin shrinkage or resin deformation in the two-color molding. The two-color molding method includes: molding a first resin portion by a common die and a primary die; and molding a second resin portion integrally with the first resin portion by the common die and a secondary die. An abutting portion is molded on an edge of the first resin portion to protrude toward the secondary die when the first resin portion is molded, and a distal end surface of the abutting portion is maintained to be abutted on a cavity surface or a parting surface of the secondary die when the second resin portion is molded. The deformation of the abutting portion or the first resin portion is suppressed to suitably mold the second resin portion.
