Drawer pull-out guide
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 20, 2018
Issued Date -
N/A
app pub date -
Jul 12, 2016
filing date -
Jan 23, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

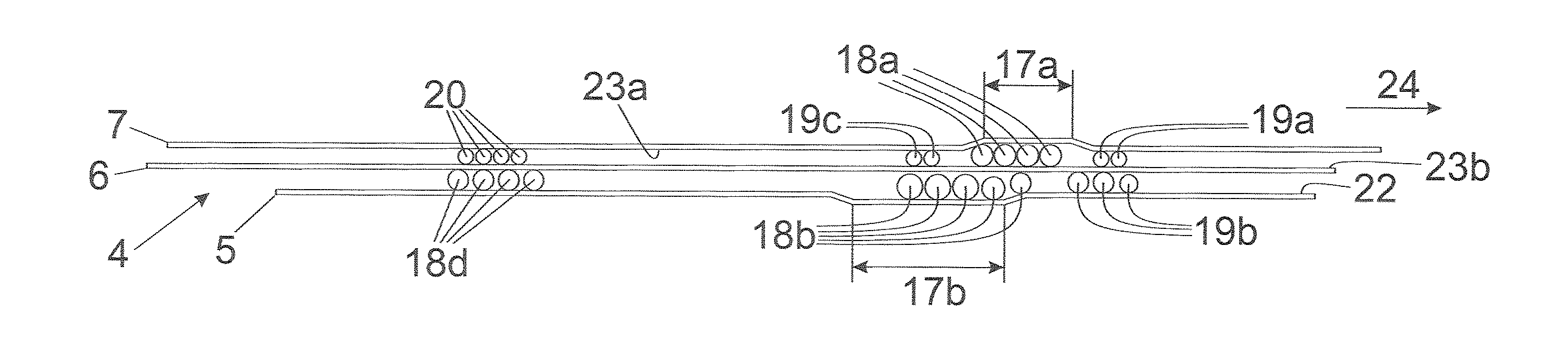

A drawer pull-out guide includes a carcass rail to be fixed to a furniture carcass, an extension rail displaceable relative to the carcass rail between a closed position and an open position, and a rolling body and a supporting body movable along a running limb of the carcass rail and a running surface of the extension rail upon a movement of the extension rail. A clearance is formed on the running limb of the carcass rail and/or on the running surface of the extension rail. The rolling body is accommodated within the clearance in the closed position of the extension rail and is thereby relieved from the load of the extension rail so that, in the closed position of the extension rail, the load of the extension rail is carried by the supporting body. Furthermore, rolling body and the supporting body are arranged in a common running carriage.
