Equalizer adjustment method, adaptive equalizer and memory storage device

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9893912
SERIAL NO

15493139

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

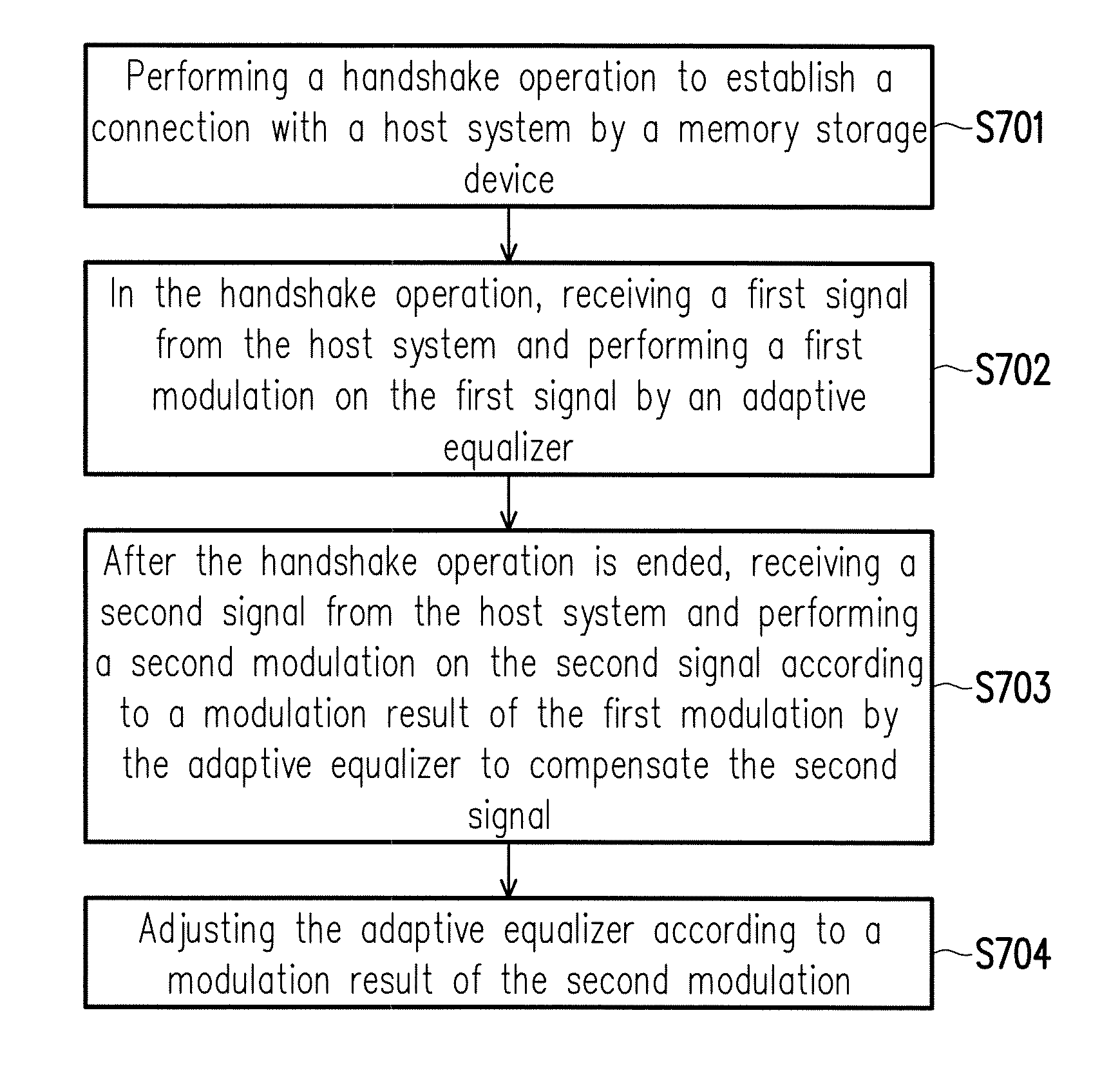

An exemplary embodiment provides an equalizer adjustment method. The method includes: performing a handshake operation to establish a connection with a host system by a memory storage device; in the handshake operation, receiving a first signal from the host system and performing a first modulation on the first signal by the adaptive equalizer; after the handshake operation is ended, receiving a second signal from the host system and performing a second modulation on the second signal according to a modulation result of the first modulation by the adaptive equalizer to compensate the second signal; and adjusting the adaptive equalizer according to a modulation result of the second modulation.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
PHISON ELECTRONICS CORPMIAOLI

International Classification(s)

loading....
  • 2017 Application Filing Year
  • H04L Class
  • 36365 Applications Filed
  • 27259 Patents Issued To-Date
  • 74.96 % Issued To-Date
Click to zoom InYear of Issuance% of Matters IssuedCumulative IssuancesYearly Issuances2017201820192020202120222023202420250255075100

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Chen, Chih-Ming Hsinchu County, KR 467 5678
Chen, Wei-Yung Hsinchu County, TW 26 133
Lin, Chao-Hsin Hsinchu County, TW 29 165
Wei, Wei-Ting Yilan County, TW 7 11

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 3 Citation Count
  • H04L Class
  • 17.38 % this patent is cited more than
  • 7 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges1588587498833816210536231053701 - 1011 - 2021 - 3031 - 4041 - 5051 - 6061 - 7071 - 8081 - 9091 - 100100 +0500100015002000250030003500400045005000550060006500

Forward Cite Landscape

Load Citation

Maintenance Fees

Fee Large entity fee small entity fee micro entity fee due date
7.5 Year Payment $3600.00 $1800.00 $900.00 Aug 13, 2025
11.5 Year Payment $7400.00 $3700.00 $1850.00 Aug 13, 2029
