Wireless signal receiver with maximum likelihood detector
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 13, 2018
Issued Date -
N/A
app pub date -
Mar 21, 2017
filing date -
May 2, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

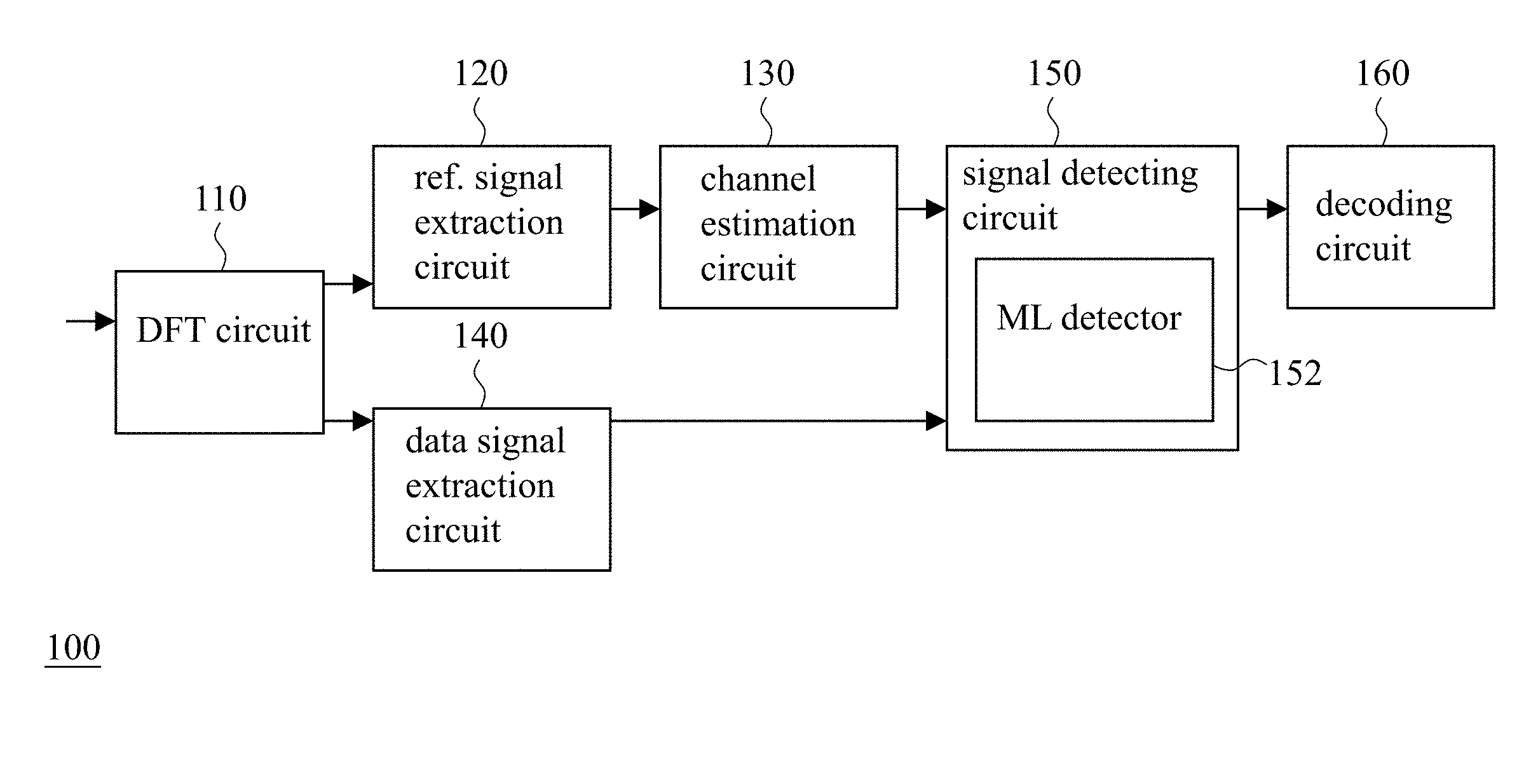

The present invention discloses an ML (Maximum Likelihood) detector. An embodiment of the ML detector comprises a search value selecting circuit and an ML detecting circuit. The search value selecting circuit is configured to select a first-layer search value. The ML detecting circuit is configured to carry out the following steps: selecting first-layer candidate values according to the first-layer search value, one of a reception signal and a derivative thereof, and one of a channel estimation signal and a derivative thereof, and adding one or more first-layer candidate value(s), if necessary; calculating second-layer candidate values according to all the above-mentioned first-layer candidate values, and adding one or more second-layer candidate value(s) and its/their corresponding first-layer candidate value(s), if necessary; and calculating log likelihood ratios according to the whole first-layer and second-layer candidate values.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- H04L Class
- 36365 Applications Filed
- 27259 Patents Issued To-Date
- 74.96 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H04L Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 13, 2029 |
