Adaptive self-tunable antenna system and method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 13, 2018
Issued Date -
N/A
app pub date -
Dec 9, 2013
filing date -
Dec 9, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

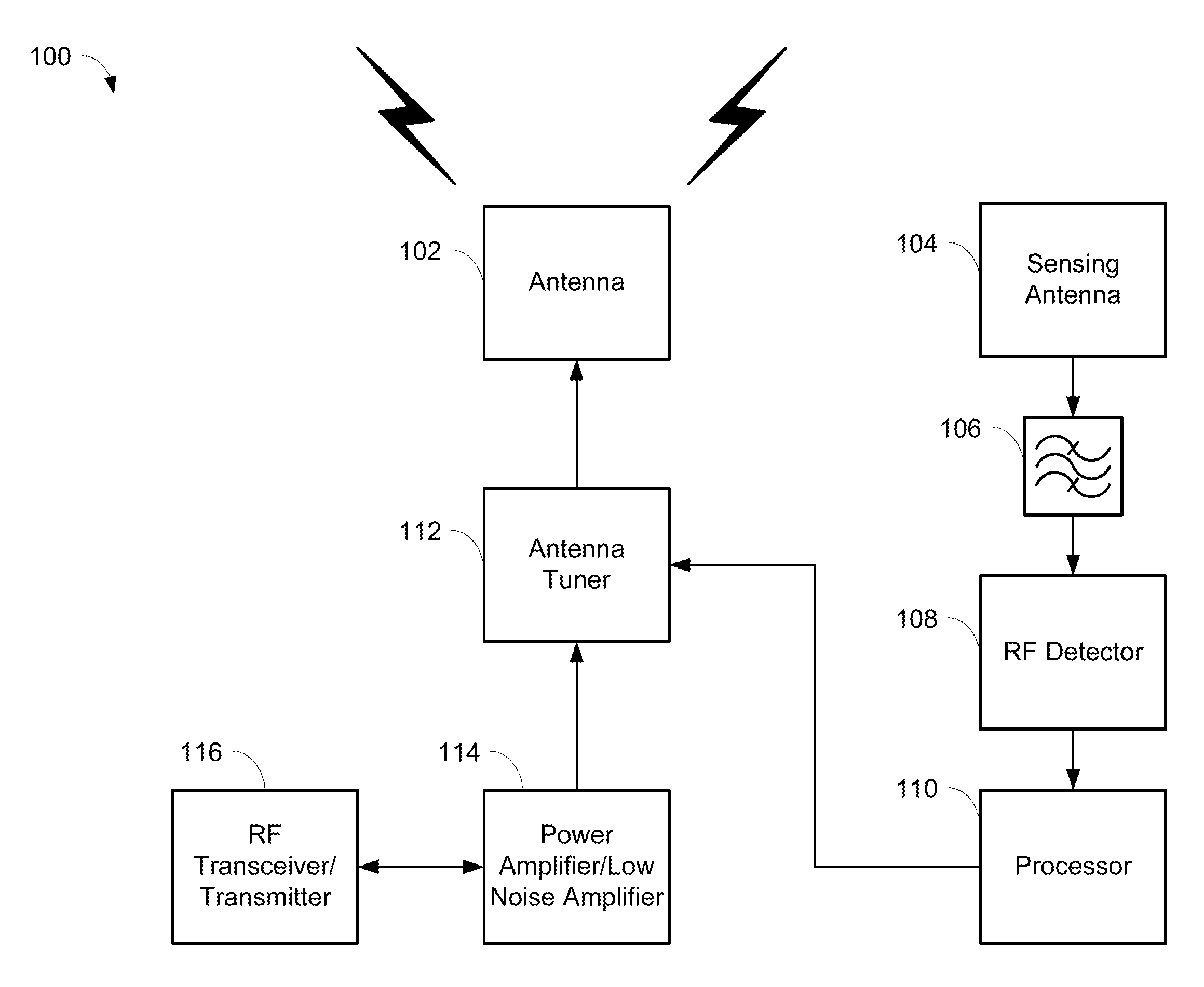

Adaptive self-tunable antenna systems and methods are provided including a closed-loop system for sensing near-field RF signals of transmitted RF signals and tuning an antenna or switching between multiple antennas, so that the strength of the transmitted RF signals is maximized. A sensing antenna detects the near-field RF signal, which is filtered and converted to an RF strength control signal that can be used to generate an antenna tuning control signal. An antenna tuner uses the antenna tuning control signal to keep the antenna in resonance by dynamically changing the electrical length of the antenna or switching between multiple antennas to maximize the strength of the radiated RF signal. Such antennas may be less prone to detuning due to interaction with human bodies or other objects. Dynamically matching the antennas to an RF power amplifier and low noise amplifier can improve stability, power efficiency, gain, noise figure, and receiver sensitivity.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- H04B Class
- 20.43 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 13, 2029 |
