Wide-band acoustically coupled thin-film BAW filter
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 13, 2018
Issued Date -
N/A
app pub date -
Oct 14, 2011
filing date -
Oct 14, 2010
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

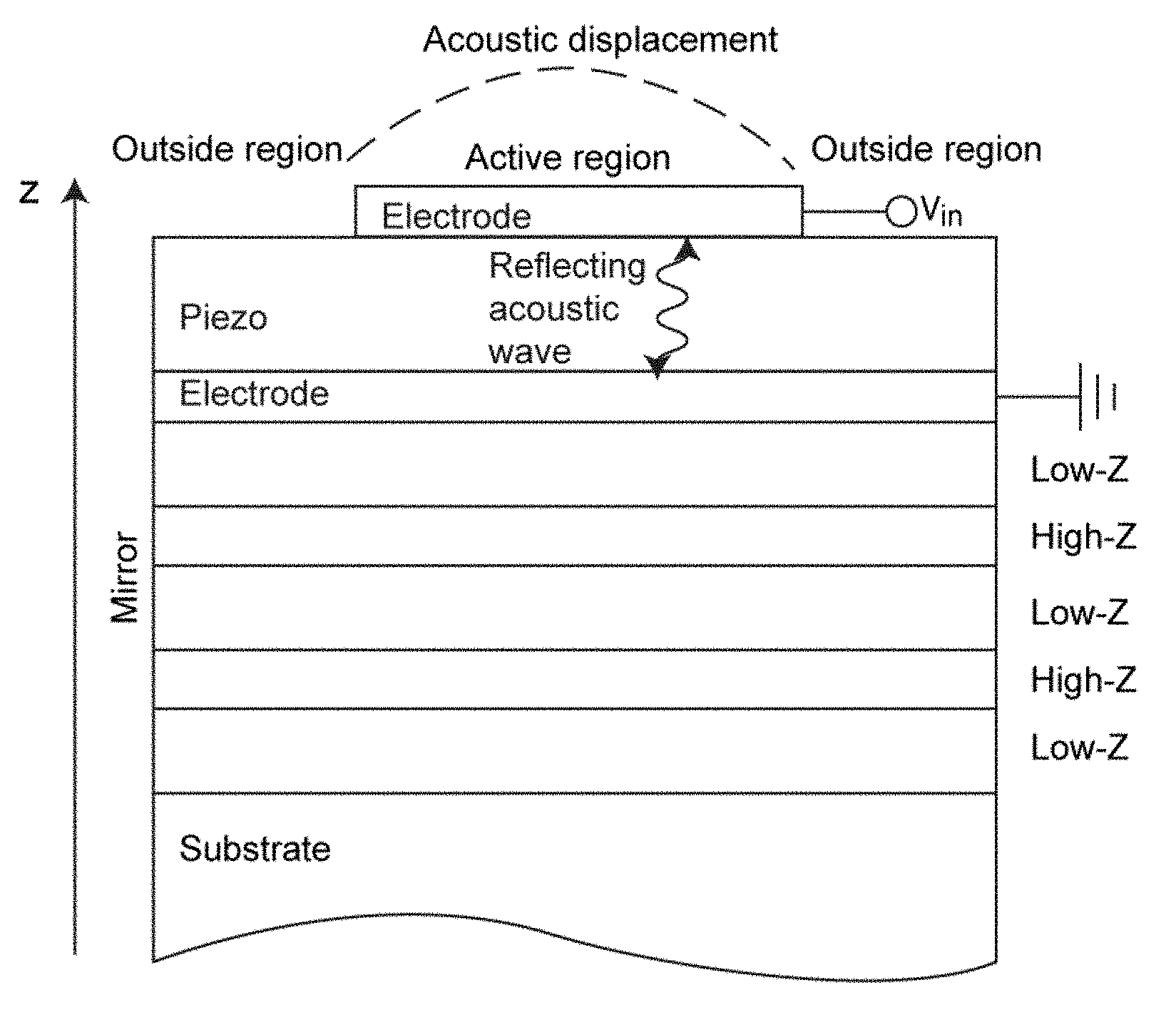

The invention relates to an acoustically coupled thin-film BAW filter, comprising a piezoelectric layer, an input-port on the piezoelectric layer changing electrical signal into an acoustic wave (SAW, BAW), and an output-port on the piezoelectric layer changing acoustic signal into electrical signal. In accordance with the invention the ports include electrodes positioned close to each other, and the filter is designed to operate in first order thickness-extensional TE1 mode.
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2011 Application Filing Year
- H03H Class
- 738 Applications Filed
- 549 Patents Issued To-Date
- 74.40 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 12 Citation Count
- H03H Class
- 90.87 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 13, 2029 |
