Roll-to-roll hybrid plasma modular coating system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 13, 2018
Issued Date -
N/A
app pub date -
Apr 13, 2016
filing date -
Aug 6, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

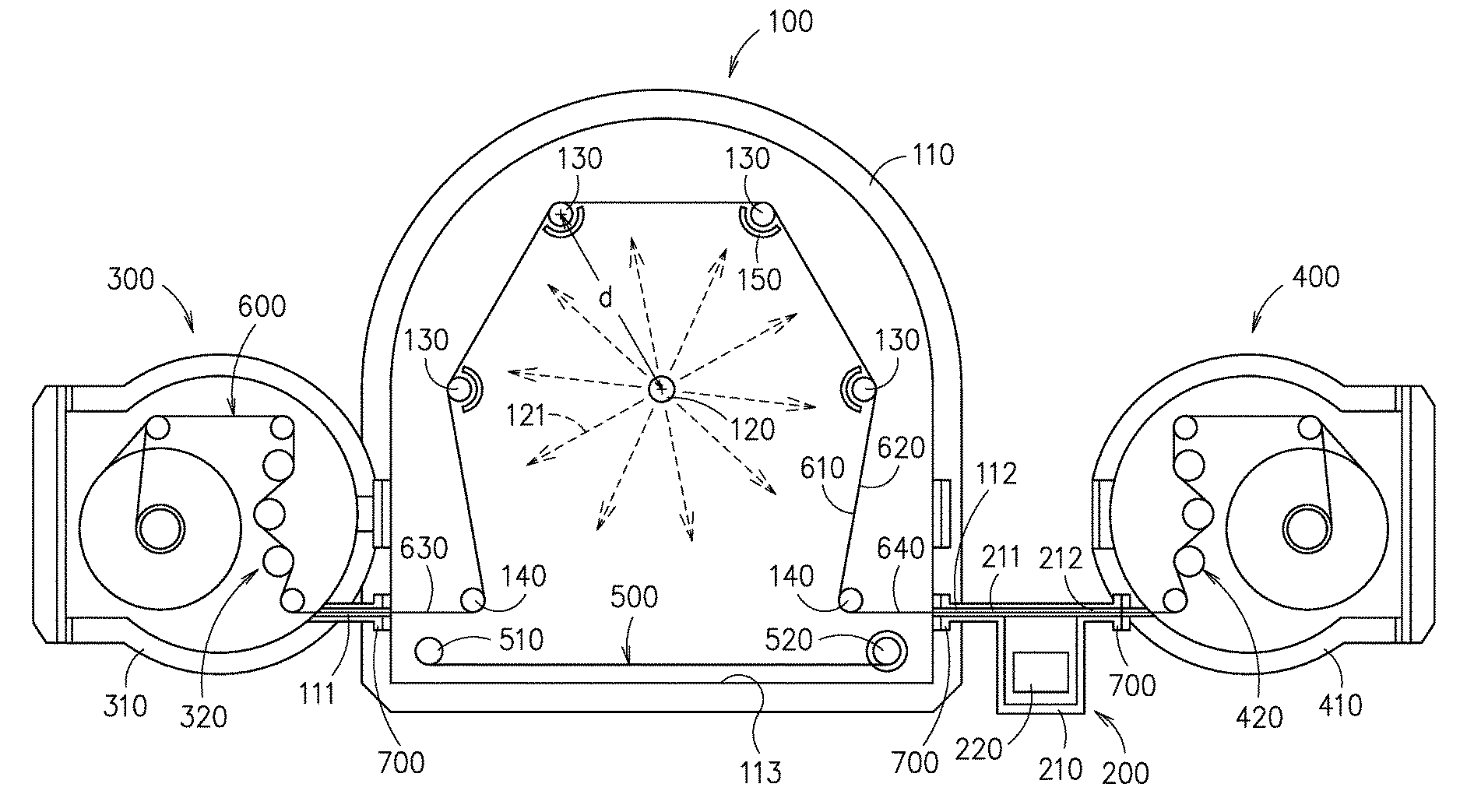

The present invention relates to a roll-to-roll hybrid plasma modular coating system, which comprises: at least one arc plasma processing unit, at least one magnetron sputtering plasma processing unit, a metallic film and at least one substrate feeding unit. Each of the arc plasma processing unit is formed with a first chamber and an arc plasma source. Each of the magnetron sputtering plasma processing unit is formed with a second chamber and at least one magnetron sputtering plasma source. The metallic film is disposed in the arc plasma processing unit to avoid chamber wall being deposited by the arc plasma source; There are at least one arc plasma processing unit, at least one magnetron sputtering plasma processing unit and at least one winding/unwinding unit connected in series to lay at least one thin layer by arc plasma deposition or by magnetron sputtering plasma onto substrate material.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- C23C Class
- 3247 Applications Filed
- 2111 Patents Issued To-Date
- 65.02 % Issued To-Date
