Electric wire structure and method for electromagnetic shielding of electric wire
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 13, 2018
Issued Date -
N/A
app pub date -
Feb 4, 2015
filing date -
Feb 18, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

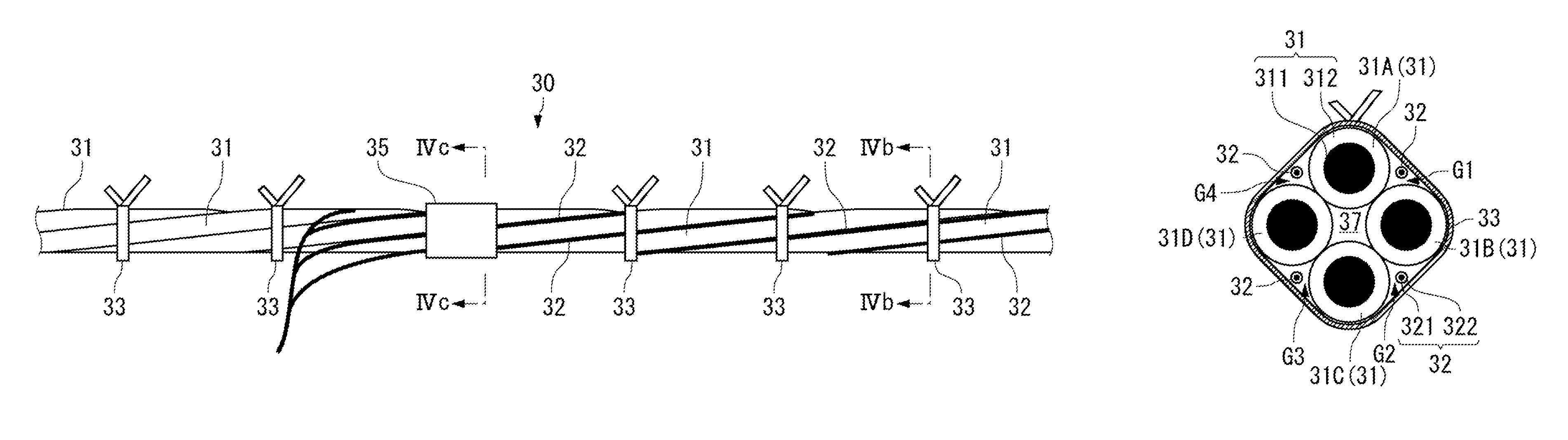

An electric wire structure keeps down the weight and improves the ease of routing, as well as allows an existing electric wire to be easily provided with measures against electromagnetic waves. The electric wire structure includes: a single or plurality of electric wires; a single or plurality of GND members which are disposed around the electric wires along the electric wires and are grounded at both ends; and a bundling member for directly bundling the electric wires and the GND members which are not covered integrally by a jacket.
