Systems and methods for optical frequency comb generation using a microring resonator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 13, 2018
Issued Date -
N/A
app pub date -
Jan 5, 2017
filing date -
Jan 5, 2017
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

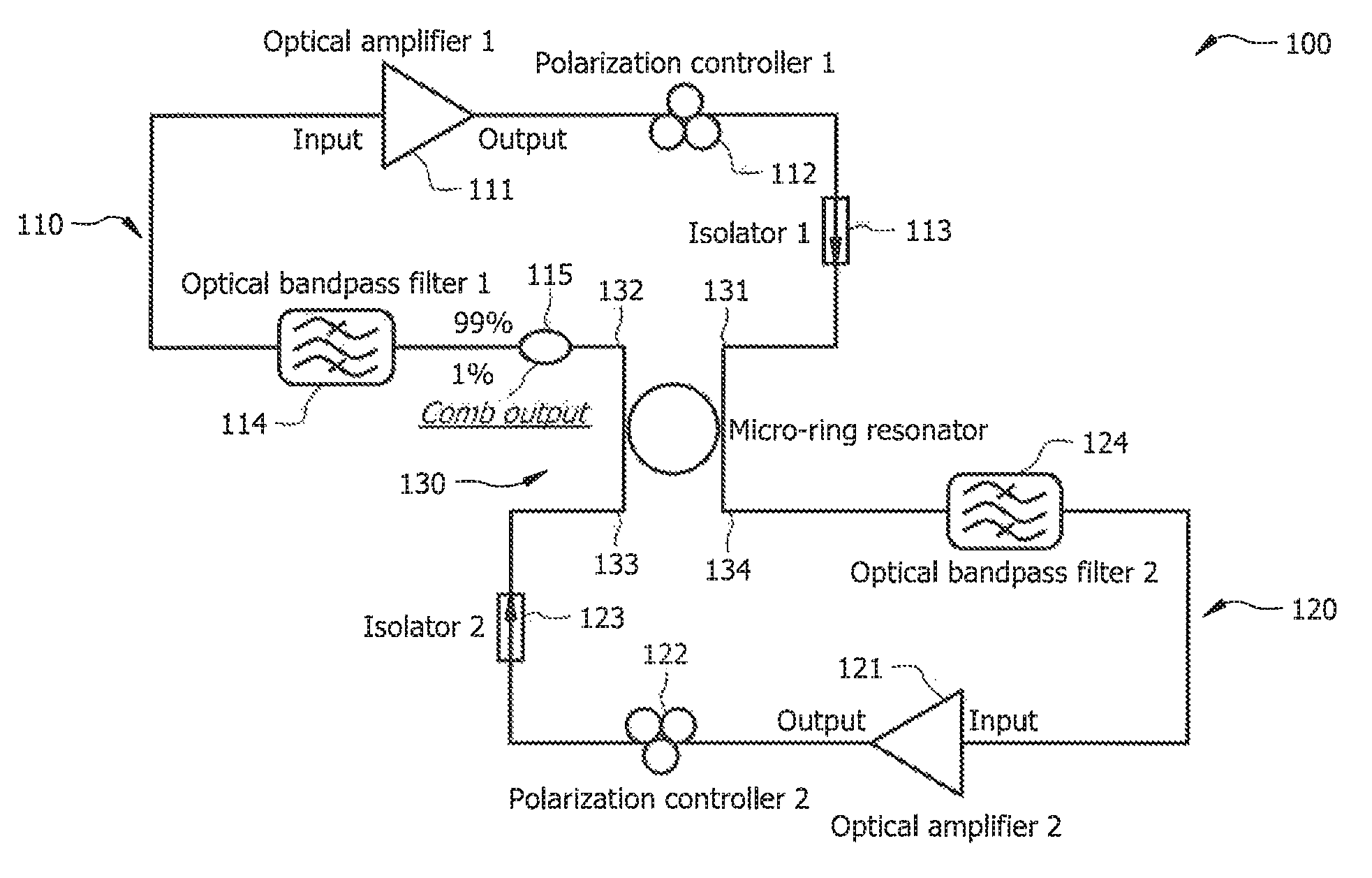

Systems and methods which provide for the generation of optical frequency combs using a microring resonator optical frequency comb generator configuration are described. A microring resonator optical frequency comb generator configuration of embodiments comprises a plurality of fiber loop laser cavities and at least one microring cavity are utilized. For example, an optical frequency comb generator may include a first fiber loop laser cavity, a second fiber loop laser cavity that is symmetrical with the first fiber loop laser cavity, and a microring resonator that is coupled into both of the first and second fiber loop laser cavities. The microring resonator may be configured to provide a high quality factor, Q, value. The microring resonator of embodiments works together with optical bandpass filters and amplifiers in the multiple fiber loops to make the generated optical frequency comb stable and flexible.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2017 Application Filing Year
- H01S Class
- 1389 Applications Filed
- 1119 Patents Issued To-Date
- 80.57 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- H01S Class
- 28.57 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 13, 2029 |
