Integratable planar waveguide type non-reciprocal polarization rotator
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 13, 2018
Issued Date -
N/A
app pub date -
Apr 20, 2016
filing date -
Apr 21, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

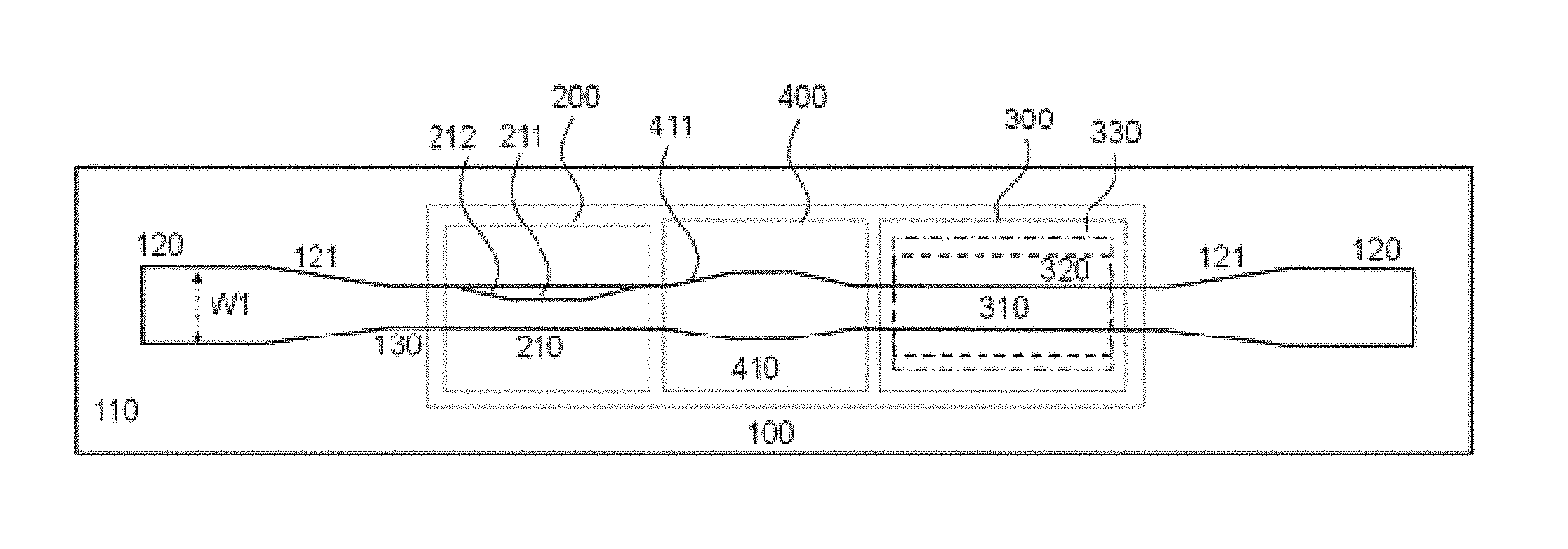

The present invention describes a planar waveguide-type integrated non-reciprocal polarization rotator. According to an embodiment of the present invention, the planar waveguide-type non-reciprocal 90° polarization rotator includes optical waveguide-type input and output ports, a reciprocal 45° polarization rotator based on an asymmetric optical waveguide structure, a non-reciprocal 45° polarization rotator based on an optical waveguide with a clad layer of magneto-optic material, and a phase compensator placed between the above reciprocal 45° polarization rotator and non-reciprocal 45° polarization rotator compensating the phase difference between two polarization modes.
