Image pickup lens
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 13, 2018
Issued Date -
N/A
app pub date -
Apr 14, 2016
filing date -
Apr 19, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

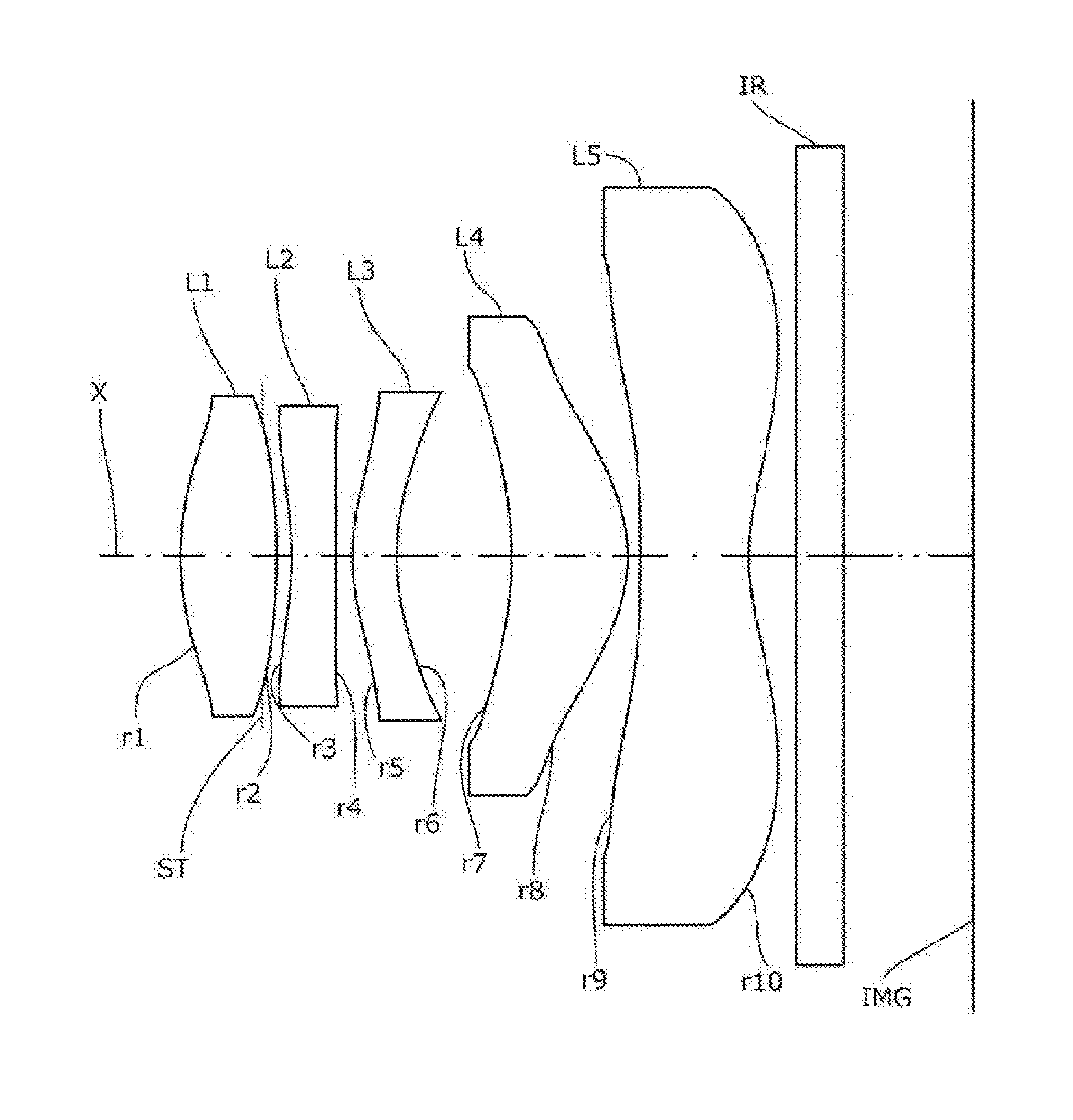

An image pickup lens includes a first lens with positive refractive power having a convex object side surface, an aperture stop, a second lens with negative refractive power having a convex image side surface, a third lens with positive refractive power having a concave image side surface, a fourth lens with positive refractive power having a convex image side surface, and a fifth lens with negative refractive power as a double-sided aspheric lens having a concave image side surface near the optical axis;
- wherein the first lens and the second lens satisfy following conditional expressions (1) and (2);50<ν1<85 (1)20<ν2<35 (2)where ν1 represents an Abbe number of the first lens, and ν2 represents an Abbe number of the second lens, and where the second lens satisfies a following conditional expression (3);1.55
First Claim
Other Claims data not available
Family
Loading Family data...
International Classification(s)
- 2016 Application Filing Year
- G02B Class
- 10130 Applications Filed
- 7990 Patents Issued To-Date
- 78.88 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G02B Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 13, 2029 |
