Method and system for pneumatic control for vibrator source element
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 13, 2018
Issued Date -
N/A
app pub date -
Nov 21, 2016
filing date -
Feb 22, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

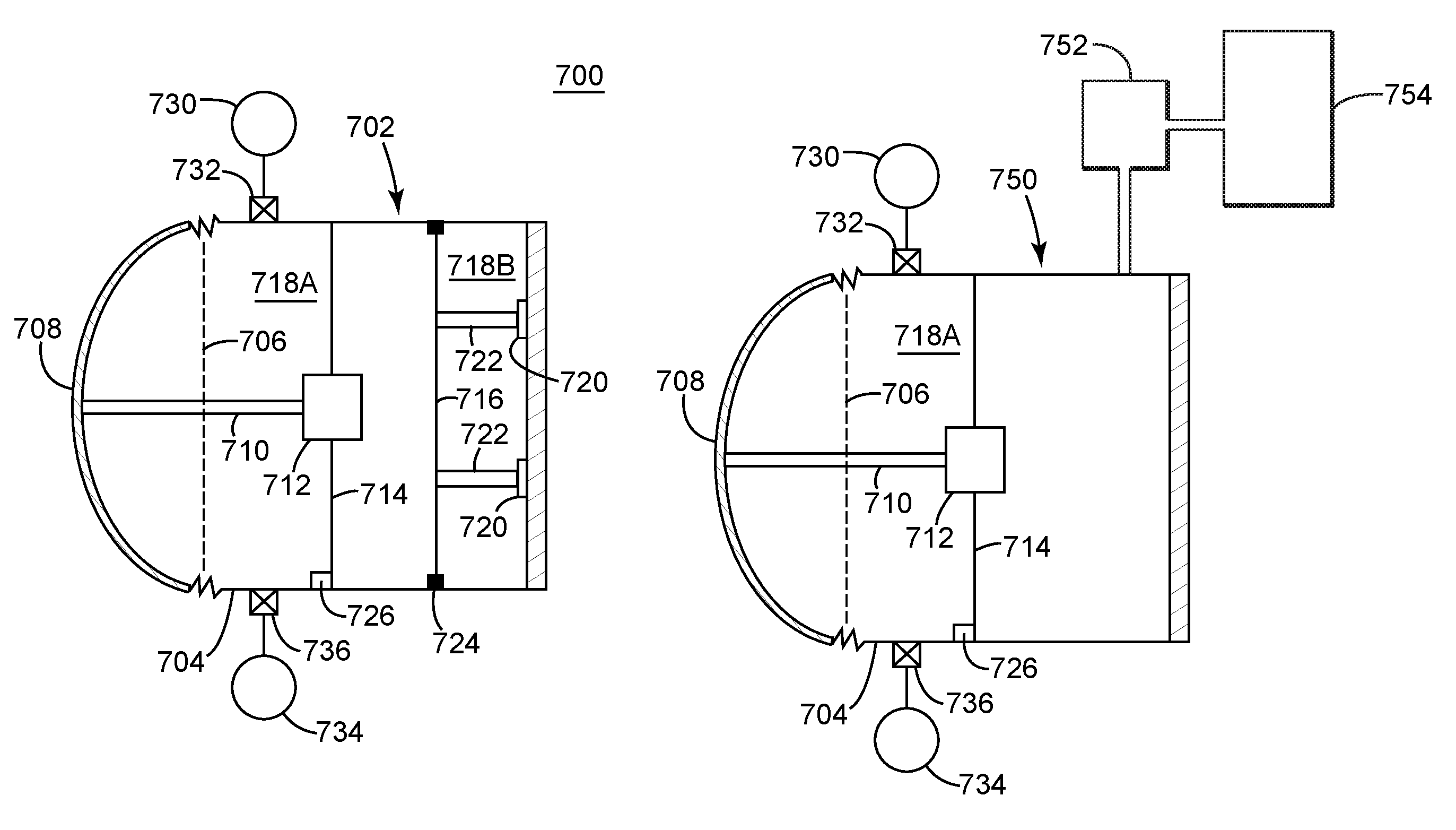

Method, source array and source element that generate seismic waves. The source element includes an enclosure having an opening covered by a piston; a local supply accumulator fluidly communicating with an interior of the enclosure, a pressure of the fluid inside the local supply accumulator being larger than a pressure of the fluid inside the enclosure; a local supply valve located between the local supply accumulator and the enclosure and configured to control a flow of the fluid from the local supply accumulator to the interior of the enclosure; and a controller configured to control the local supply valve such that the pressure inside the enclosure does not fall below a first preset value based upon an ambient pressure of the enclosure while seismic waves are generated.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G01V Class
- 1604 Applications Filed
- 1227 Patents Issued To-Date
- 76.50 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01V Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 13, 2029 |
