Dual composite light field device

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9891077
SERIAL NO

15159518

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

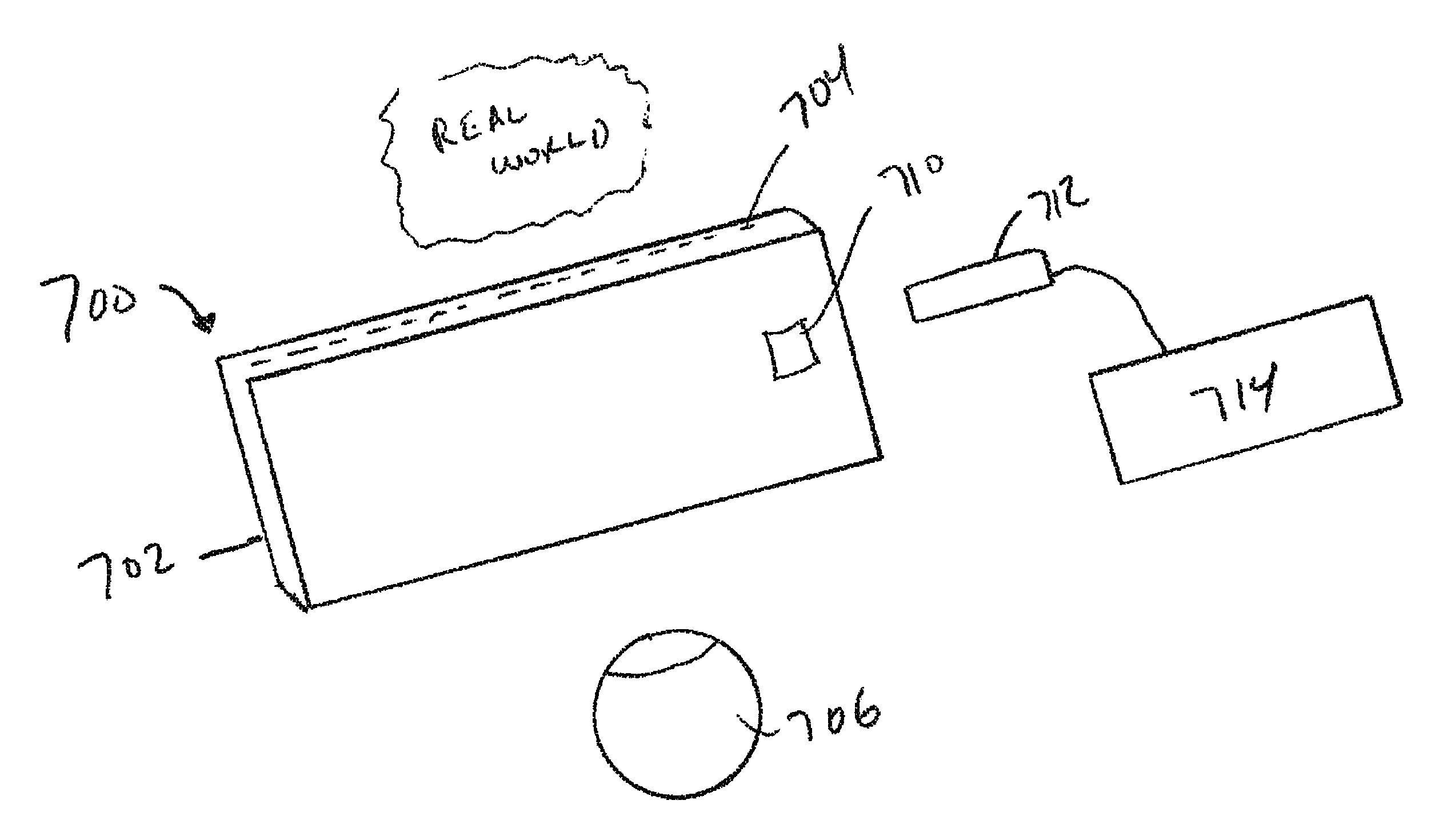

An apparatus is disclosed for capturing image information. The apparatus includes a waveguide having opposed planar input and output faces. A diffractive optical element (DOE) is formed across the waveguide. The DOE is configured to couple a portion of the light passing through the waveguide into the waveguide. The light coupled into the waveguide is directed via total internal reflection to an exit location on the waveguide. The apparatus further includes a light sensor having an input positioned adjacent the exit location of the waveguide to capture light exiting therefrom and generate output signals corresponding thereto. A processor determines the angle and position of the coupled light with respect to the input face of the waveguide based on the output signals.
