User control device with hinged mounting plate
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 13, 2018
Issued Date -
N/A
app pub date -
May 4, 2016
filing date -
May 4, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

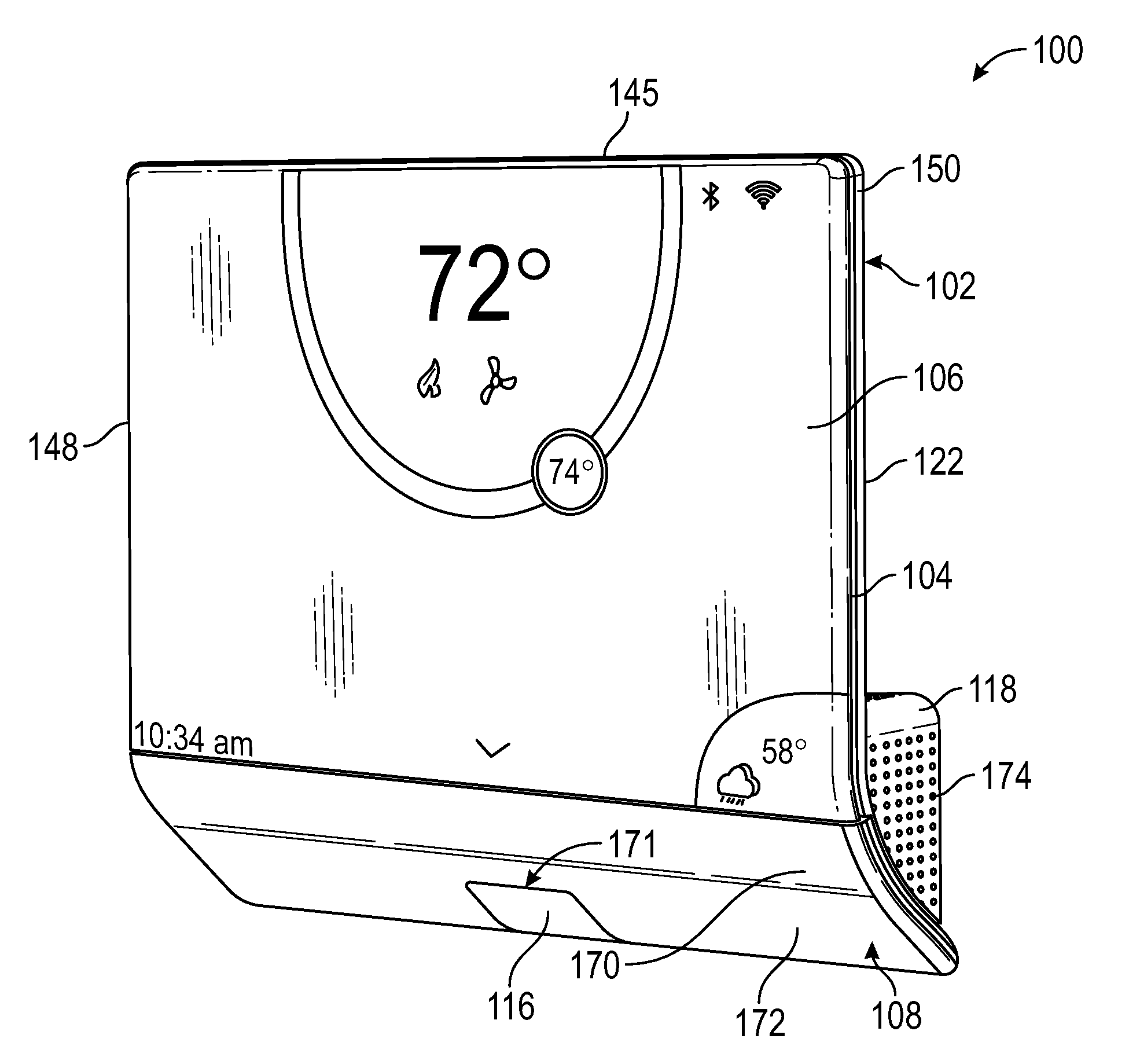

A thermostat includes a housing, a touch-sensitive display configured to display visual media and receive user inputs, processing electronics configured to operate the touch-sensitive display, and a mounting plate. The housing includes a base that has walls that define an internal volume. The housing also includes a display mount cantilevered upward from the top wall. The display mount includes a mounting surface perpendicular to the top wall of the base. The housing also includes a touch-sensitive display configured to display visual media and receive user inputs. The touch-sensitive display is attached to the mounting surface of the display mount. The processing electronics are positioned within the interior volume of the base. The mounting plate is configured for attaching the housing to a mounting surface. The mounting plate is attached to the bottom wall by a hinge so that the housing may pivot between an open position and a closed position.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 20 Citation Count
- H05B Class
- 91.12 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 13, 2029 |
