Microwave plasma reactors
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 13, 2018
Issued Date -
N/A
app pub date -
May 11, 2012
filing date -
Jun 16, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

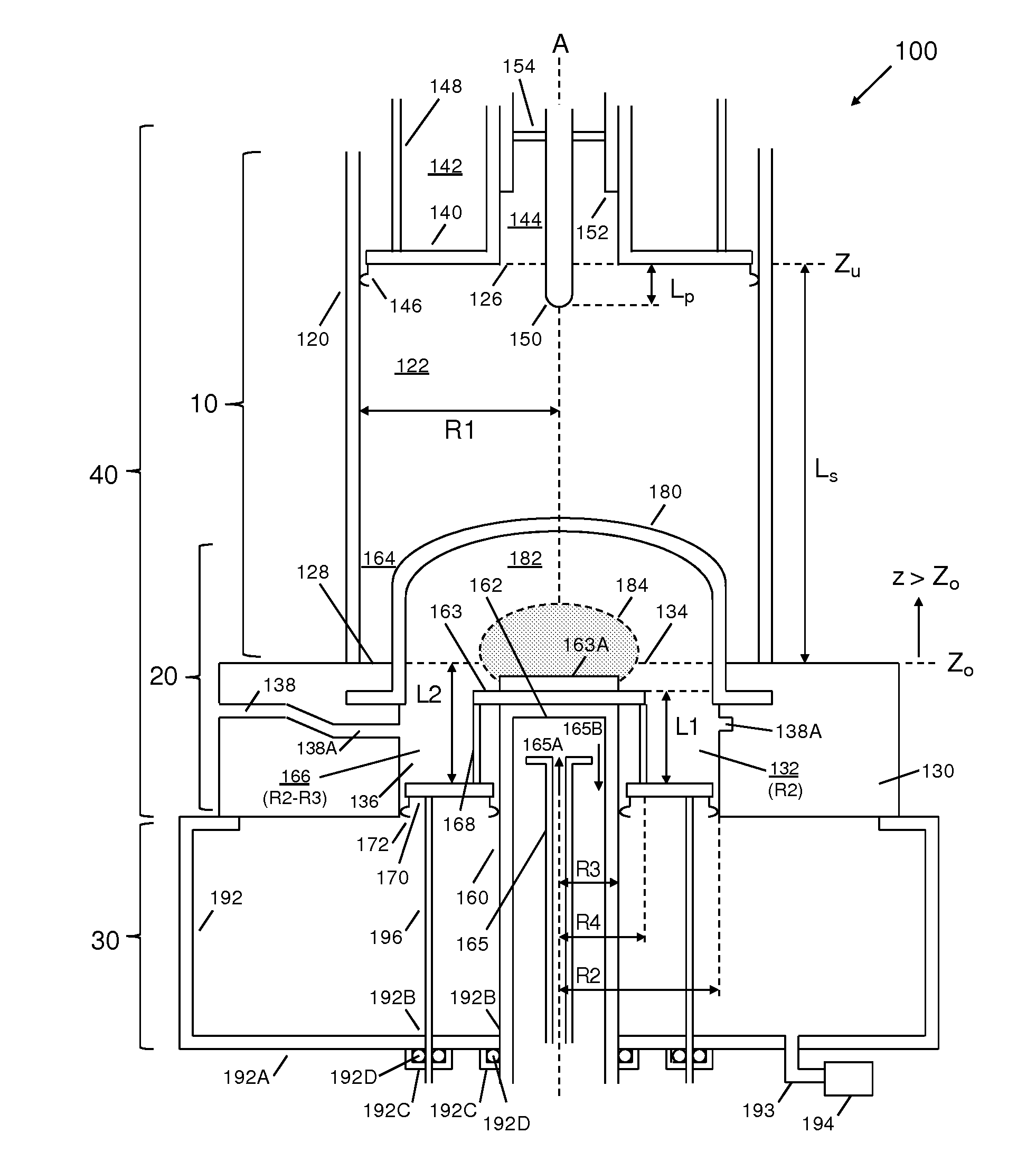

Microwave plasma assisted reactors, for example chemical vapor deposition (MPCVD) reactors, are disclosed. The disclosed reactors operate at high pressures (>180-320 Torr) and high power densities (>150 W/cm3), and thereby enable high deposition rate CVD processes that rapidly deposit materials. In particular, reactor design examples are described that, when operating in the 180-320 Torr pressure regime, rapidly CVD synthesize high quality polycrystalline (PCD) and single crystal diamond (SCD). The improved reactors include a radial contraction in the vicinity of the plasma chamber (and optionally a combined expansion in the vicinity of the electromagnetic wave source, followed by the contraction) in the main microwave chamber as electromagnetic energy propagates from an electromagnetic wave source to a plasma/deposition chamber.
