Method to exchange printing substrate rolls in a printer
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 13, 2018
Issued Date -
N/A
app pub date -
Apr 4, 2016
filing date -
Apr 8, 2015
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

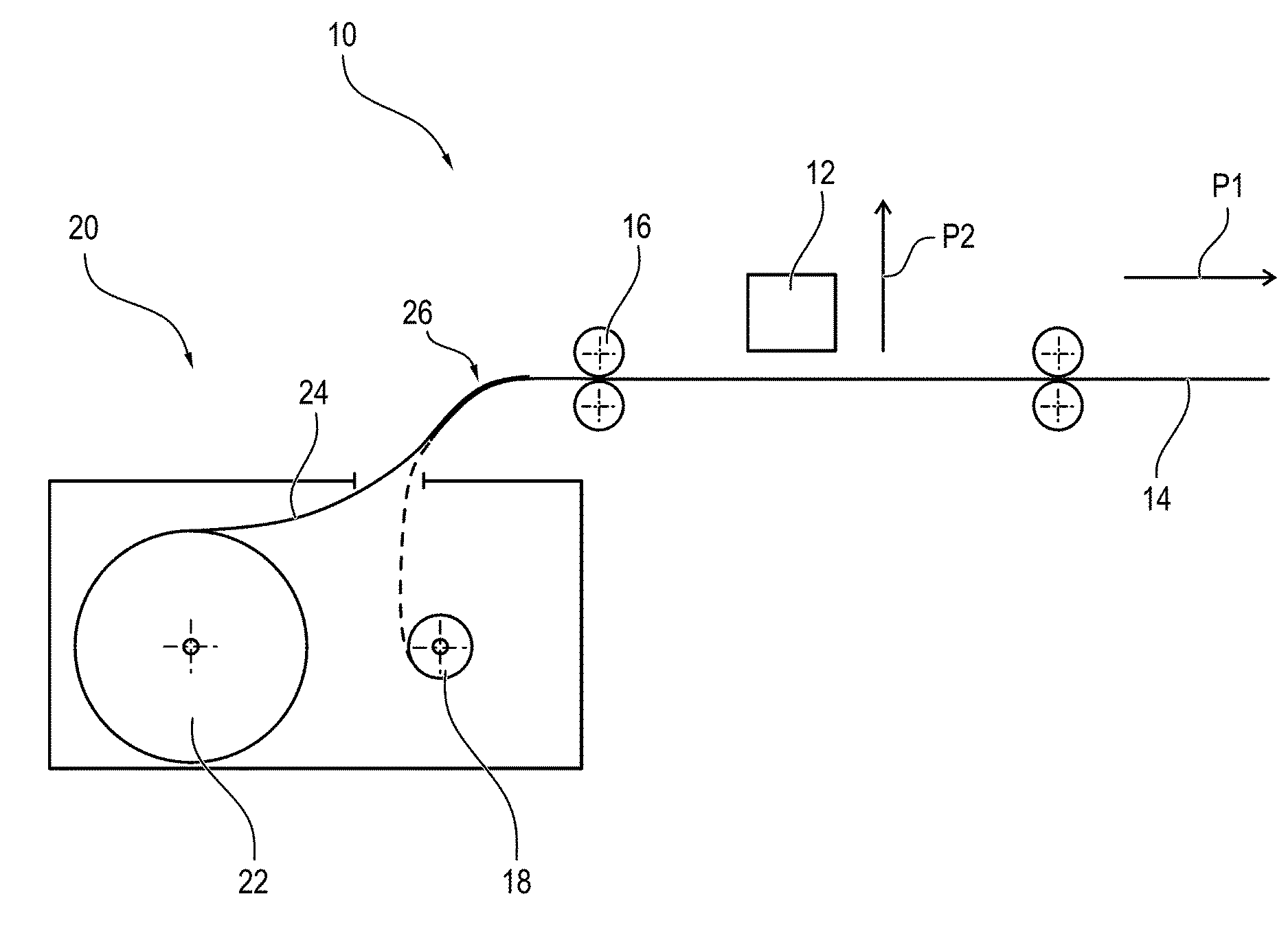

Methods to exchange printing substrate rolls in a printer are described. In an exchange method, ink is printed to a first printing substrate web being unwound from a first printing substrate roll. The first printing substrate web is exchanged with a second printing substrate web being unwound from a second printing substrate roll. A transition region of the first and the second printing substrate webs is printed to during the exchange of the first and the second printing substrate webs. The transition region can be formed by gluing the second and the first printing substrate webs atop one another. A predetermined pattern can be printed onto the transition region during the exchange of the printing substrate rolls. The predetermined pattern can be chosen such that all nozzles of at least one print head are used for printing.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B41J Class
- 2975 Applications Filed
- 2517 Patents Issued To-Date
- 84.61 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B41J Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 13, 2029 |
