Method and apparatus for water jet cutting
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 13, 2018
Issued Date -
N/A
app pub date -
Feb 20, 2015
filing date -
Mar 19, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

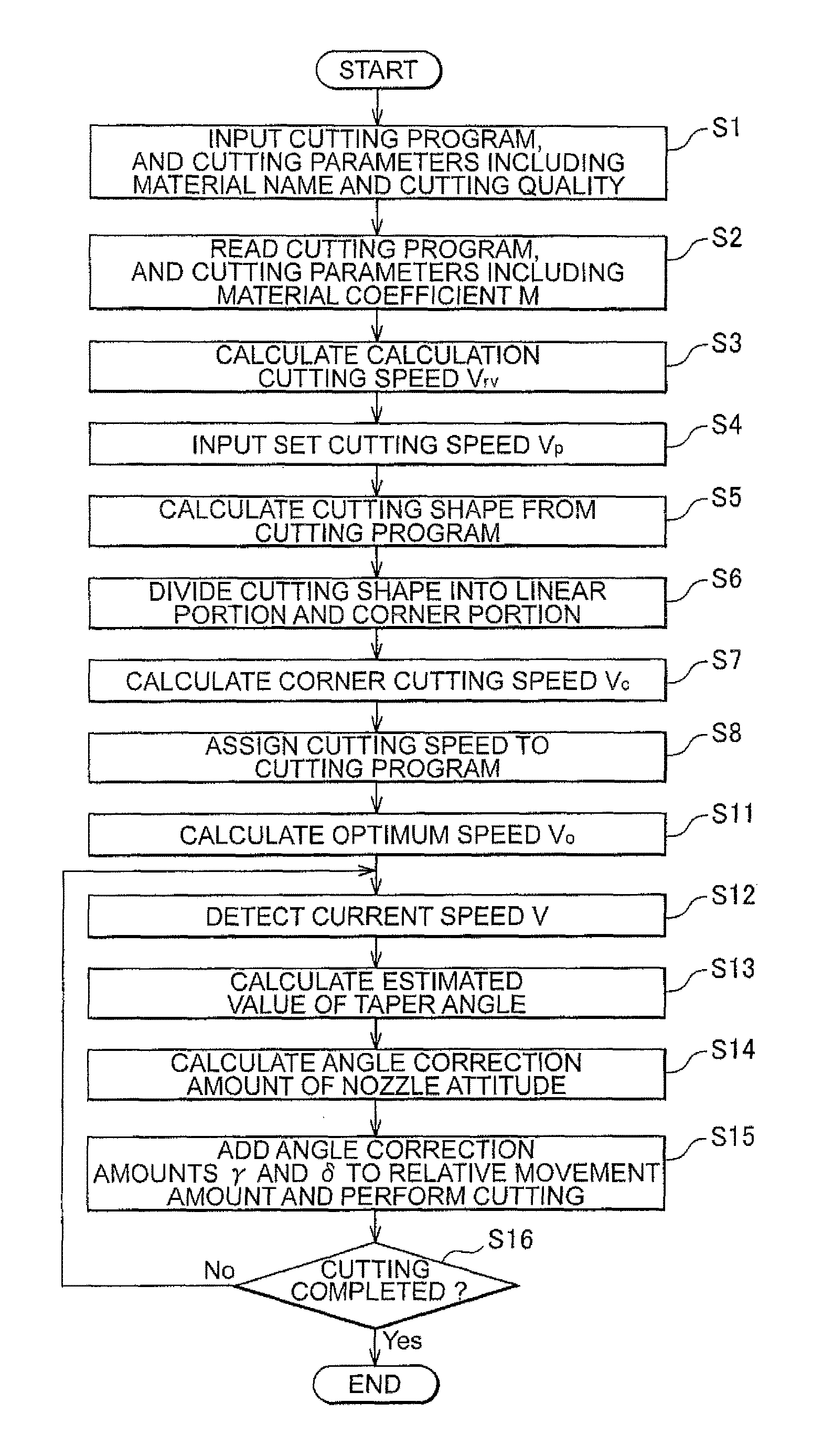

To control cutting process with cutting quality to obtain product without any uncut portion on a corner portion, and to respond to a change in cutting speed. Water jet cutting performed by: inputting a cutting program, set cutting speed, cutting parameters; calculating cutting speed matching the cutting quality; calculating cutting shape from the cutting program and dividing the cutting shape into a linear portion and a corner portion; calculating a corner cutting speed for the corner portion on the basis of a shape of the corner portion within range from the calculation cutting speed to the set cutting speed, set cutting speed equal to or higher than the calculation cutting speed; set cutting speed and the corner cutting speed to the linear portion and the corner portion, respectively, in the cutting program; moving the nozzle relative to the workpiece on the basis of the cutting program assigned with cutting speeds.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B24C Class
- 124 Applications Filed
- 91 Patents Issued To-Date
- 73.39 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B24C Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 13, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 13, 2029 |
