Suspended upper internals with tie rod couplings for compact nuclear reactor
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 6, 2018
Issued Date -
N/A
app pub date -
Apr 11, 2013
filing date -
Apr 17, 2012
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

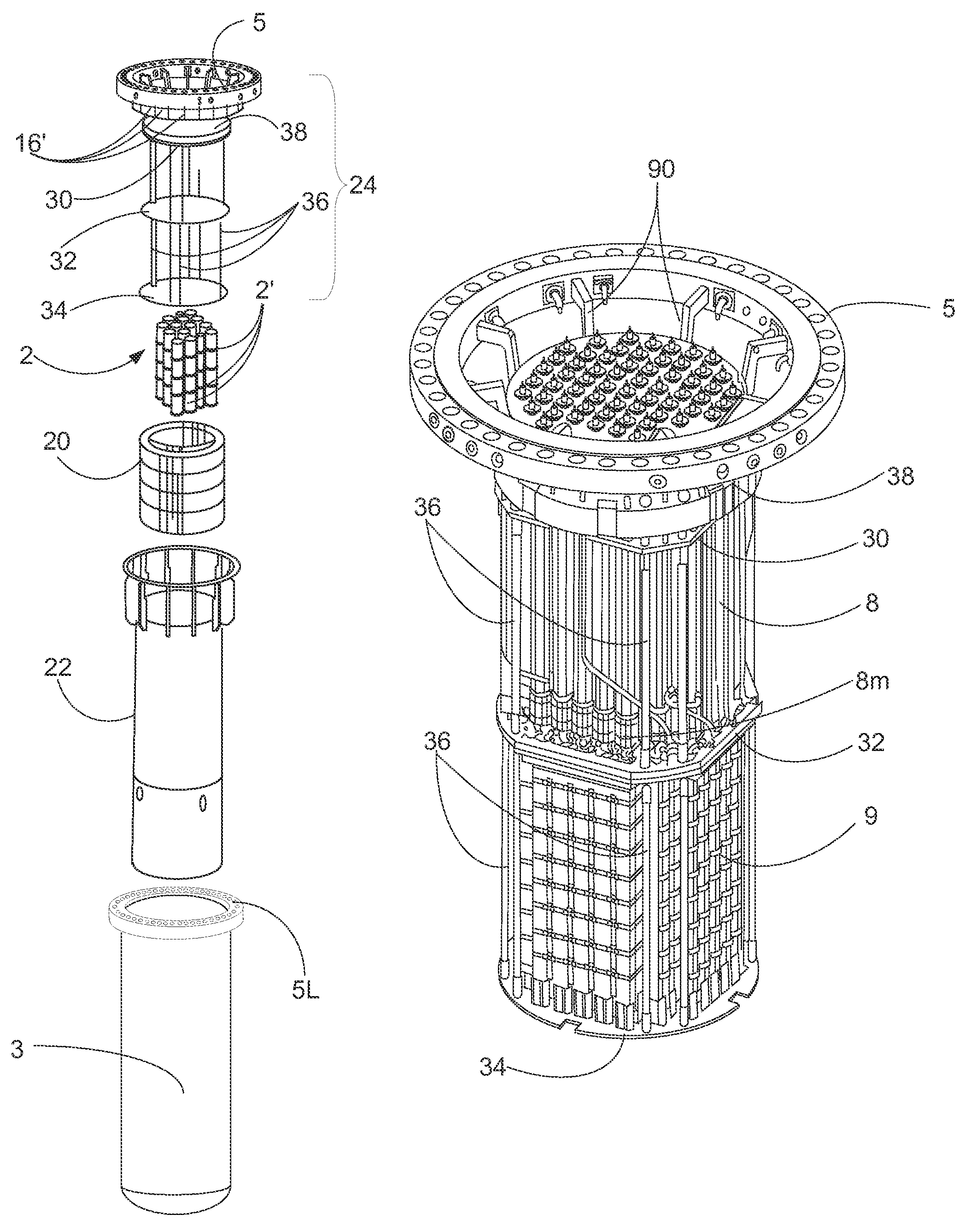

A suspended basket includes a plurality of plates, tie rods, and adjustable length threaded tie rod couplings connecting threaded ends of the tie rods with threaded features of the plates. Control rod drive mechanisms (CRDMs) with CRDM motors are mounted in the suspended basket, which is suspended in a pressure vessel above a nuclear reactor core to control insertion of control rods into the reactor core. In one embodiment each adjustable length threaded tie rod coupling is a turnbuckle coupling that includes a sleeve threaded onto the threaded end of the tie rod and onto the threaded feature of the plate, and the sleeve is rotatable to adjust the position of the tie rod respective to the plate. Guide frames may be mounted in the suspended basket between the CRDMs and the nuclear reactor core to guide portions of the control rods withdrawn from the nuclear reactor core.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G21C Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 6, 2029 |
