Touch panel device and method of correcting coordinates on touch panel
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 6, 2018
Issued Date -
N/A
app pub date -
Sep 15, 2015
filing date -
Dec 2, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

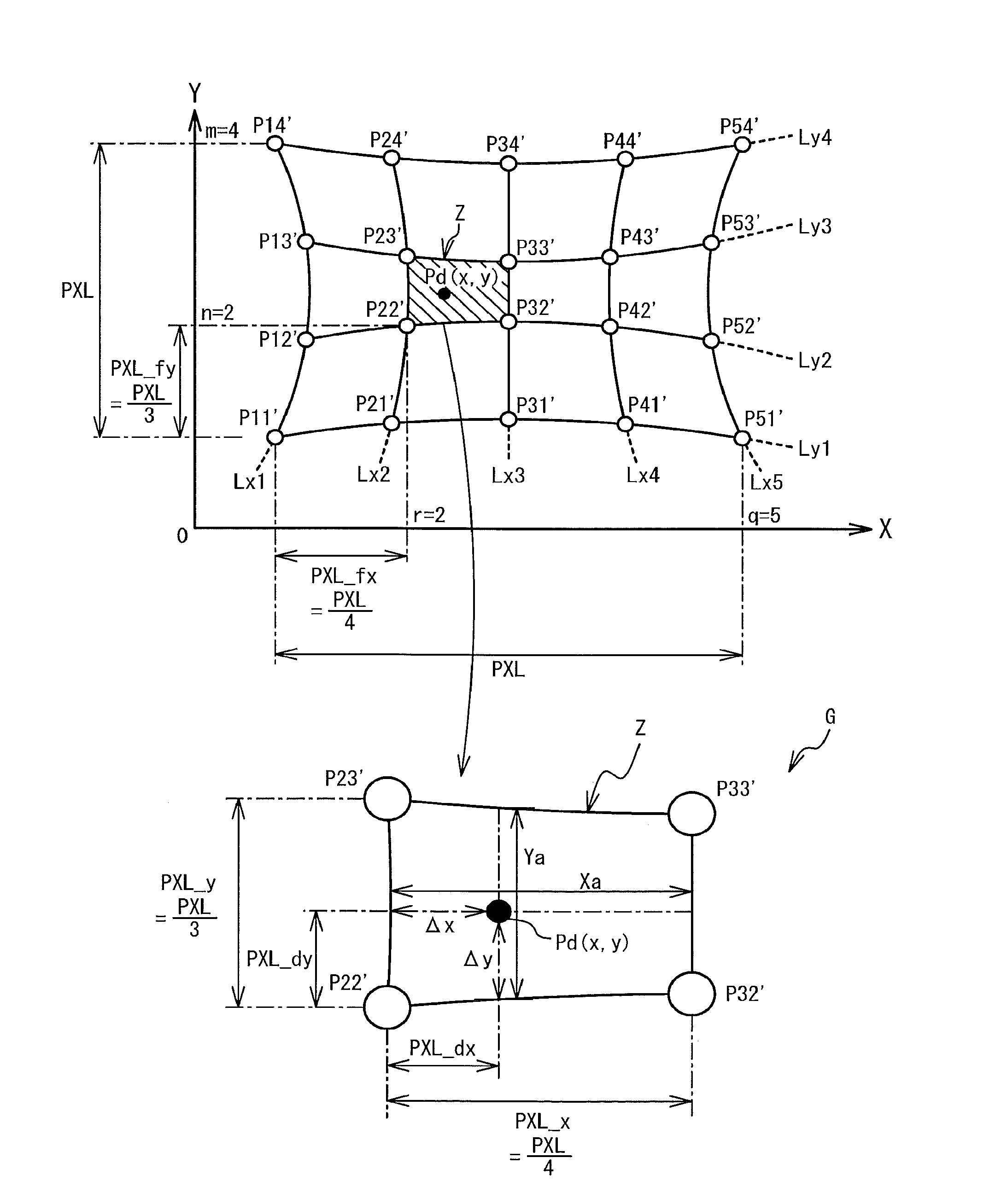

A touch panel device includes: a detection unit that detects coordinates of a pressed point on an input surface of a touch panel; and a correction unit that corrects the coordinates detected by the detection unit to obtain corrected coordinates, wherein the correction unit approximates, when a predetermined number of reference points arranged on the input surface are pressed, curves passing through coordinates of the reference points by second order or higher order polynomial equations, specifies, when an arbitrary point on the input surface is pressed, a region including coordinates of the arbitrary point from regions obtained by dividing the input surface by the curves, calculates distances from the coordinates of the arbitrary point to curves that define the specified region among the curves with the second order or higher order polynomial equations, and calculates the corrected coordinates based on a location of the specified region and the distances.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G06F Class
- 57200 Applications Filed
- 45873 Patents Issued To-Date
- 80.20 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G06F Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 6, 2029 |
