Memory storage device and power management method thereof
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Feb 6, 2018
Issued Date -
N/A
app pub date -
Jul 15, 2016
filing date -
May 13, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

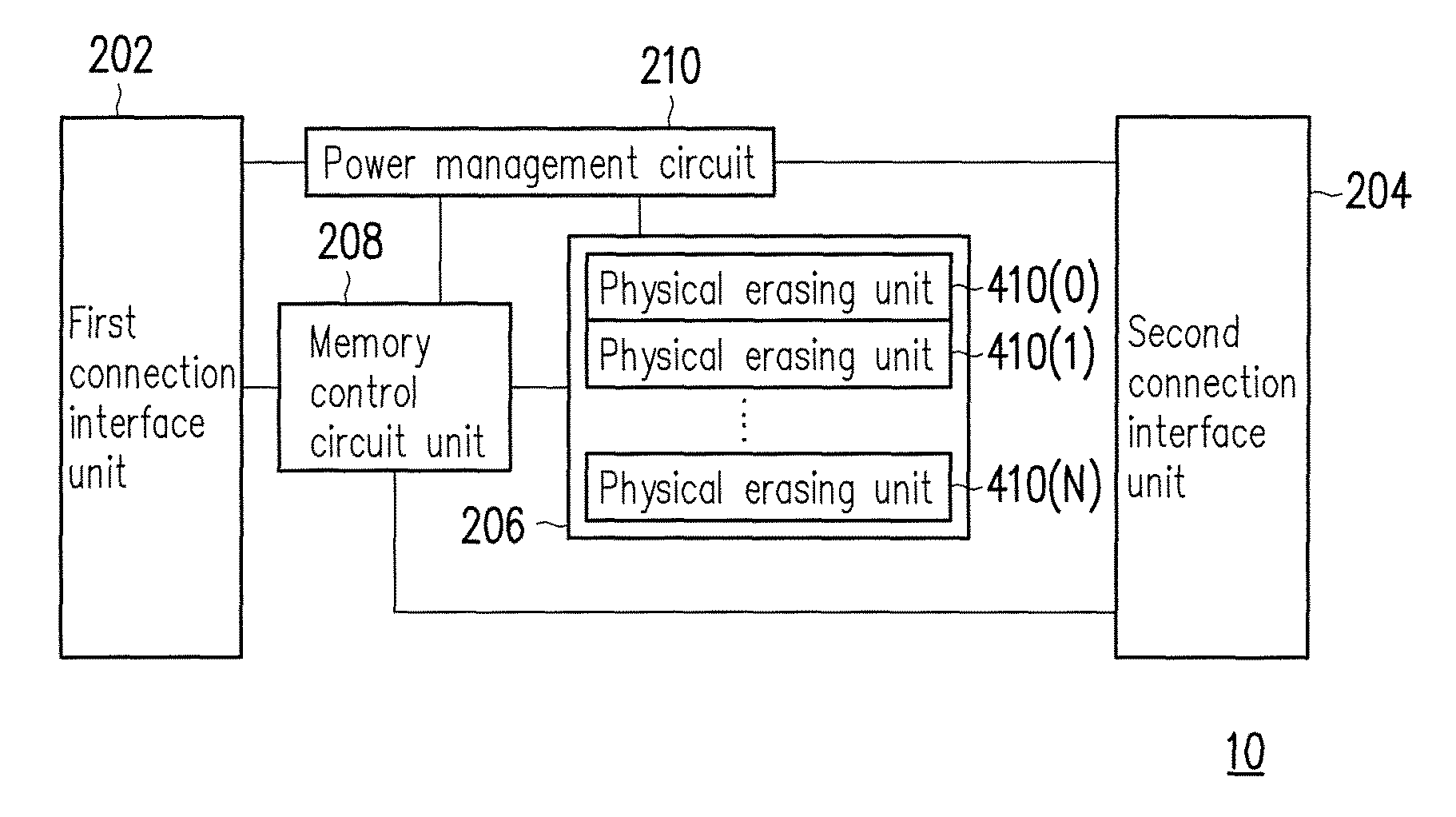

A memory storage device having a rewritable non-volatile memory module, a first connection interface unit, a second connection interface unit, a power management circuit and a memory control circuit unit is provided. When an external power supply device is electrically connected to the second connection interface unit, the power management circuit receives a second power supply voltage from the external power supply device via the second connection interface unit, supplies an operation voltage to the rewritable non-volatile memory module and the memory control circuit unit and supplies the second power supply voltage to a host device. When the external power supply device is electrically disconnected with the second connection interface unit, the power management circuit receives a first power supply voltage from the host device via the first connection interface unit and supplies the operation voltage to the memory control circuit unit and the rewritable non-volatile memory module.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- G06F Class
- 60255 Applications Filed
- 46180 Patents Issued To-Date
- 76.65 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- G06F Class
- 20.77 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Aug 6, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Aug 6, 2029 |
